2Look4 - Trimless
Trimless




General

Division: Architectural


Series: 2Look4


Subseries: 2Look4 160 Closed System


Mounting Type: Trimless


Mounting Location: Ceiling


Subcategory: Profile


Brand: Prolicht




Physical

Ceiling Thickness (mm): 12.5


Ceiling Thickness (in): 1/2


Installation Requirement: Suitable for only 12.5mm (1/2") drywall thickness


Fixture Finish: SSR / BLV / CRW / CRY / HAB / LAG / UFT / ITH / RUA / RUR / MIC / FTG / MYG / TWT / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / GUM / CHC / COM / ANB / JAG
see color chart below


Fixture Material: Anodized Aluminum




Electrical

Lamp Type: LED


Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)


Driver Type: Constant Current - Universal


Input Voltage (V): 120 / 277




LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000


Lamp Life (hrs): 50000


Upon Request: RGB-W Tunable White Special Color Temperature Special LED




Optical

Upon Request: Special Beam Angles




Ratings and Certifications

Certified By: Certified for North American Standards


IP rating: IP20






Base Model Number: L32L4160-TRI-SYS


Series Description

2Look4 is a cutting-edge series of trimless systems designed for seamless architectural flow offering a variety of luminaires and integrations to provide consistent aesthetics and solutions for complex projects. The profiles can run across walls and ceilings, creating three-dimensional continuous lines of light emphasizing the geometry of the room and maintaining a minimalist, elegant look. The range includes visible slots of 20, 25, 50, 80, 130 or 160 mm, offering an incredible variety of architectural solutions. All channels use either track-mounted visible or hidden spots, which can be mounted on a 48V magnet track (MAGTRACK), a 120V track or with an easy lock PLUG-system. They ensure tool-free mounting or repositioning and offer architects amazing freedom. Revolutionizing technologies and miniaturization of the electronics allow very slim slots with DALI dimmable modules. The 2Look4 sharp edge minimizes the conspicuousness of the light source: light becomes key rather than the light fixture. The 2Look4 160 creates a smart combination of lighting with seamless Bioniq light fittings. Additionally, non-lighting components can be integrated with the system, such as audio and air conditioning. 2Look4 is the ultimate architectural flexibility coupled with seamless elegance and sophisticated technology.

Product Components to be ordered separately

Image SKU Description Downloads

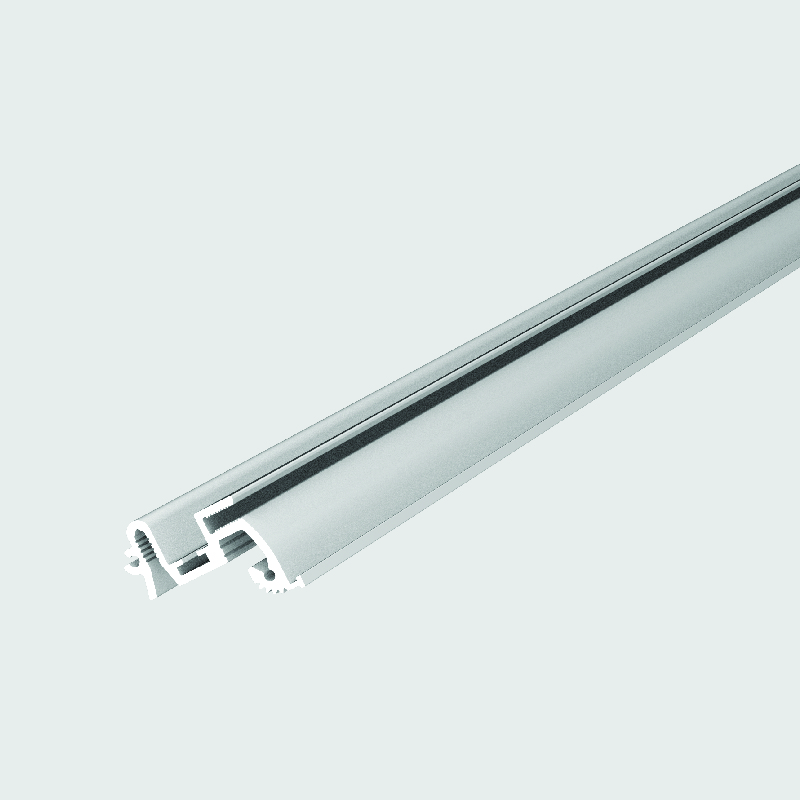

2Look4 by Prolicht – 39 3/8″ x 1 1/4″ ,  offers LED lighting solutions | Zaneen Architectural L3657900 2Look4 160 Closed System - Aluminum Profile Per Meter - Max 3,000mm / 118 1/8"
Bioniq by Prolicht – 3 3/4″ x 4 7/16″ , Downlight offers LED lighting solutions | Zaneen Architectural L38477- 2Look4Light 160 System - Bioniq Spot - 95mm / 3 3/4" - 14.5W LED - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 40° / 60°
Bioniq by Prolicht – 4 15/16″ x 5 3/8″ , Downlight offers LED lighting solutions | Zaneen Architectural L38480- 2Look4Light System - Bioniq Spot - 125mm / 4 15/16" - 28.6W LED - 2700K / 3000K / 3500K / 4000K - Reflectors 20° / 25° / 40°
2Look4 by Prolicht – 39 3/8″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38534- 2LOOK4 160 CLOSED - Channel per Meter with Cuts of choice - Max 3,000mm / 118 1/8"
2Look4 by Prolicht – 47 1/4″ x 1/2″ , Profile offers LED lighting solutions | Zaneen Architectural L38535- 2LOOK4 160 CLOSED - 1,200mm / 47 1/4" - Blank Channel without Holes
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38536- 2LOOK4 160 CLOSED - Channel 1 Hole - 1200mm / 47 1/4" for Spot - 1 x 95mm / 3 3/4" Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38537- 2LOOK4 160 CLOSED - Channel 1 Hole - 1,200mm / 47 1/4" for Spot - 1 x 125mm / 4 15/16" Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38538- 2LOOK4 160 CLOSED - Channel 2 Hole - 1,200mm / 47 1/4" for Spot - 2 x 95mm / 3 3/4"Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38539- 2LOOK4 160 CLOSED - Channel 2 Hole - 1,200mm / 47 1/4" for Spot - 2 x 125mm / 4 15/16" Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38540- 2LOOK4 160 CLOSED - Channel 2 Hole Long - 1,200mm / 47 1/4" for Spot - 2 x 95mm / 3 3/4" Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38541- 2LOOK4 160 CLOSED - Channel 2 Hole Long - 1,200mm / 47 1/4" for Spot - 2 x 125mm / 4 15/16" Hole
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38542- 2LOOK4 160 CLOSED - Channel 3 Hole Long - 1,200mm / 47 1/4" for Spot - 3 x 95mm / 3 3/4" Holes
2Look4 by Prolicht – 47 1/4″ x 1 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L38543- 22LOOK4 160 CLOSED - Channel 3 Hole Long - 1,200mm / 47 1/4" for Spot - 3 x 125mm / 4 15/16" Holes
Bioniq by Prolicht – 3 3/4″ x 7/8″ ,  offers LED lighting solutions | Zaneen Architectural L3876399 2LOOK4 160 CLOSED - Mounting Frame for Bioniq 95mm/ 3 3/8" Spot
Bioniq by Prolicht – 4 15/16″ x 7/8″ ,  offers LED lighting solutions | Zaneen Architectural L3876499 2LOOK4 160 CLOSED - Mounting Frame for Bioniq 125mm / 4 15/16" Spot
2Look4 by Prolicht – 6 9/16″ x 1″ ,  offers LED lighting solutions | Zaneen Architectural L3951700 2LOOK4 160 CLOSED - Frame Alignment Kit
2Look4 by Prolicht – 6 7/16″ x 2 5/8″ ,  offers LED lighting solutions | Zaneen Architectural L39585- 2LOOK4 160 CLOSED - End Component

Also Available within Series

2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L4130-TRI-SYS 2LOOK4 - 130 - Trimless - Profile System
2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L4160-TRI-SYS 2LOOK4 - 160 Closed - Trimless - Profile System
2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L420-TRK-TRI-SYS 2LOOK4 - 20 Track - Trimless - Profile System
2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L450-PLG-TRI-SYS 2LOOK4 - 50 Plug - Trimless - Profile System
2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L450-TRK-TRI-SYS 2LOOK4 - 50 Track - Trimless - Profile System
2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural L32L480-TRI-SYS 2LOOK4 - 80 - Trimless - Profile System

Downloads

2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural

2Look4 by Prolicht –  Trimless, Profile offers LED lighting solutions | Zaneen Architectural / Line art

Ceiling
Ceiling thickness

12.5mm /
12''
Ceiling thickness selection
Dimmable
Special LED (upon request) RGB, RGBW, tunable, gold+, meat+, art+, fashion+
Color temperature

2700 / 3000 / 3500 / 4000
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Finishes

SSR - Sparkling Silver BLV - Black Velvet CRW - Crystal White CRY - Creamy HAB - Hampton Bay LAG - Lagoon UFT - Urban Forest ITH - In the Army RUA - Rusty Angel RUR - Rusty Rush MIC - Milk and Chocolate FTG - Fade to Gray MYG - Mysterious Gray TWT - Twilight LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart GUM - Gun Metal CHC - Champagne Cream COM - Copper Mine ANB - Ancient Bronze JAG - Jazz Gold
Digital Disclamer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
