Surface

Suspension

Inspiration Series Overview Finishes Features

General

Reset

Series: Ghost

Subseries: Ghost Bunga, Ghost Bunga Plus, Ghost Fino

Brand: Prolicht

Division: Architectural

Mounting Type: Surface, Suspension

Mounting Location: Ceiling

Subcategory: Profile

Physical

Shape: Cylinder, Rectangle

Diameter (mm): 115

Diameter (in): 4 ¹⁄₂

Length (mm): 900, 938, 1180, 1218, 1460, 1498, 1740, 1778, 2020, 2058, Custom length

Length (in): 35 ⁷⁄₁₆, 36 ¹⁵⁄₁₆, 46 ⁷⁄₁₆, 47 ¹⁵⁄₁₆, 57 ¹⁄₂, 59, 68 ¹⁄₂, 70, 79 ¹⁄₂, 81, Custom length

Width (mm): 65, 115

Width (in): 2 ⁹⁄₁₆, 4 ¹⁄₂

Height (mm): 76, 108, 115

Height (in): 3, 4 ¹⁄₂, 4 ¹⁄₄

Max. Overall Height (mm): 2076, 2115

Max. Overall Height (in): 81 ³⁄₄, 83 ¹⁄₄

Light Distribution: Omnidirectional

Weight (kg): 2.664, 2.954, 3.294, 3.308, 3.581, 3.634, 3.685, 3.974, 4.038, 4.99, 4.309, 4.314, 4.413, 4.665, 4.767, 5.038, 5.138, 5.329, 5.492, 5.669, 5.763, 5.866, 6.22, 6.492

Weight (lbs): 5.873, 6.512, 7.28, 7.88, 7.262, 8.011, 8.88, 8.124, 8.761, 9.499, 9.510, 9.729, 10.284, 10.509, 11.00, 11.106, 11.327, 11.748, 12.107, 12.498, 12.705, 12.932, 13.71, 14.312

Diffuser: PMMA - Opal

Fixture Finish: SSR / BKV / CWI / CRY / HAB / LAG / UFT / ITA / RUA / RUR / MIC / FTG / MYG / TWT / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / GUM / CHC / COM / ABZ / JAG

see color chart below

Fixture Material: Aluminum

Cable Details: 2000mm or 4000mm Transparent Cable, 2000mm or 6000mm Transparent Cable

Upon Request: Cable colour - White / Black / Orange / Red, Printed Letters & Signs

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 15, 20, 25, 30, 35

Total Output Wattage (W): 12 / 11.1 (3500K), 12 / 11.2 (3500K), 16 / 12.8 (3500K), 20 / 16 (3500K), 24 / 19.2 (3500K), 28 / 22.8 (3500K)

Dimming: 0-10V Dimming / Phase Dimming (120Vac Only), Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - 120 / 277Vac, Constant Current - 120 / 277Vac

Driver Class: Class 2

Input Voltage (V): 120 / 277

Constant Current (MA): 350 / 100-125 / 350, 350 / 325 (3500K), 350 / 375 (3500K), 350 / 400 (3500K), 350 / 500 (3500K), 350 / 600 (3500K), 350 / 700 (3500K)

LED

Color Temperature (°K): 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 1660 / 1715 / 1750, 1710 / 1774 / 1810, 2210 / 2293 / 2340, 2280 / 2362 / 2410, 2770 / 2862 / 2920, 2850 / 2960 / 3020, 3320 / 3440 / 3510, 3430 / 3548 / 3620, 3870 / 4008 / 4090, 4000 / 4136 / 4220

CRI: >80 CRI

Lamp Life (hrs): 50000

Upon Request: Color Temperature RGB-W Tunable CRI (no minimum qty) price increase + longer lead time, Special Color Temperature RGB-W Tunable CRI (no minimum qty) price increase + longer lead time

Optical

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20

Ghost 29 matching products

	L30695-	Bunga - Suspension - 900mm / 35 7/16" - 15W / 11.1W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30696-	Bunga - Suspension - 1180mm / 46 7/16" - 20W / 12.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30697-	Bunga - Suspension - 1460mm / 57 1/2 - 25W / 16W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30698-	Bunga - Suspension - 1740mm / 68 1/2" - 30W / 19.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80 - Opal
	L30699-	Bunga - Suspension - 2020mm / 79 1/2" - 35W / 22.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30700-	Bunga Plus - Suspension - 938mm / 36 15/16" - 15W / 11.1W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30701-	Bunga Plus - Suspension - 1218mm / 47 15/16" - 20W / 12.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30702-	Bunga Plus - Suspension - 1498mm / 59"- 25W / 16W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30703-	Bunga Plus - Suspension - 1778mm / 70" - 30W / 19.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30704-	Bunga Plus - Suspension - 2058mm / 81" - 35W / 22.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30705-	Fino - Suspension - 900mm / 35 7/16" - 15W / 11.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30706-	Fino - Suspension - 1180mm / 46 7/16" - 20W / 12.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30707-	Fino - Suspension - 1460mm / 57 1/2 - 25W / 16W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30708-	Fino - Suspension - 1740mm / 68 1/2" - 30W / 19.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L30709-	Fino - Suspension - 2020mm / 79 1/2" - 35W / 22.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - Opal
	L3BU-SUR-SYS	Bunga Surface System - Custom Length
	L3BU-SUS-SYS	Bunga Suspension System - Custom Length
	L3D118-	Bunga - Surface - Ceiling - 900mm / 35 7/16" - 15W / 10.4W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D119-	Bunga - Surface - Ceiling - 1180mm / 46 7/16" - 20W / 12.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D120-	Bunga - Surface - Ceiling - 1460mm / 57 1/2 - 25W / 16W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D121-	Bunga - Surface - Ceiling - 1740mm / 68 1/2" - 30W / 19.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D122-	Bunga - Surface - Ceiling - 2020mm / 79 1/2" - 35W / 22.4W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D123-	Fino - Surface - Ceiling - 900mm / 35 7/16" - 15W / 11.1W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D124-	Fino - Surface - Ceiling - 1180mm / 46 7/16" - 20W / 12.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D125-	Fino - Surface - Ceiling - 1460mm / 57 1/2 - 25W / 16W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D126-	Fino - Surface - Ceiling - 1740mm / 68 1/2" - 30W / 19.2W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3D127-	Fino - Surface - Ceiling - 2020mm / 79 1/2" - 35W / 22.8W [O/P] (3500K) - LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >80
	L3FI-SUR-SYS	Fino Surface System - Custom Length
	L3FI-SUS-SYS	Fino Suspension System - Custom Length

Series Description

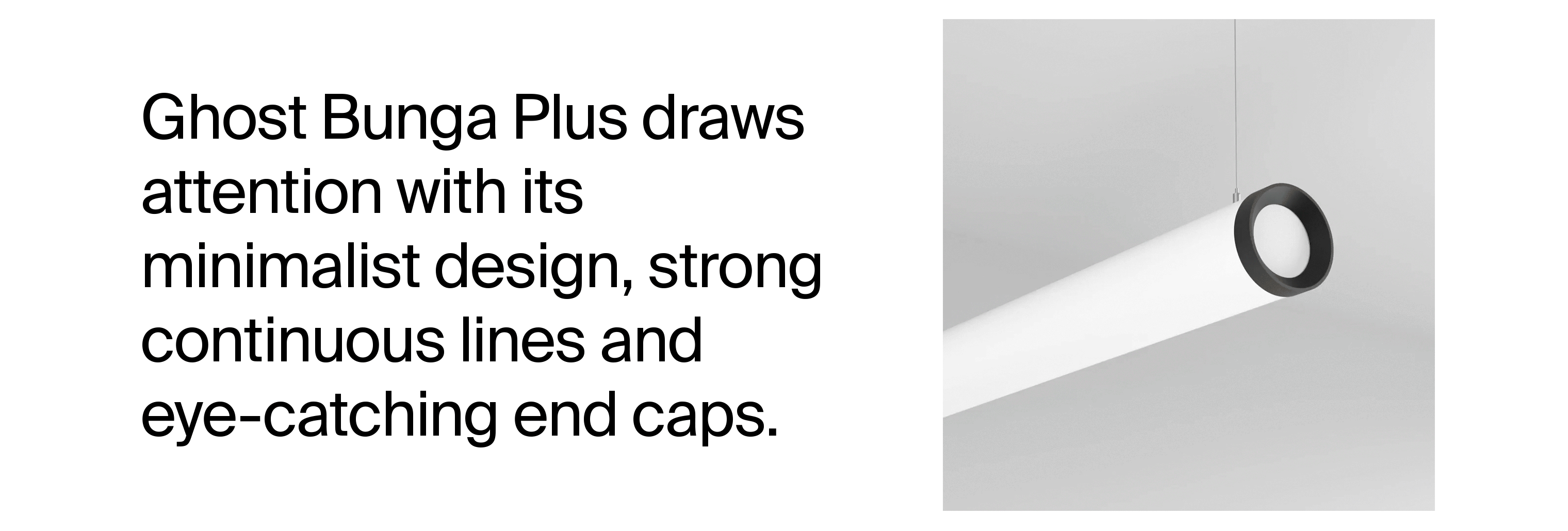

Ghost is a tubular series of LED linear lights consisting of a surface mount system and a suspension system. Just like a glow stick, Ghost luminaires cast its light softly and fluidly throughout the room. The satin finished diffuser, made from PMMA, is purist and timeless in design. It surrounds the entire light source and creates an even pool of light. LED inserts are approximately 5 watts per foot, available in 3000K, 3500K and 4000K. Two end cap styles are available: solid aluminum end cap or aluminum ring with color diffuser (Bunga Plus). End caps are available in 29 standard color finish options. The color diffuser is available in green, blue, red, orange, yellow, or opal. All Ghost variants can be customized and embellished with bespoke lettering with Identity.

Manufactured in Austria, by Prolicht.
