Silhouette Suspension - Ø500mm/19 11/16", 24W LED - 3000K - CRI90 - 1830lm- 24Vdc - Jazz Gold (29) – Zaneen

General

Reset
Series: Silhouettes
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Modular Systems
Modular Systems products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Round

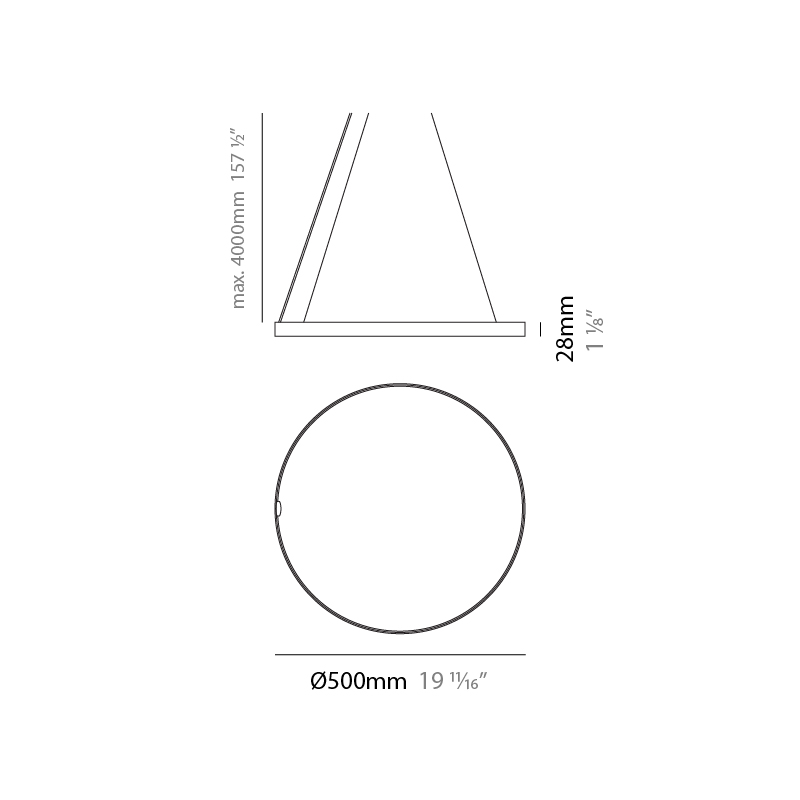

Diameter (mm): 500
Diameter (in): 19 11⁄16
Height (mm): 28
Height (in): 1 1⁄8
Max. Overall Height (mm): 4028
Max. Overall Height (in): 158 9⁄16
Weight (kg): 10.24kg
Diffuser: PMMA - Opal
Fixture Finish: SSR / BKV / CWI / CRY / HAB / UFT / ITA / RUA / FTG / MYG / LOD / PUS / FRO / FUP / KIA / POP / BLS / SPG / MEY / GOH / CHC / COM / ABZ / JAG / OBR / MOS / ROR
see color chart below
Fixture Material: Aluminum
Cable Details: 4000mm/157 1/2" Transparent Cable



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 24
Dimming: Non-Dimmable / 0-10V Dimming
Driver Included: No
Driver Location: See canopy components
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 3000
Max. Delivered Lumen (lm): 1830
Nominal Lumen (lm): 2156
CRI: >90 CRI
Lamp Life (hrs): 50000
Upon Request: 2200K / 2400K / 2700K / 3500K



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A31054- : A31054-30K-29

Description

No description has been found

This component relates to

Also Available within Series

Downloads

Request Files

Silhouettes by Prolicht – 19 11/16″ x 1 1/8″ Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural

Silhouettes by Prolicht – 19 11/16″ x 1 1/8″ Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Length of suspension cable
Dimmable
Color rendering index

>90 CRI
Color temperature

3000
Lumen (luminous flux)

1830
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Sparkling Silver BKV - Black Velvet CWI - Crystal White CRY - Creamy HAB - Hampton Bay UFT - Urban Forest ITA - In the Army RUA - Rusty Angel FTG - Fade to Gray MYG - Mysterious Gray LOD - Lost Dream PUS - Purple Sky FRO - Fresh Oh FUP - Funky P. KIA - Kissing Aphrodite POP - Poseidon's Paradise BLS - Blue Sky SPG - Spring Green MEY - Mellow Yellow GOH - Golden Heart CHC - Champagne Cream COM - Copper Mine ABZ - Ancient Bronze JAG - Jazz Gold OBR - Olive Breeze MOS - Moonlight Silver ROR - Rosewood Red
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
