Minimal Track Surface Snooker - 6.5W LED (Zhaga Standard) - 2700K / 3000K / 3500K / 4000K - 48Vdc - Chrome - CRI90 (DALI Dimming Only) - Optic: 32°/58° – Zaneen

General

Reset
Series: Snooker Metal
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Modular Systems
Modular Systems products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Round
Diameter (mm): 72
Diameter (in): 2 13⁄16
Height (mm): 71
Height (in): 2 13⁄16
Weight (kg): 0.26
Weight (lbs): 0.04
Fixture Finish: CHR
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 6.5
Total Output Wattage (W): 6
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - 120/277Vac
Driver Class: Class 2
Input Voltage (V): 48
Constant Current (MA): 500
Upon Request: DALI



LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 283 / 328 / 349 / 356
Nominal Lumen (lm): 460 / 487 / 517 / 528
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 32 / 58
Adjustability: Fixed



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A380605-

Specify

Description

No description has been found

This component relates to

Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-SUR-SYS Minimal Track Surface Modular System

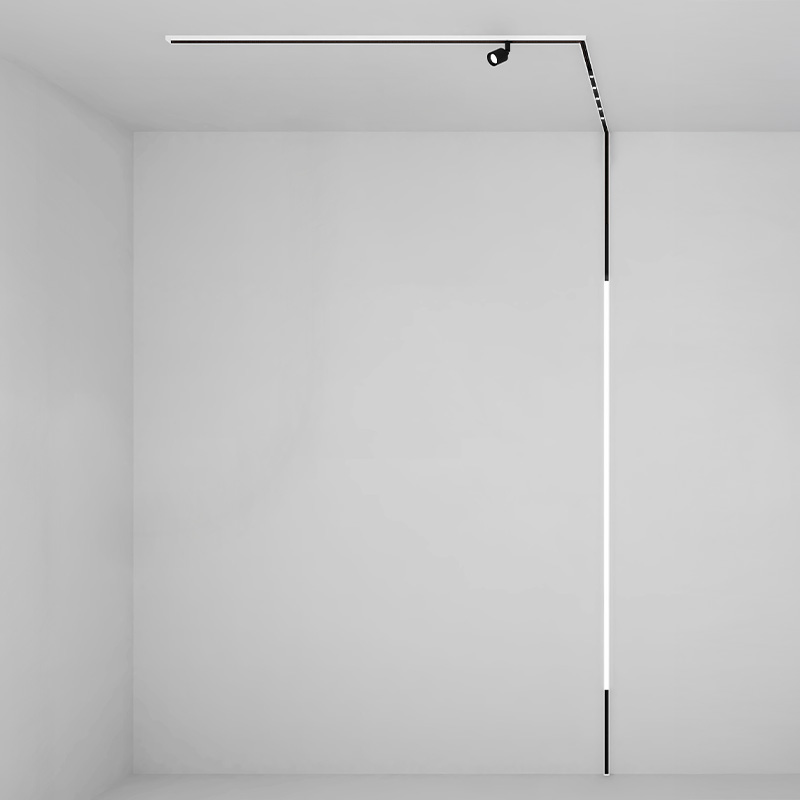

Micro Track 48V by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural STMS48V-SUR-SYS Micro Track Modular System - Surface Ceiling

Also Available within Series

Downloads

Request Files

Snooker Metal by Prolicht – 2 13/16″ x 2 13/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

Snooker Metal by Prolicht – 2 13/16″ x 2 13/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

283 / 328 / 349 / 356
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

CHR - Chrome
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
