35 Linear - Suspension - Continuous Linear Element - 1000mm / 39 3/8" - 30W LED, 2700K / 3000K / 4000K - CRI: 90 - Opal Diffuser – Zaneen

General

Reset
Series: 35 Linear
Subseries: 35 Linear Modular System
Partner: Ivela
Ivela products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Linear Profiles
Linear Profiles products
Mounting Location: Ceiling
Ceiling products

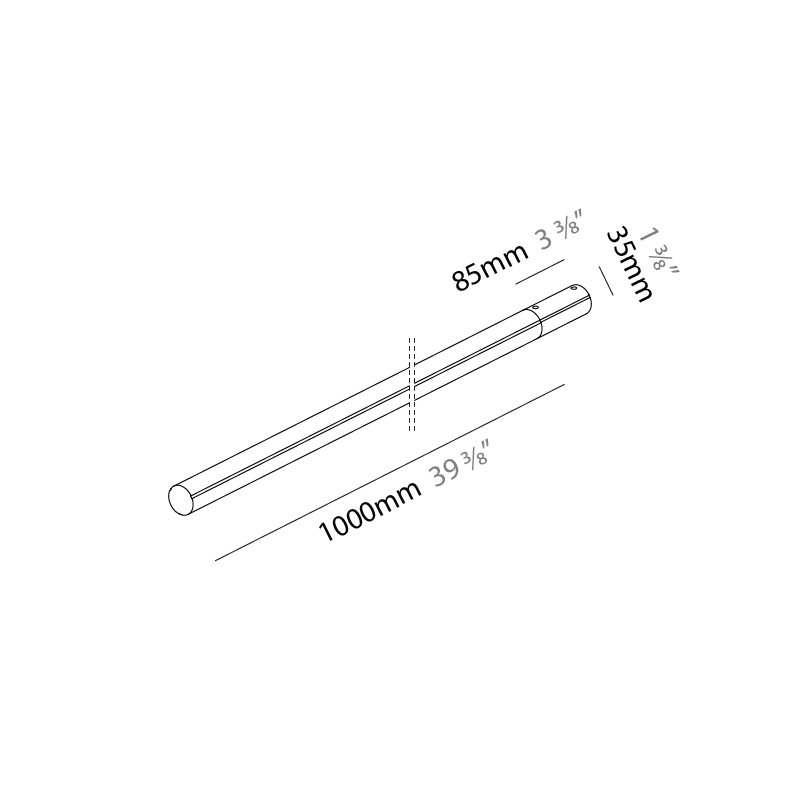

Physical

Shape: Cylinder
Diameter (mm): 35
Diameter (in): 1 3⁄8
Length (mm): 1000
Length (in): 39 3⁄8
Diffuser: Polycarbonate - Opal / Smoked
Fixture Finish: ANB / WHI
see color chart below
Fixture Material: Aluminum / Polycarbonate
Upon Request: Smoked Polycarbonate Diffuser



Electrical

Lamp Type: LED
Input Wattage (W): 30



LED

Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 1758 / 1842 / 1932
Nominal Lumen (lm): 3150 / 3300 / 3450
CRI: >90 CRI



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A51056-

Specify

Description

35 Linear can create concealed details or be the centerpiece of a breathtaking installation. 35 Linear represents a unique element of its kind with an innovative design and complementary lighting features. The three segment 35 mm core allows 35 Linear to be symmetrical and homogenous one moment and asymmetric and targeted the next. The light sources can be customized with different light directions diffused indirect lighting, diffused direct down light, and accent lighting to create customized choreographics and atmospheres. Perfectly combinable with projectors that concentrate light in specific directions, the luminous linear element reinvents itself every time it is switched on. Its adaptability allows it to create freely many shapes and designs across all project types.

Manufactured in Italy, by Ivela.

This component relates to

35 Linear by Ivela – Custom length″ Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural A535LIN-MOD-SYS 35 Linear Suspension Modular System

Also Available within Series

35 Linear by Ivela – Custom length″ Suspension, Modular Systems offers LED lighting solutions | Zaneen Architectural A535LIN-MOD-SYS 35 Linear Suspension Modular System

Downloads

Request Files

35 Linear by Ivela – 1 3/8″39 3/8″ Suspension, Linear Profiles offers LED lighting solutions | Zaneen Architectural

35 Linear by Ivela – 1 3/8″39 3/8″ Suspension, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

1758 / 1842 / 1932
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

ANB - Anodized Black WHI - White
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
