35 Track - Minirooler, 48VDC, 17W LED, 2700K, 3000K, 4000K, Max 1339lm, CRI:90, Beam Angles: 12°, 20°, 50°, 14°x41°, 41°x14° - Black - Non-Dimming – Zaneen

General

Reset
Series: 35 Track
Partner: Ivela
Ivela products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Modular Systems
Modular Systems products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle

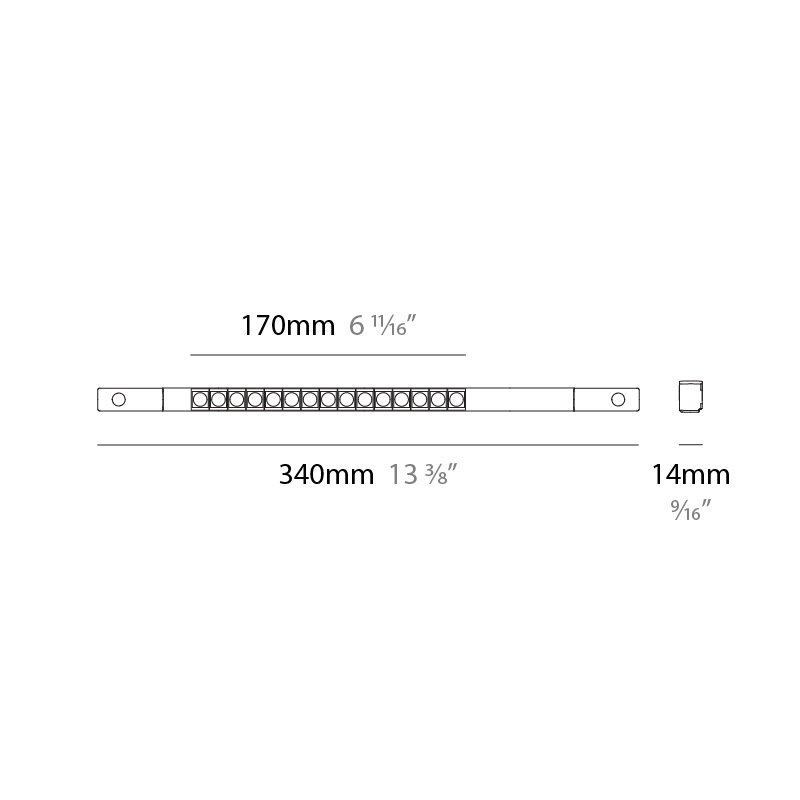

Length (mm): 340
Length (in): 13 3⁄8
Width (mm): 14
Width (in): 9/16
Height (mm): 14
Height (in): 9/16
Fixture Finish: BLK
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 17
Dimming: Non-Dimmable
Input Voltage (V): 48



LED

Number of LEDs: 15
Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 1139 - 1337
Nominal Lumen (lm): 1650
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 12 / 20 / 50 / 14x41 / 41x14



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A5T098-

Specify

Description

35 Track is a revolutionary lighting solution designed to combine sleek design with unparalleled functionality. This modular system features a cylindrical profile that delivers indirect diffused uplight, direct diffused downlight, and accent lighting, offering ultimate flexibility for tailored lighting compositions. Integrated with a high-performance 48V track, the 35 Track accommodates various light inserts, including Minirooler, Nanoperfetto, and Microperfetto track spots, which can be freely positioned to meet specific project needs. Each linear element powers the next through an integrated connection, ensuring seamless operation. The 35 Track system empowers designers to create dynamic architectural lighting installations with independent control of lighting components, making it the perfect choice for both functional and decorative applications.

Manufactured in Italy, by Ivela.

This component relates to

35 Track by Ivela – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A535TRK-SUS-SYS 35 Track - Surface/Suspension Modular System

Also Available within Series

35 Track by Ivela – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A535TRK-SUS-SYS 35 Track - Surface/Suspension Modular System

Downloads

Request Files

35 Track by Ivela – 13 3/8″ x 9/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

35 Track by Ivela – 13 3/8″ x 9/16″ Track, Modular Systems offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

1139 - 1337
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
