35 Track - Linea 48Vdc, 1900mm/74 13/16", 43W, 2700K / 3000K / 4000K, CRI:90, Non-Dimming – Zaneen

General

Reset
Series: 35 Track
Partner: Ivela
Ivela products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Linear Profiles
Linear Profiles products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Cylinder

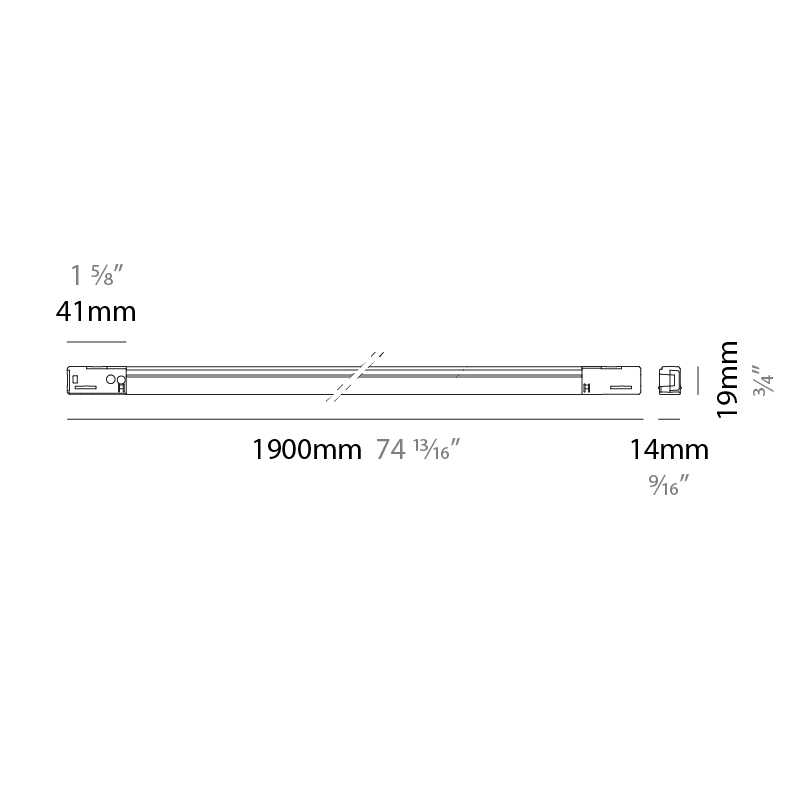

Length (mm): 1900
Length (in): 74 13⁄16
Width (mm): 14
Width (in): 9/16
Height (mm): 19
Height (in): 3/4
Diffuser: Opal Polycarbonate
Fixture Finish: BLK / WHI
see color chart below
Fixture Material: Aluminum / Polycarbonate



Electrical

Lamp Type: LED
Input Wattage (W): 43
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 48
Output Voltage (V): 48



LED

Color Temperature (°K): 2700 / 3000 / 4000
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Adjustability: Fixed



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20
Glare Rating: ≤ 16





Base Model Number: A5T129-

Specify

Description

35 Track is a revolutionary lighting solution designed to combine sleek design with unparalleled functionality. This modular system features a cylindrical profile that delivers indirect diffused uplight, direct diffused downlight, and accent lighting, offering ultimate flexibility for tailored lighting compositions. Integrated with a high-performance 48V track, the 35 Track accommodates various light inserts, including Minirooler, Nanoperfetto, and Microperfetto track spots, which can be freely positioned to meet specific project needs. Each linear element powers the next through an integrated connection, ensuring seamless operation. The 35 Track system empowers designers to create dynamic architectural lighting installations with independent control of lighting components, making it the perfect choice for both functional and decorative applications.

Manufactured in Italy, by Ivela.

This component relates to

35 Track by Ivela – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A535TRK-SUS-SYS 35 Track - Surface/Suspension Modular System

Also Available within Series

35 Track by Ivela – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A535TRK-SUS-SYS 35 Track - Surface/Suspension Modular System

Downloads

Request Files

35 Track by Ivela – 74 13/16″ x 3/4″ Track, Linear Profiles offers LED lighting solutions | Zaneen Architectural

35 Track by Ivela – 74 13/16″ x 3/4″ Track, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Unified Glare Rating (UGR) range from 5-40
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black WHI - White
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
