Level - Studio - Dark Light Source with Diffuser, 770mm/30 5/16", On/Off, 18W LED, 2700K / 3000K, Max 1500lm, 48V, Dimmable Converter Included – Zaneen

General

Series: Level

Partner: Letroh
Letroh products

Division: Architectural
Architectural products

Installation: Track
Track products

Product Type: Linear Profiles
Linear Profiles products

Mounting Location: Ceiling
Ceiling products

Light Distribution: Downlight
Downlight products



Physical

Shape: Oblong

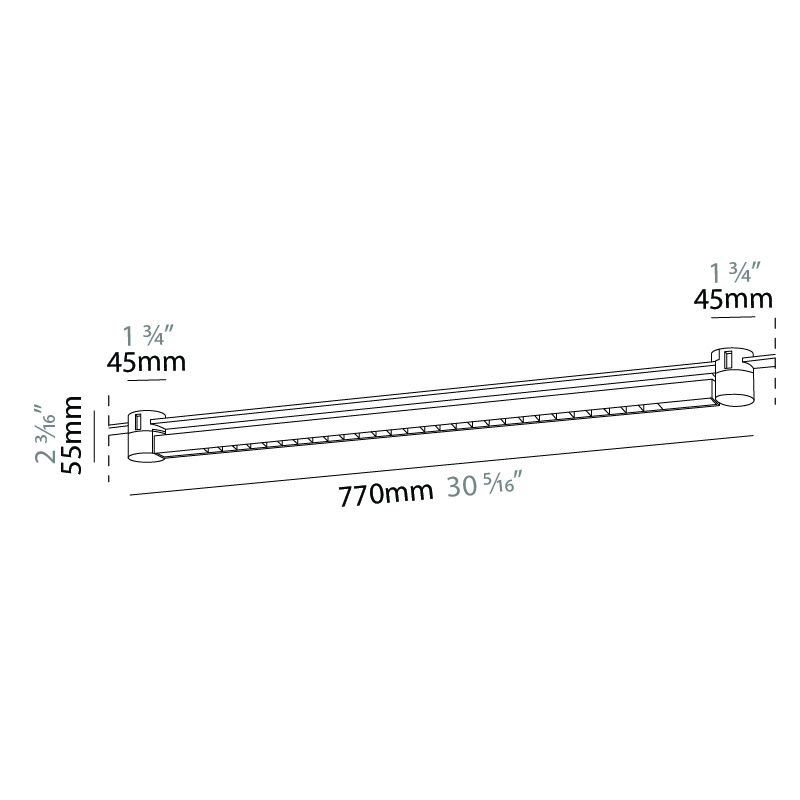

Length (mm): 770

Length (in): 30 516

Height (mm): 55

Height (in): 2 316

Weight (kg): 0.69

Fixture Finish: WHI / BLK
see color chart below

Fixture Material: Aluminum



Electrical

Lamp Type: LED

Input Wattage (W): 18

Dimming: Non-Dimming / Phase Dimming (120Vac only) / 0-10V Dimming

Driver Included: No

Driver Location: External

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 48



LED

Color Temperature (°K): 2700 / 3000

Max. Delivered Lumen (lm): 1400 / 1500

CRI: >90 CRI

Lamp Life (hrs): 50000



Optical

Adjustability: Rotational 90°



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20





Base Model Number: A7T00042-

Description

Level combines the lightness of a cable system with the functionality of a track, creating a new way to think about light. It is a cable system that integrates into lighting projects with its ability to respond to the demands of architectural design. Its flexibility translates to many benefits, including easy transportation and the ability to cut to size, as well as the simplicity and ease of installation on-site. Level offers endless design opportunities thanks to its ability to be mounted on a wall, ceiling, or even wall-to-ceiling, and with its two internal steel tensioning cables that allow you to make stretches up to 10m (32.8 feet) in length. Level is also available with additional sources, ZoomCompacto, and Studio, all of which can be added or moved at any time. Zoom is available as an adjustable or fixed spot, and as a suspension spot, to perfectly suit your design. Compacto is available as an adjustable or fixed spot, a fixed spot with diffuser, and as a suspension spot. Studio sources are a linear addition that allows for lateral lighting of the environment, and can also be rotated up to 90° on both sides.

Manufactured in Italy, by Letroh.

This component relates to

Level by Letroh –  Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A7LEVEL-MOD-SYS Level Modular System

Also Available within Series

Level by Letroh –  Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A7LEVEL-MOD-SYS Level Modular System

Downloads

Level by Letroh – 30 5/16″ x 2 3/16″ Track, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Level by Letroh – 30 5/16″ x 2 3/16″ Track, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Rotation

90°
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

1400 / 1500
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
