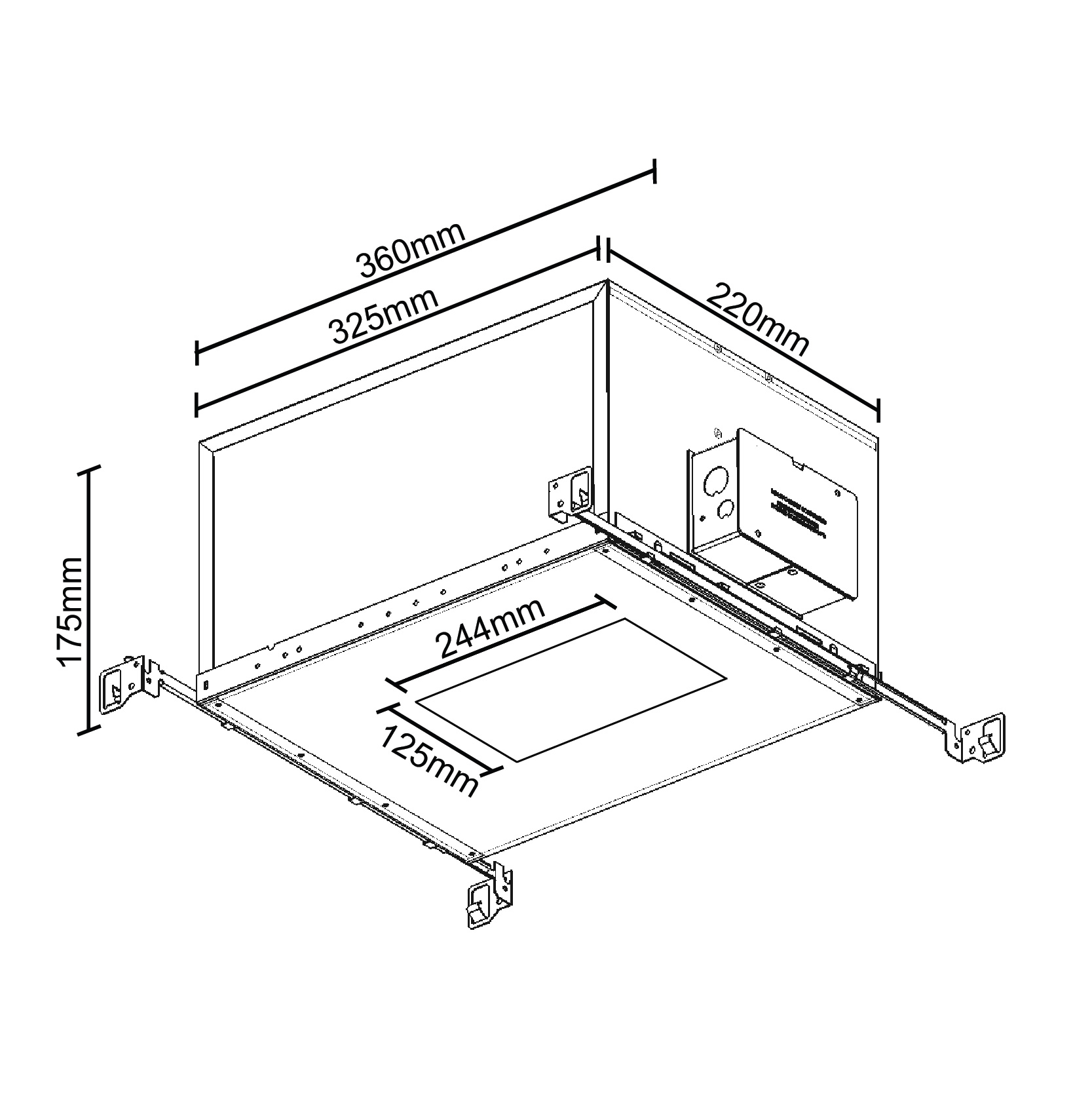

Chicago Plenum New Construction Recessed Frame Kit (244mm (9 5/8") x 125mm (4 7/8")), Max. 2 x 29.4W 700mA - Tri-Mode Dimming – Zaneen

General

Reset
Division: Architectural
Architectural products



Physical

Fixture Material: Metal



Electrical

Lamp Type: LED
Total Output Wattage (W): 33.6-58.8
Dimming: Phase Dimming (120Vac Only)
Driver Type: Constant Current - Universal
Driver Class: Class 2
Housing: ENCP3
Input Voltage (V): 120 - 277
Constant Current (MA): 700
Constant Voltage (V): 24-42
Upon Request: 0-10Vdc dimming / Phase dimming @120Vac only / 277Vac



LED



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: Dry





Base Model Number: CP-244-125-30-42

Description

Chicago Plenum New Construction Recessed Frame Kit (244mm (9 5/8") x 125mm (4 7/8")), Max. 2 x 29.4W 700mA - Tri-Mode Dimming

This component relates to

Downloads

Request Files

by – , offers LED lighting solutions | Zaneen Architectural

by – , offers LED lighting solutions | Zaneen Architectural

Dimmable
Certified for North American Standards

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
