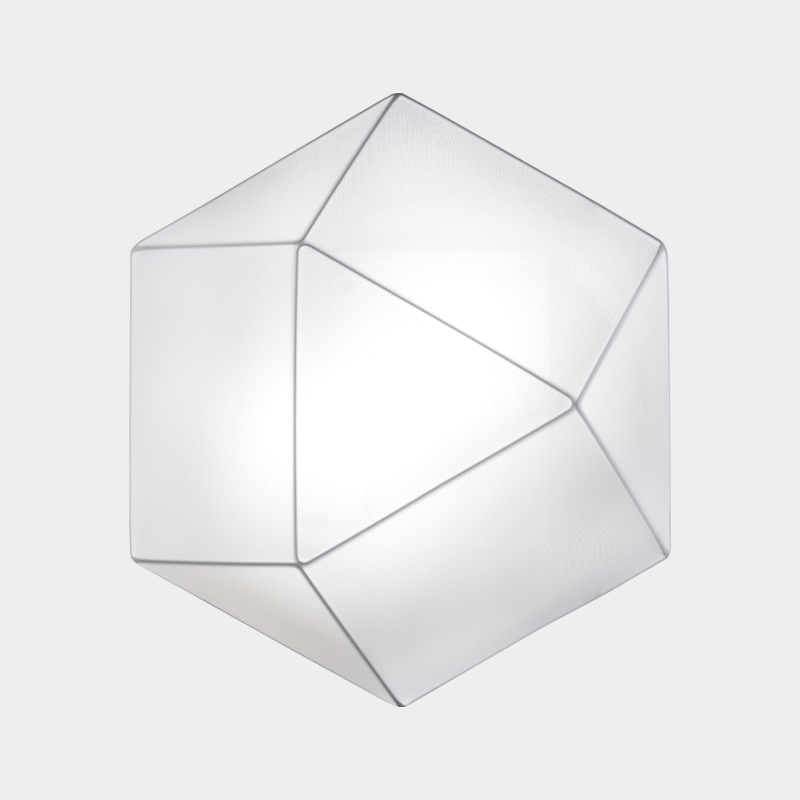

Clone - Surface - Ceiling / Wall - 460mm - 15.02W LED - 3000K / 4000K - Optical White – Zaneen

General

Reset
Series: Clone
Partner: Ole
Ole products
Division: Design
Design products
Installation: Surface
Surface products
Product Type: Ceiling Surface
Ceiling Surface products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Abstract
Length (mm): 460
Length (in): 18 1⁄8
Width (mm): 400
Width (in): 15 3⁄4
Height (mm): 80
Height (in): 3 1⁄8
Diffuser: Elastic Fabric - Optical White
Fixture Finish: WHI
see color chart below
Fixture Material: Metal / Elastic Fabric
Primary Material: Fabric



Electrical

Lamp Type: LED
Input Wattage (W): 15.02
Total Output Wattage (W): 12.39
Dimming: Non-Dimmable / 0-10V Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - 120 / 277Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 700



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 1180 / 1235
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: D112039-

Specify

Description

Clone collection takes its inspiration from the perfect composition of a bee-hive. Clone comes in a single piece or numerous connected pieces that compose customized installations for any interiors. It is composed of a removable stretching fabric covering a metal frame. The surface application is suitable for horizontal, vertical or sloping installations. This surface mounted LED light fixture brings geometric shapes alive in any space with its unique compositions and adaptability.

Manufactured in Spain, by Ole! Lighting.

Also Available within Series

Clone by Ole – 31 1/2″ x 4 5/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D112010 Clone - Surface - Ceiling / Wall - 800mm / 31 1/2" - 4 x Max. 15W LED Retrofit - E26 - A19 - Optical White
Clone by Ole – 18 1/8″ x 3 1/8″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D112038 Clone - Surface - Ceiling / Wall - 460mm / 18 1/8" - 2 x Max. 15W LED Retrofit - E26 - A19 - Optical White

Downloads

Request Files

Clone by Ole – 18 1/8″ x 3 1/8″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design

Clone by Ole – 18 1/8″ x 3 1/8″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design

Ceiling
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

1180 / 1235
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
