Fiamma - Suspension - Ø40mm/1 1/2" x L.500mm/19 11/16" - 1 x Max. 6W LED - Without Canopy - Top 50% Color / Bottom 50% Transparent – Zaneen

General

Reset
Series: Fiamma
Subseries: Fiamma Modular System
Partner: Cangini & Tucci
Cangini & Tucci products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Cylinder

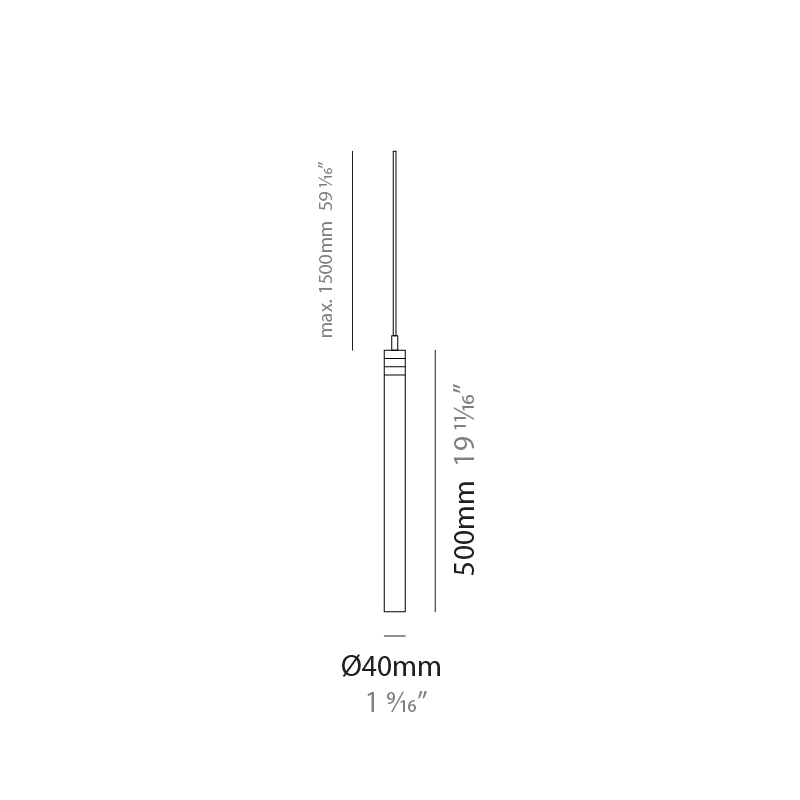

Diameter (mm): 40
Diameter (in): 1 9⁄16
Height (mm): 500
Height (in): 19 11⁄16
Max. Overall Height (mm): 2000
Max. Overall Height (in): 78 3⁄4
Fixture Finish: AMB / FSW / GRN / RGD / SKB / SMK / TIM / TOB / TRA / SWH
see color chart below
Holder Finish: CHR
Fixture Material: Glass / Metal
Primary Material: Glass - Borosilicate
Cable Details: 1500mm Cable



Electrical

Number of Lamps: 1
Lamp Type: LED
Input Wattage (W): 6
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: See canopy components
Input Voltage (V): 120
Constant Current (MA): 500



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 866
CRI: >95 CRI
Efficacy (lm/w): 144
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: D141274-

Specify

Description

Fiamma is a modern blown glass suspension light made of borosilicate glass with a colored 50% top portion fading into a 50% transparent lower portion. The glass threads onto the holder which eliminates the need for excess hardware. The metal canopy is white using polyacrylic paint, with customized colors available as well as options in size for various clustering configurations. Fiamma is ideal for hospitality sectors in a lobby or staircase setting due to its large composition options, or even large residential spaces

Manufactured in Italy, by Cangini & Tucci.

This component relates to

Fiamma by Cangini & Tucci – Suspension, Clusters offers quality European interior lighting design | Zaneen Design D14FIAMMA-MOD-SYS Fiamma - Modular Suspension System

Also Available within Series

Fiamma by Cangini & Tucci – 4 3/4″ x 19 11/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D141272- Fiamma - Suspension - 120mm/4 3/4" x 500mm/19 11/16" - 1 x 7.5W -500mA LED - With Canopy - Top 50% Color / Bottom 50% Transparent
Fiamma by Cangini & Tucci – 4 3/4″ x 31 1/2″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D141273- Fiamma - Suspension - 120mm/4 3/4" x 800mm/31 1/2" - 1 x Max. 6W LED Retrofit - E26 - With Canopy - Top 50% Color / Bottom 50% Transparent
Fiamma by Cangini & Tucci – Suspension, Clusters offers quality European interior lighting design | Zaneen Design D14FIAMMA-MOD-SYS Fiamma - Modular Suspension System

Downloads

Request Files

Fiamma by Cangini & Tucci – 1 9/16″ x 19 11/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

Ceiling
Length of suspension cable
Dimmable
Color rendering index

>95 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

866
Efficacy (lumens per watt)
Blown glass using traditional methods by master glass blower
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

AMB - Amber GRN - Green RGD - Rose Gold SKB - Sky Blue SMK - Smoke TIM - Titanium TOB - Tobacco TRA - Transparent SWH - Satin White

Holder Finishes

CHR - Chrome
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
