Metropolis LED Tube 800 - Suspension - 800mm / 31 1/2" - 2.7W LED - 700mA - 3000K / 4000K - Optics 12° / 28° / 44° – Zaneen

General

Reset
Series: Metropolis
Subseries: Metropolis-Y Modular System
Partner: Zaneen
Zaneen products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Clusters
Clusters products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Cylinder
Diameter (mm): 25
Diameter (in): 1
Height (mm): 800
Height (in): 31 1⁄2
Fixture Finish: BLK / BRZ / IND
see color chart below
Fixture Material: Aluminum
Cable Details: Black or Transparent - 3500mm / 137 13 /16"
Upon Request: Cylinder height. Max. 1830 mm / 72". Min 153mm / 6". Min. qty required 50 pcs.



Electrical

Lamp Type: LED
Input Wattage (W): 2.7
Total Output Wattage (W): 2.4
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Location: See canopy components
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 700



LED

Number of LEDs: 1
Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 114 / 122
Nominal Lumen (lm): 124 / 133
CRI: >90 CRI
Lamp Life (hrs): 50000
Upon Request: 3500K



Optical

Optic°: 12 / 28 / 44



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP41 (Damp)





Base Model Number: D201029-

Specify

Description

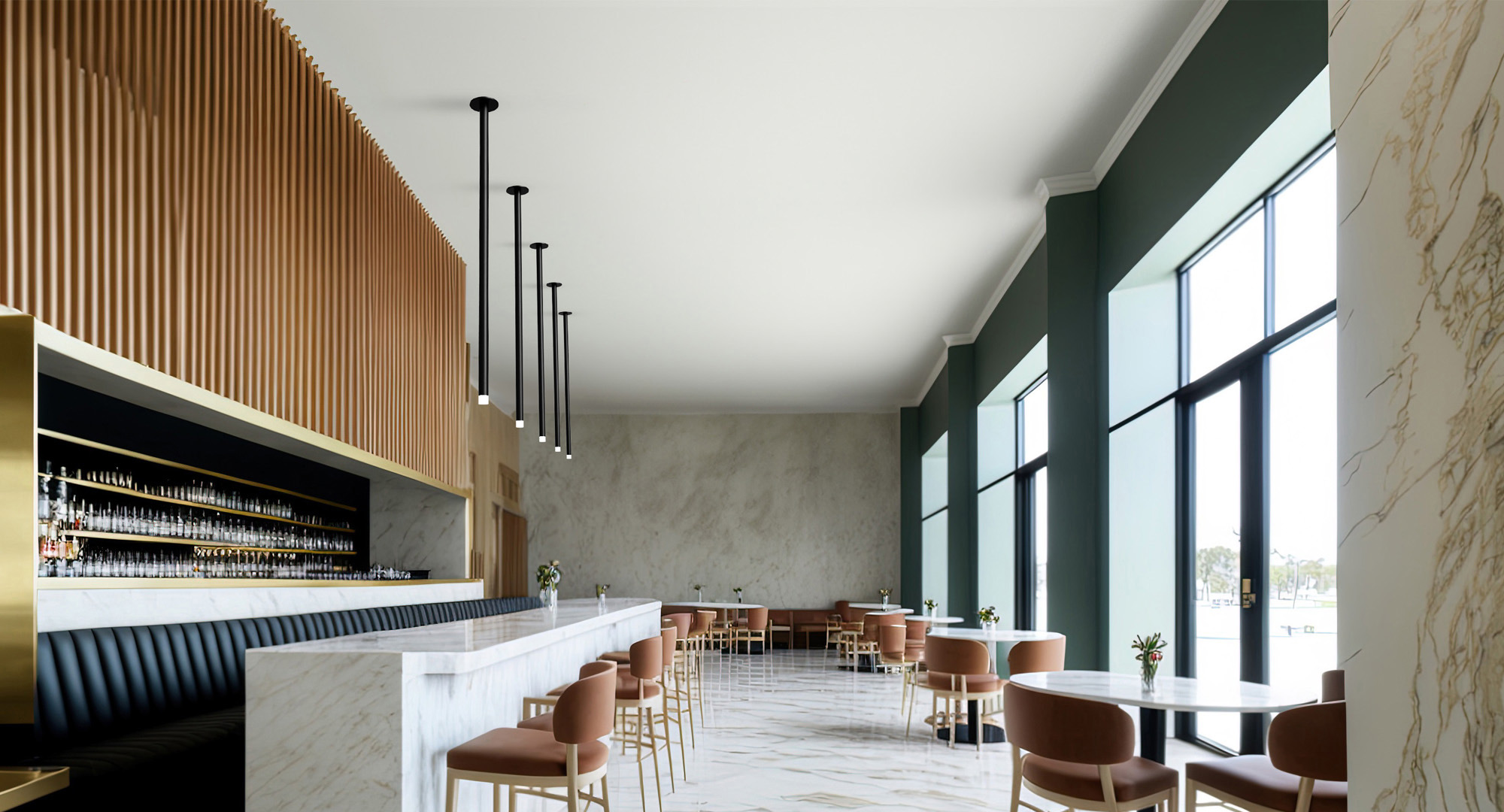

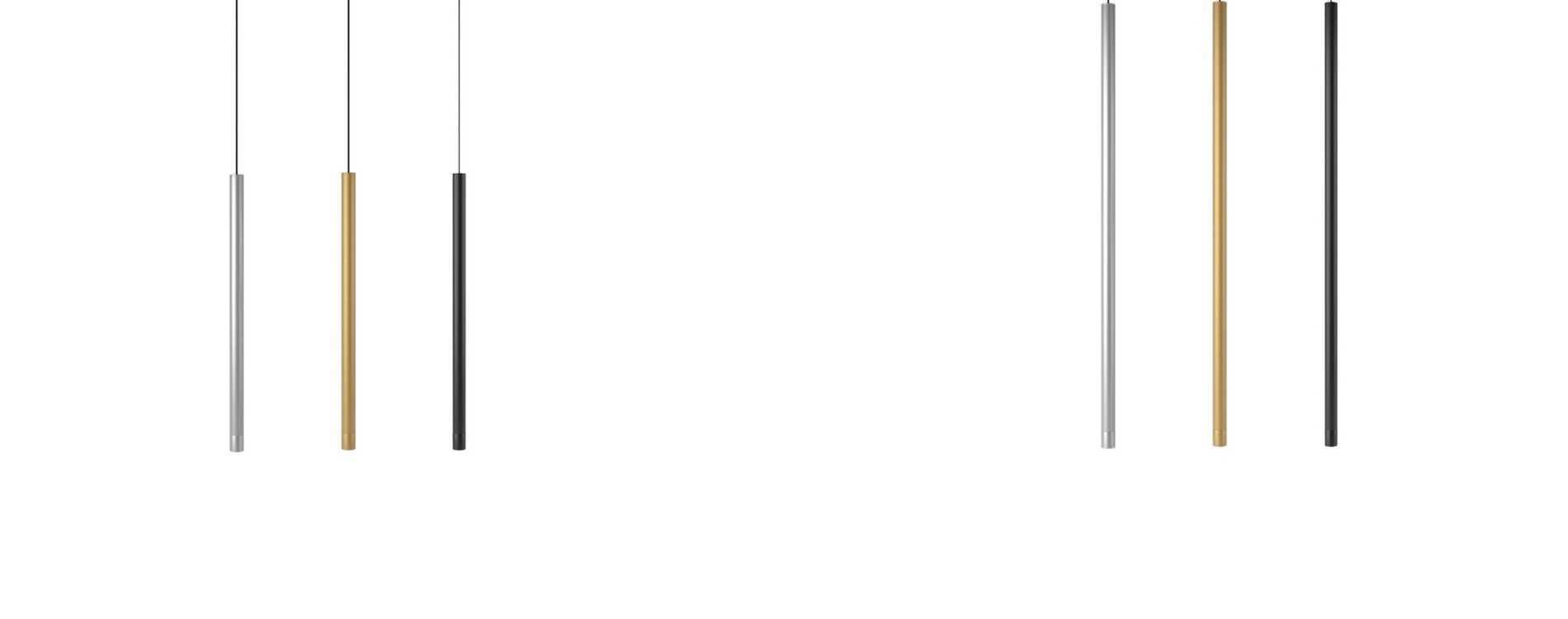

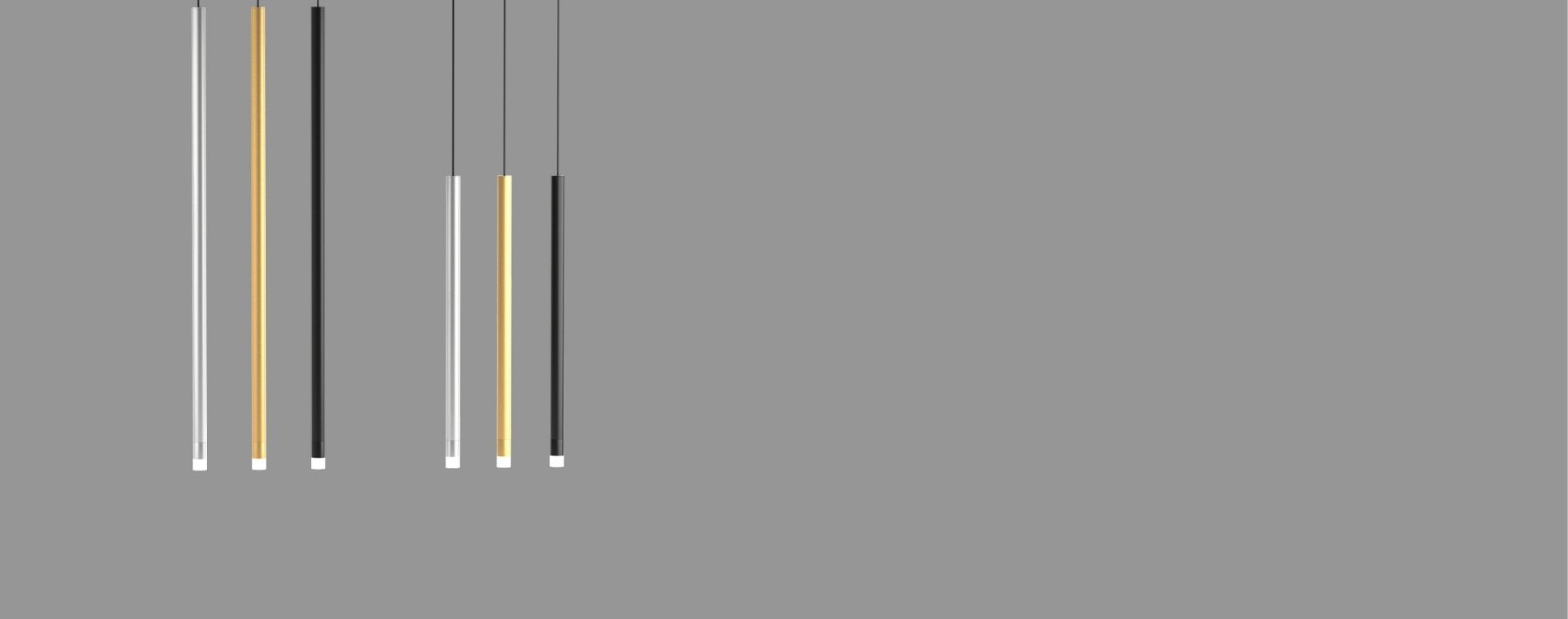

Metropolis is a single tube pendant measured at only 1" in diameter available in surface and suspension applications. The pendant is a stand alone fixture with or without a canopy, or it can be specified in multiples to create a dynamic and breathtaking statement. Now introducing a new version called Luminous Halo with an elegant frosted drop lens. This feature extends the height of the cylinder by 20mm.

Manufactured in Toronto, by Zaneen.

This component relates to

Metropolis-C by Zaneen – Suspension, Clusters offers quality European interior lighting design | Zaneen Design D20METRO-C-SUS-SYS Metropolis-C- Modular System
Metropolis-Y by Zaneen – Suspension, Clusters offers quality European interior lighting design | Zaneen Design D20METRO-Y-SUS-SYS Metropolis-Y - Modular System

Also Available within Series

Metropolis by Zaneen – 1″ x 19 11/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D201026- Metropolis - Suspension - ∅25mm / 1" x 500mm / 19 11/16" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44° - With Canopy
Metropolis by Zaneen – 1″ x 31 1/2″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D201027- Metropolis - Suspension ∅25mm / 1" x 800mm / 31 1/2" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44° - With Canopy
Metropolis by Zaneen – 1″ x 20 1/2″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D201032- Metropolis - Suspension Luminous Halo - ∅25mm / 1" x 520mm / 20 1/2" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44° - With Canopy
Metropolis by Zaneen – 1″ x 32 2/7″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D201033- Metropolis - Suspension Luminous Halo - ∅25mm / 1" x 820mm / 32 2/7" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44° - With Canopy
Metropolis by Zaneen – 4 3/4″ x 19 11/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202000- Metropolis - Surface ∅25mm / 1" x 500mm / 19 11/16" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44°
Metropolis by Zaneen – 4 3/4″ x 31 1/2″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202001- Metropolis - Surface ∅25mm / 1" x 800mm / 31 1/2" - 3.65W LED - 3000K / 4000K - Optics 12° / 28° / 44°
Metropolis by Zaneen – 4 3/4″ x 20 1/2″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202002- Metropolis - Surface Luminous Halo - ∅520mm / 20 1/2" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°
Metropolis by Zaneen – 4 3/4″ x 32 5/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202003- Metropolis - Surface Luminous Halo - ∅820mm / 32 5/16" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°
Metropolis by Zaneen – 3 1/8″ x 19 11/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202004- Metropolis - Surface Recessed - ∅500mm / 19 11/16" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°
Metropolis by Zaneen – 3 1/8″ x 31 1/2″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202005- Metropolis - Surface Recessed - ∅800mm / 31 1/2" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°
Metropolis by Zaneen – 3 1/8″ x 20 1/2″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202006- Surface/Recessed Canopy Luminous Halo 520mm/ 20 1/2" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°
Metropolis by Zaneen – 3 1/8″ x 32 5/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D202007- Surface/Recessed Canopy Luminous Halo 820mm/ 32 5/16" - 3.65W LED - 3000K / 4000K - With Canopy - Optics 12° / 28° / 44°

Downloads

Request Files

Metropolis by Zaneen – 1″ x 31 1/2″ Suspension, Clusters offers quality European interior lighting design | Zaneen Design

Metropolis by Zaneen – 1″ x 31 1/2″ Suspension, Clusters offers quality European interior lighting design | Zaneen Design

Ceiling
Included or excluded LED driver/transformer/ control gear
Length of suspension cable
Lens

12 / 28 / 44
Dimmable
Color rendering index

>90 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

114 / 122
Certified for North American Standards


Fixture Finishes

BLK - Black BRZ - Bronze IND - Industrial
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
