Slash - Housing Box for 879mm – Zaneen

General

Reset
Series: Lineari 65
Partner: Unonovesette
Unonovesette products
Division: Exterior
Exterior products
Product Type: Wallwash
Wallwash products



Physical

Shape: Rectangle
Length (mm): 883
Length (in): 34 3⁄4
Width (mm): 70
Width (in): 2 3⁄4
Height (mm): 150
Height (in): 5 7⁄8
Fixture Finish: BLK
see color chart below
Fixture Material: Anodized Aluminum



Electrical



LED



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP67





Base Model Number: E12A0006

Description

Lineari 65 is crafted from extruded high-quality anticorodal hard-anodized aluminum, designed for both in-ground and surface-mounted outdoor applications. With a drive-over rating of 2500KG (5,511 lbs), this robust LED linear flood light is built to withstand heavy use. Available with different optic choices, including wall washing and wall grazing, Lineari 65 allows for precise light control with its tiltable internal optical system, adjustable +/- 20° using an external knob. This adjustment can be made without opening the fixture, preserving its IP67 seal and minimizing light pollution. Offering multiple color temperature options, including RGBW and Tunable White, Lineari 65 is equipped with a DALI dimmable power supply, with DMX available on request. Installation is flexible, with options for surface mounting on brackets or in-ground with a housing box, and features an IP68 cable connector system for added protection.

Manufactured in Toronto, by Zaneen.

This component relates to

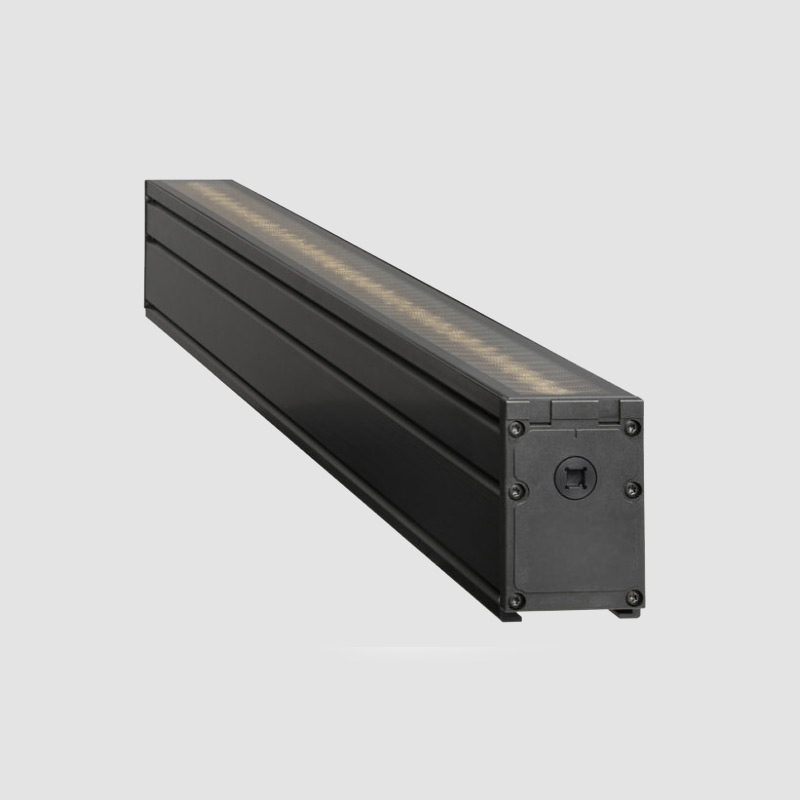

Lineari 65 by Zaneen – 34 5/8″ x 4″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0002- Lineari 65 - Drive Over - In-Ground / Surface - 879mm / 34 5/8" - 63W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C

Also Available within Series

Lineari 65 by Zaneen – 12″ x 4″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0000- Lineari 65 - Drive Over - In-Ground / Surface - 305mm / 12" - 20.89W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
Lineari 65 by Zaneen – 23 5/16″ x 4″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0001- Lineari 65 - Driver Over - In-Ground / Surface - 592mm / 25 3/16" - 40.6W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
Lineari 65 by Zaneen – 34 5/8″ x 4″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0002- Lineari 65 - Drive Over - In-Ground / Surface - 879mm / 34 5/8" - 63W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
Lineari 65 by Zaneen – 45 7/8″ x 4″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0003- Lineari 65 - Drive Over - In-Ground / Surface - 1166mm / 45 7/8" - 84W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C

Downloads

Request Files

Lineari 65 by Unonovesette – 34 3/4″ x 5 7/8″ , Wallwash offers high performance and quality material | Zaneen Exterior

Lineari 65 by Unonovesette – 34 3/4″ x 5 7/8″ , Wallwash offers high performance and quality material | Zaneen Exterior

Minimum distance (meters) lamp - object
Certified for North American Standards
Protected against ingress of dust; protected against immersion of water between 15cm - 1m for 30 minutes


Fixture Finishes

BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
