Insulated Ceiling New Construction Recessed Frame Kit (220mm (8 2/3")), Max. 50.4W 1200mA - Tri-Mode Dimming – Zaneen

General

Reset
Division: Architectural
Architectural products



Physical



Electrical

Lamp Type: LED
Total Output Wattage (W): 28.8-50.4
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: Yes
Driver Type: Constant Current - Universal
Driver Class: Class 2
Housing: ENCP6
Input Voltage (V): 120 - 277
Constant Current (MA): 1200
Constant Voltage (V): 24-42
Upon Request: 0-10Vdc dimming / Phase dimming @120Vac only / 277Vac



LED



Optical



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards





Base Model Number: IC-220-51-42

Description

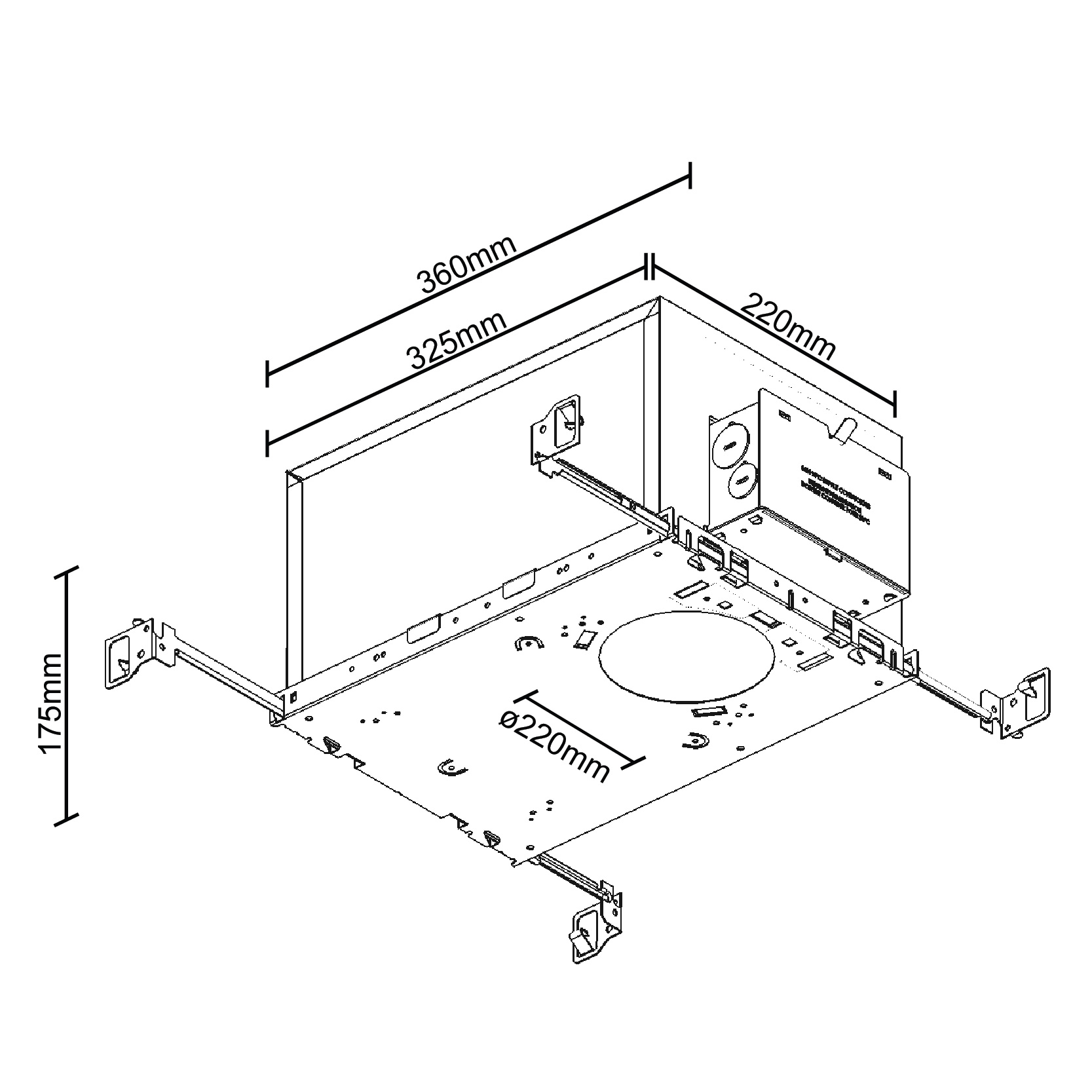

Insulated Ceiling New Construction Recessed Frame Kit (220mm (8 2/3")), Max. 50.4W 1200mA - Tri-Mode Dimming

This component relates to

Downloads

Request Files

by – , offers LED lighting solutions | Zaneen Architectural

by – , offers LED lighting solutions | Zaneen Architectural

Included or excluded LED driver/transformer/ control gear
Dimmable
CSA Certified to UL and CSA Standards

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
