35 Candela – Zaneen
Suspension
35 Candela - Suspension

Downloads Finishes Inspiration

General

Reset
Series: 35 Candela
Partner: Ivela
Ivela products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Cylinder
Diameter (mm): 35
Diameter (in): 1 3⁄8
Height (mm): 2000
Height (in): 78 3⁄4
Max. Overall Height (mm): 5000
Max. Overall Height (in): 196 7⁄8
Diffuser: Polycarbonate - Opal
Fixture Finish: WHI / ANB / SGD / BNI
see color chart below
Fixture Material: Aluminum / Polycarbonate
Cable Details: 3000mm / 118 1/8" Cable
Upon Request: Smoked Polycarbonate Diffuser



Electrical

Lamp Type: LED
Input Wattage (W): 60
Total Output Wattage (W): 60
Dimming: 0-10V / DALI Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Housing: ENCP8
Input Voltage (V): 120 - 277
Output Voltage (V): 48



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 3515 / 3683
Nominal Lumen (lm): 6300 / 6600
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





35 Candela Model Number: A51090-

Specify

Series Description

35 Candela is an expansion of the popular and dynamic 35 Linear series, transformed into a striking vertical light fixture. This suspension luminaire features a minimalistic design, yet its expertly balanced lighting brings spaces to life, meeting both functional and design needs. A captivating lighting solution, 35 Candela makes a bold statement in a variety of environments, especially those with double-height ceilings.

Manufactured in Italy, by Ivela.

Product Components to be ordered separately

Image SKU Description Datasheet
DVO1000048MB MeanWell - HLG-100H-48B - 1-10Vdc / Resistance / 10V PWM Dimming - 48-96W - 48Vdc - 120-277Vac - LED power supply
ENCP6 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

35 Candela by Ivela – 1 3/8″ x 78 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A51090- 35 Candela - Suspension, 2000mm/78 3/4", 60W LED, 2700K / 3000K , Max 3683lm, CRI90,

Downloads

Request Files

35 Candela by Ivela – 1 3/8″ x 78 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural

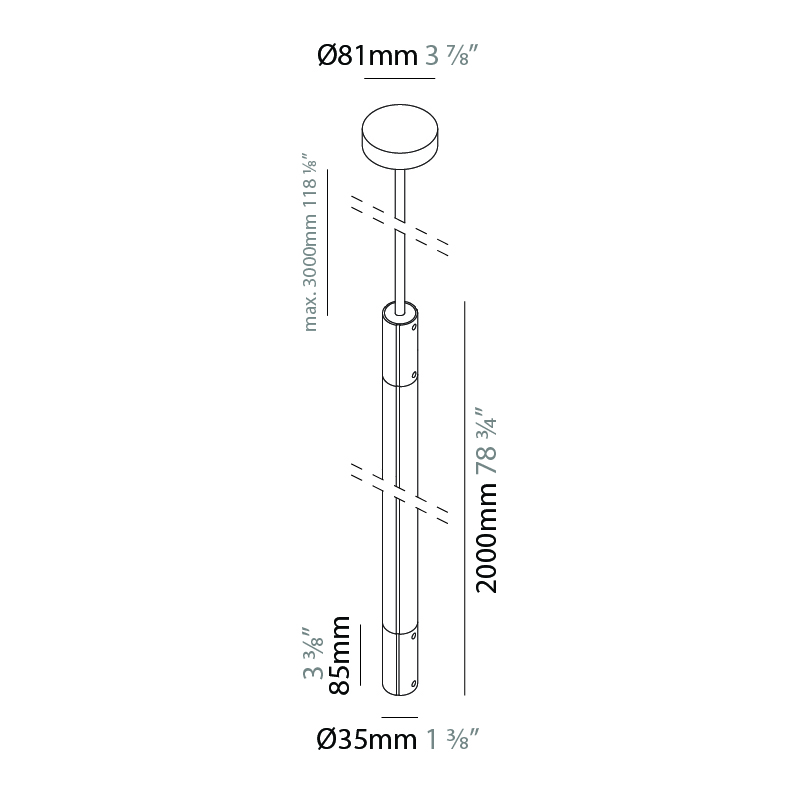

35 Candela by Ivela – 1 3/8″ x 78 3/4″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural / Line art

Ceiling

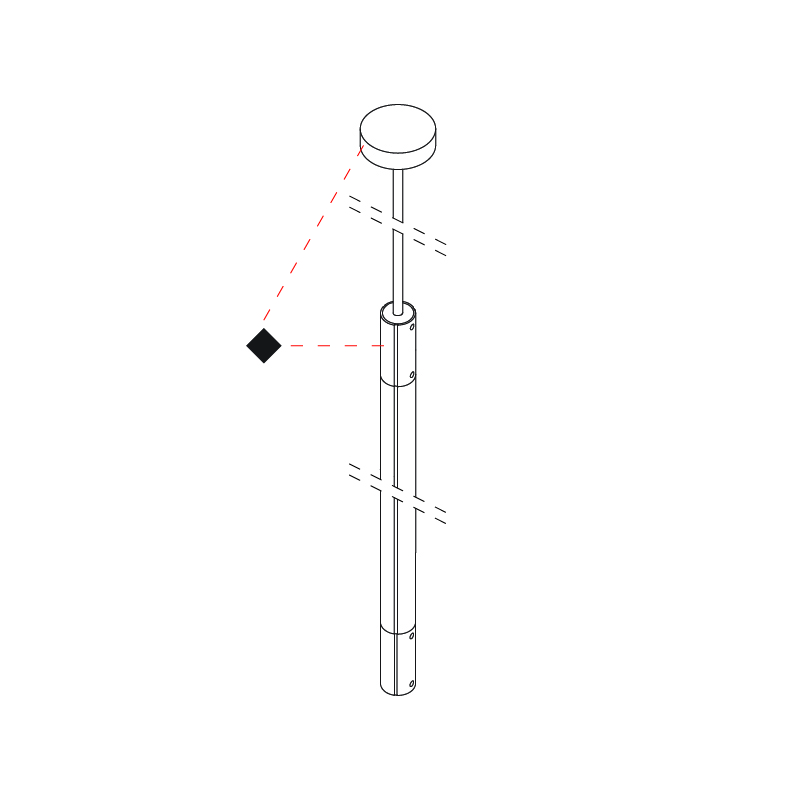

Length of suspension cable
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

3515 / 3683
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White ANB - Anodized Black SGD - Satin Gold
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
