Series: Cerkio XL
Partner: Side
Side products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Ceiling Surface
Ceiling Surface products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Round
Diameter (mm): 350
Diameter (in): 13 3⁄4
Height (mm): 125
Height (in): 4 7⁄8
Weight (kg): 3.5
Weight (lbs): 7.7
Diffuser: PMMA - Opal
Fixture Finish: WHI / BLK / GRY
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 22
Dimming: Non-Dimming / Phase Dimming / 0-10V Dimming / DALI Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120
Constant Current (MA): 700mA



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 1276 / 1332
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 120



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP65
IK Rating: IK10





Cerkio XL Model Number: E10C0127- New

Specify

Series Description

Cerkio XL extends the design language of the Cerkio family with a larger scale, delivering broader light distribution for more expansive exterior applications. Its balanced geometry and diffused output create a calm, even illumination that enhances façades, entryways, and transitional spaces with subtle presence.

Designed to perform in demanding outdoor conditions, Cerkio XL combines durability with a refined aesthetic. Its increased size allows for greater visual impact and coverage, making it a versatile solution for projects that require both performance and coherence.

Manufactured in Italy, by Side.

Also Available within Series New Series

Cerkio XL by Side – 13 3/4″ x 4 7/8″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior E10C0127- Ceriko XL Surface Ceiling/Wall, 350mm/13 3/4", 22W LED, 3000K/4000K, Max 1332 lm, CRI>90, Beam Angle 120°
New

Downloads

Request Files

Cerkio XL by Side – 13 3/4″ x 4 7/8″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior

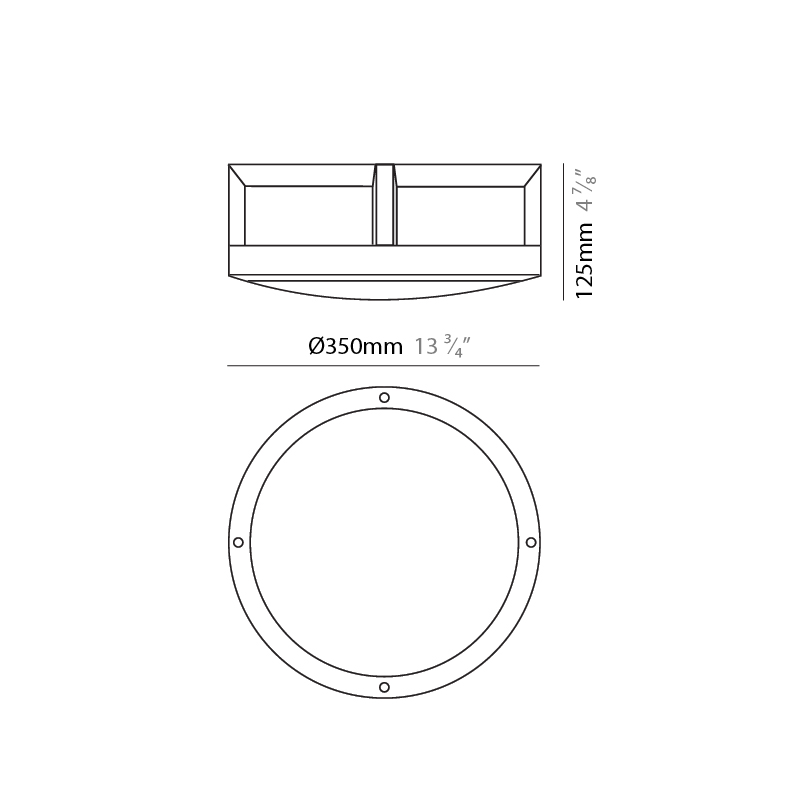

Cerkio XL by Side – 13 3/4″ x 4 7/8″ Surface, Ceiling Surface offers high performance and quality material | Zaneen Exterior / Line art

Ceiling
Included or excluded LED driver/transformer/ control gear
Dimmable
Color rendering index

>90 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

1276 / 1332
CSA Certified to UL and CSA Standards
Protected against ingress of dust; protected against jets of water
Protected against 20 joules impact (equivalent to 5.0kg mass dropped from 400mm above the surface)

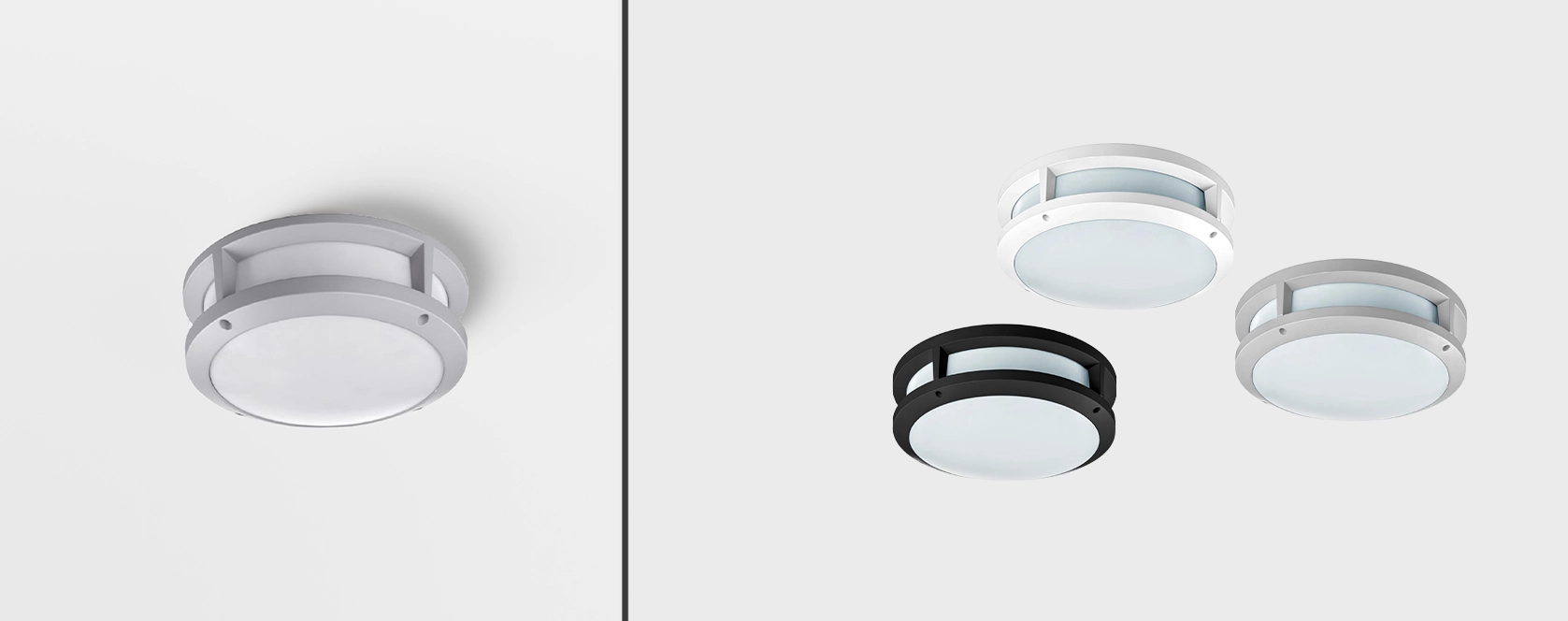

Fixture Finishes

WHI - White BLK - Black GRY - Gray
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
