Series: Dot Me Up
Brand: Platek
Platek products
Division: Exterior
Exterior products
Mounting Type: Post
Post products
Mounting Location: In-Ground
In-Ground products
Subcategory: Bollard - Garden
Bollard - Garden products



Physical

Shape: Round
Diameter (mm): 37
Diameter (in): 1 7⁄16
Height (mm): 405
Height (in): 15 15⁄16
Max. Overall Height (mm): 575
Max. Overall Height (in): 22 5⁄8
Light Distribution: Direct
Diffuser: PMMA - Opal
Fixture Finish: SST
see color chart below
Fixture Material: Stainless Steel AISI 316L



Electrical

Lamp Type: LED
Input Wattage (W): 2.02
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 120
Nominal Lumen (lm): 175
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 93



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
IK Rating: IK05





Dot Me Up Base Model Number: E9B307- New

Series Description

Dot Me Up is a bollard series that offers a delicate blend of nature and minimalism, featuring a floral design that integrates seamlessly into its surroundings. Its subtle lines and understated form enhance garden spaces with soft, upward illumination, while adjustable stem lengths provide flexibility for various settings, ensuring every corner of an outdoor space is beautifully lit. Combining efficient LEDs, expert craftmanship and technical design, Dot Me Up creates an understated yet impactful lighting solution.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DND008024MA MeanWell - APV-8-24 - Non-dimmable - 8W - 24V - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DTM0300024SDW SC Power / KVG-24030-DWJ - Phase Dimming [120Vac] (Leading/trailing edge) / 0-10Vdc Dimming / 1-10Vdc Dimming - 100-0% Dimming Range - 3-30W - 24Vdc - 120/277Vac - LED power supply w/UL Approved Enclosure [Dry/Damp/Wet]

Also Available within Series New Series

Dot Me Up by Platek – 1 7/16″ x 8 1/16″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior E9B306- Bollard, 205mm, 2.20W LED, 2700K / 3000K, 120lm, Beam 93° - Stainless Steel
New
Dot Me Up by Platek – 1 7/16″ x 15 15/16″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior E9B307- Bollard, 405mm/15 151/6", 2.20W LED, 2700K / 3000K, 120lm, Beam 93° - Stainless Steel
New

Downloads

Request Files

Dot Me Up by Platek – 1 7/16″ x 15 15/16″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior

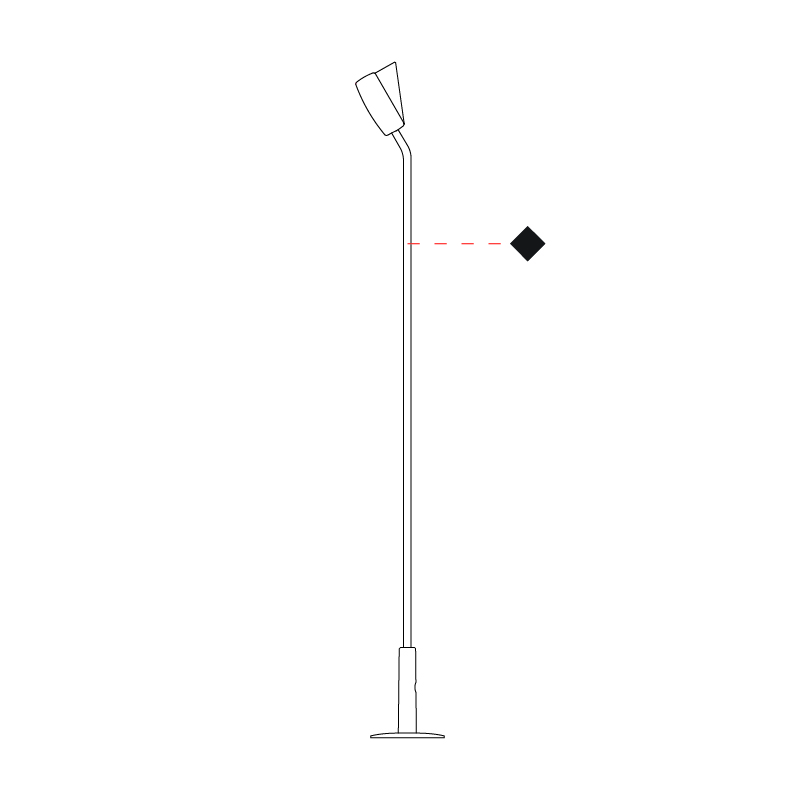

Dot Me Up by Platek – 1 7/16″ x 15 15/16″ Post, Bollard - Garden offers high performance and quality material | Zaneen Exterior / Line art

Direct
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

120
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 0.7 joules impact (equivalent to 0.25kg mass


Fixture Finishes

SST - Stainless Steel Inox
