Recessed

Downloads Features Finishes Inspiration

General

Reset

Series: Micro

Partner: Platek

Division: Exterior

Installation: Recessed

Product Type: Drive Over

Mounting Location: In-Ground

Light Distribution: Asymmetric

Physical

Shape: Round

Diameter (mm): 95

Diameter (in): 3 ³⁄₄

Height (mm): 97

Height (in): 3 ¹³⁄₁₆

Weight (kg): 0.55

Weight (lbs): 1.2

Load Resistance (kg): 2000

Load Resistance (lbs): 4409

Installation Requirement: Installation in sleeve set in concrete with a 20-30 cm gravel drain bed

Diffuser: Clear tempered glass

Fixture Finish: SST

see color chart below

Fixture Material: Aluminum Die Cast

Cable Details: Supplied with 1 power cable 5mm in length

Electrical

Lamp Type: LED

Input Wattage (W): 2

Total Output Wattage (W): 2

Driver Included: No

Driver Location: Remote

Driver Type: Constant Current - Universal

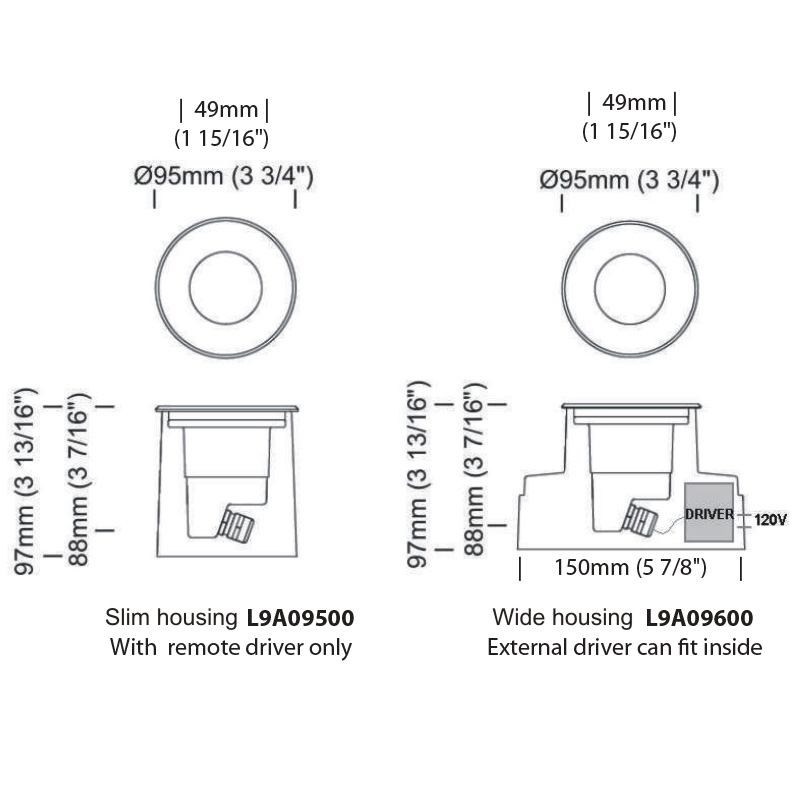

Housing: (Not included - see components) L9A09600 allows for external driver (non-dimming - 120 / 277Vac [-25

Input Voltage (V): 120 - 277

Constant Current (MA): 700

LED

Number of LEDs: 1

Color Temperature (°K): 3000

Max. Delivered Lumen (lm): 130

Nominal Lumen (lm): 250

CRI: >80 CRI

Optical

Optic°: Asymmetric

Beam Angle: 62

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP68

IK Rating: IK10

Micro Model Number: E9I141- : E9I141-30K Inquire About Quick Ship

Series Description

Micro stands for pure light, delivering a bright beam that stands out when switched on and vanishes from view when off. Its ease of installation makes it versatile for use as a single light point or in a series, suitable for both floor and ceiling applications. With monochromatic or dynamic light options, Micro can accentuate architectural features like columns and statues beautifully. This drive-over and recessed light undergoes a rigorous galvanic anodizing process, including mechanical satin finishing, surface degreasing, anodic oxidation, and final fixing. The product is then painted through a double pass in-line process, creating a thick protective layer that shields against atmospheric agents and UV rays.

Manufactured in Italy, by Platek.

Also Available within Series

	E9I141-	Micro 900 - Drive-over / Wall Mount - Recessed - 2W (1 LED) - 3000K / 4000K - Optic; Asymmetric 62° - Stainless Steel Flange
	E9I141- : E9I141-30K	Micro 900 - Drive-over / Wall Mount - Recessed - 2W (1 LED) - 3000K - 130lm - Optic; Asymmetric 62° - Stainless Steel Flange
	E9I570-	Micro Full Inox - Inground - 5.9W -3 LED - 3000K / 4000K - Optics: 12° / 33° / 44°
	E9I630-	Micro 900 - Drive-over / Wall Mount - Recessed - 6W (4 LED) - RGBW - Optics 12° / 33° / 44° - Stainless Steel Flange - DMX Dimming
	E9Q042-	Micro 900 - Ceiling - Recessed - 5.9W (3 LED) / 2W (1 LED) - 3000K / 4000K - Optics: 9° / 33° / 44° / ASY - Stainless Steel
