Recessed

Downloads Features Finishes Inspiration

General

Reset

Series: Mini

Subseries: Mini SS - Drive Over

Partner: Platek

Division: Exterior

Installation: Recessed

Product Type: Uplight

Mounting Location: In-Ground

Light Distribution: Uplight

Physical

Shape: Round

Diameter (mm): 152

Diameter (in): 6

Depth (mm): 80

Depth (in): 3 ¹⁄₈

Weight (kg): 1.5

Weight (lbs): 3.3

Load Resistance (kg): 2500

Load Resistance (lbs): 5511

Installation Requirement: Installation with L9A08800 sleeve set in concrete requires a 20-30 cm gravel drain bed

Screws: A4 stainless steel

Diffuser: Clear tempered glass

Fixture Finish: SST

see color chart below

Fixture Material: Aluminum Die Cast

Cable Details: Supplied with 1 power cable 1m in length

Electrical

Lamp Type: LED

Input Wattage (W): 10.5

Total Output Wattage (W): 9

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - 120 / 277Vac

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

LED

Number of LEDs: 6

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 775 - 955 / 805 - 995

Nominal Lumen (lm): 1140 / 1200

CRI: >80 CRI

Lamp Life (hrs): 60000

Optical

Optic°: 9 / 28 / 44

Adjustability: Tilt ±5°

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP68

IK Rating: IK10

Bug Rating: B0 U4 G0

Upon Request: Higher Maximum Ambient Temperature

Mini Model Number: E9I254-

Specify

Base Model Number:
E9I254-

Mini SS - Drive Over - Recessed - ⌀152mm - 6″ - 10.5W LED - 3000 / 4000°K - Clear tempered glass

Final Option Selection

Color Temperature

Lens Options

Reset

Undo

Reset

Undo

Model Number: E9I254- -

Get Spec Sheet

Series Description

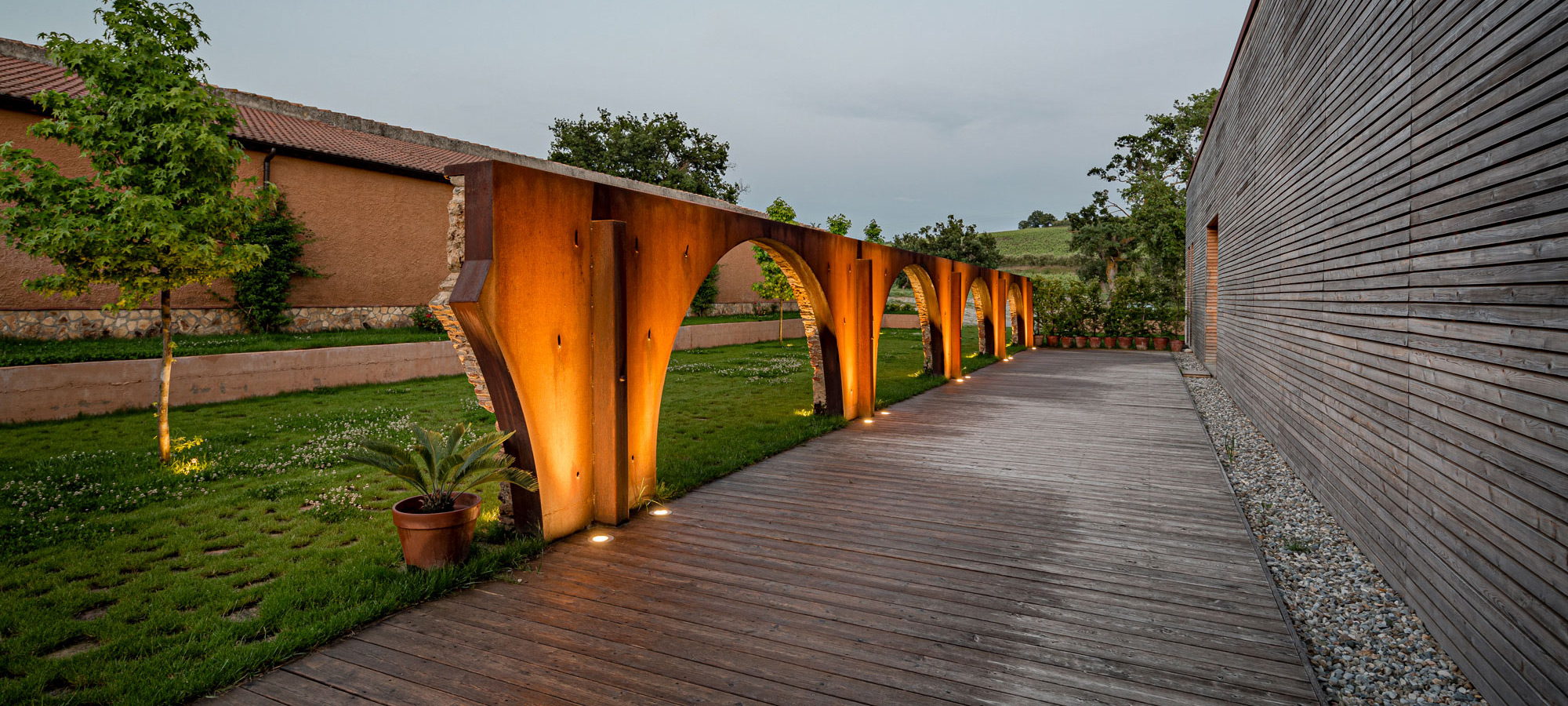

Mini is a collection of recessed drive over and roll over lights. The drive over has a flat design, handling a weight capacity up to 2500 Kg and impact protection up to IK10. The flat version is available in three construction combinations: full aluminum (black finish), aluminum body with stainless steel ring, and Full Inox.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DTM0090500ES	ERP - ESS010W-0500-18 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 9W - 500mA - 120 / 277Vac - LED power supply
	E9A08800	1200 Mini - Sleeve Ø 140mm, H. 100mm with a 200 x 200mm square base
	E9A08900	1200 Mini - Sleeve Ø 140mm, H. 230mm
	ENCP3	Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image	SKU	Description	Datasheet
	E9A02200	IP68 gel connector 3x4 mm^2- IP68 gel connector, suitable for 9.5 - 12 mm Ø cables, max. 3 x4 mm^2
	E9A06500	Elliptical filter
	E9A07000	Sandblasted filter
	E9A25400	IP68 Gel Connector for parallel connection - max. 4 x 1.5 mm^2 Ø4.5 - 8.5 mm
	E9A33600	IP68 Gel Connector - 3 x 1.5mm^2

Also Available within Series

	E9I199-	Mini 1200 - Drive-over - ∅140mm / 5 1/2" - 10.5W (6 LED) - 3000K / 4000K - Optics 9° / 28° / 44° / ASY
	E9I254-	Mini 1200 - Drive-over - Inground - Adjustable - ∅152mm / 6" - 10.5W (6 LED) - 3000K / 4000K - Optics 9° / 28° / 44°
