Myto – Zaneen
Surface
Myto - Surface

Downloads Finishes Inspiration

General

Reset
Series: Myto
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Wall Surface
Wall Surface products
Mounting Location: Wall
Wall products
Light Distribution: Direct
Direct products



Physical

Shape: Oval
Length (mm): 503, 1003, 1503
Length (in): 19 13⁄16, 39 1⁄2, 59 3⁄16
Width (mm): 25
Width (in): 1
Height (mm): 43
Height (in): 1 11⁄16
Weight (kg): 0.55
Diffuser: PMMA - Opal
Fixture Finish: ANS
see color chart below
Fixture Material: Aluminum Alloy
Cable Details: Supplied with Through-wiring power supply cable length 015m with IP68 4-poles connectors



Electrical

Lamp Type: LED
Input Wattage (W): 8, 16, 24
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120, 120 - 277
Output Voltage (V): 48
Upon Request: 0-10V Dimming / Phase Dimming (120Vac Only)



LED

Number of LEDs: 98, 196, 294
Color Temperature (°K): 3000 / 4000 / 5000
CRI: >80 CRI
Lamp Life (hrs): 60000



Optical

Beam Angle: 120



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK08





Myto 6 matching products New Series

Myto by Diamante – 19 13/16″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W007- Myto 500T - Surface Linear Wall, 503mm/19 13/16", 98 LED, 8W, 3000K / 4000K / 5000K , Max 675lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New
Myto by Diamante – 19 13/16″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W008- Myto 500T - Surface Linear Wall, 503mm/19 13/16", 98 LED, 8W, 3000K / 4000K / 5000K , Max 580lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New
Myto by Diamante – 39 1/2″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W009- Myto 1000T - Surface Linear Wall, 1003mm/39 1/2", 196 LED, 16W, 3000K / 4000K / 5000K , Max 1530lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New
Myto by Diamante – 39 1/2″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W010- Myto 1000Q - Surface Linear Wall, 1003mm/39 1/2", 196 LED, 16W, 3000K / 4000K / 5000K , Max 1155lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New
Myto by Diamante – 59 3/16″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W011- Myto 1500T - Surface Linear Wall, 1503mm/59 3/16", 294 LED, 24W, 3000K / 4000K / 5000K , Max 2025lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New
Myto by Diamante – 59 3/16″ x 1 11/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E15W012- Myto 1500Q - Surface Linear Wall, 1503mm/59 3/16", 294 LED, 24W, 3000K / 4000K / 5000K , Max 1735lm, CRI:80, 120° Opal Diffuser, Non-Dimming - Anodized Silver - Beam Angles - 8°, 35°, 50°, 45°x8°, 8°x45°, 75°x40°, 100°
New

Series Description

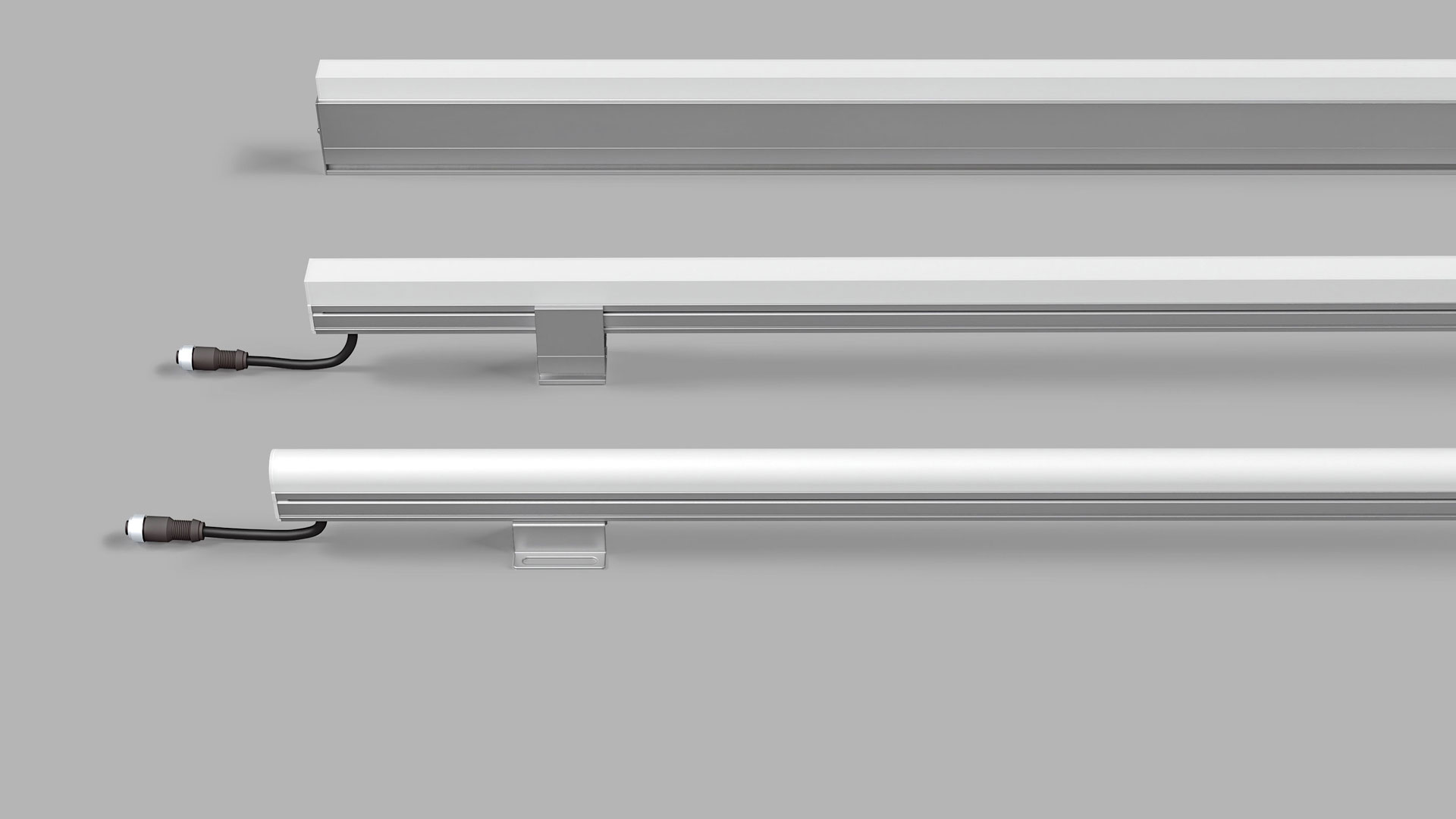

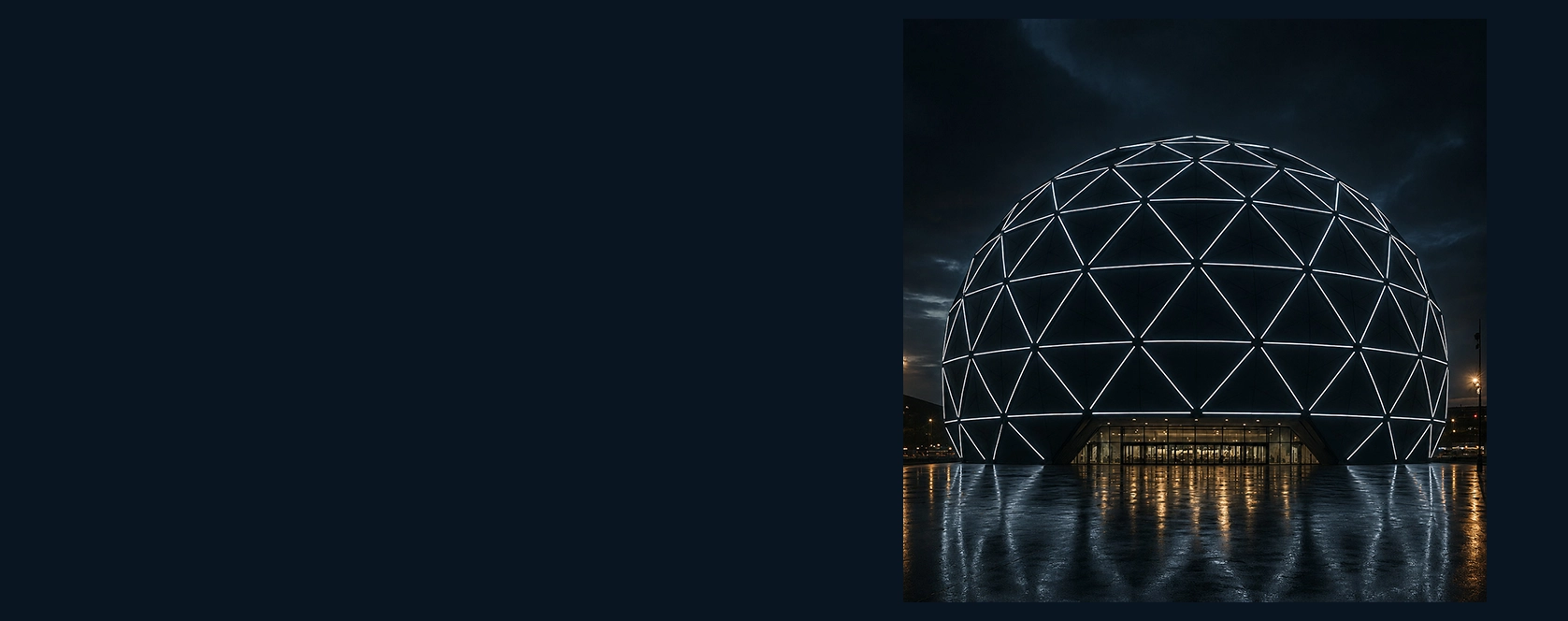

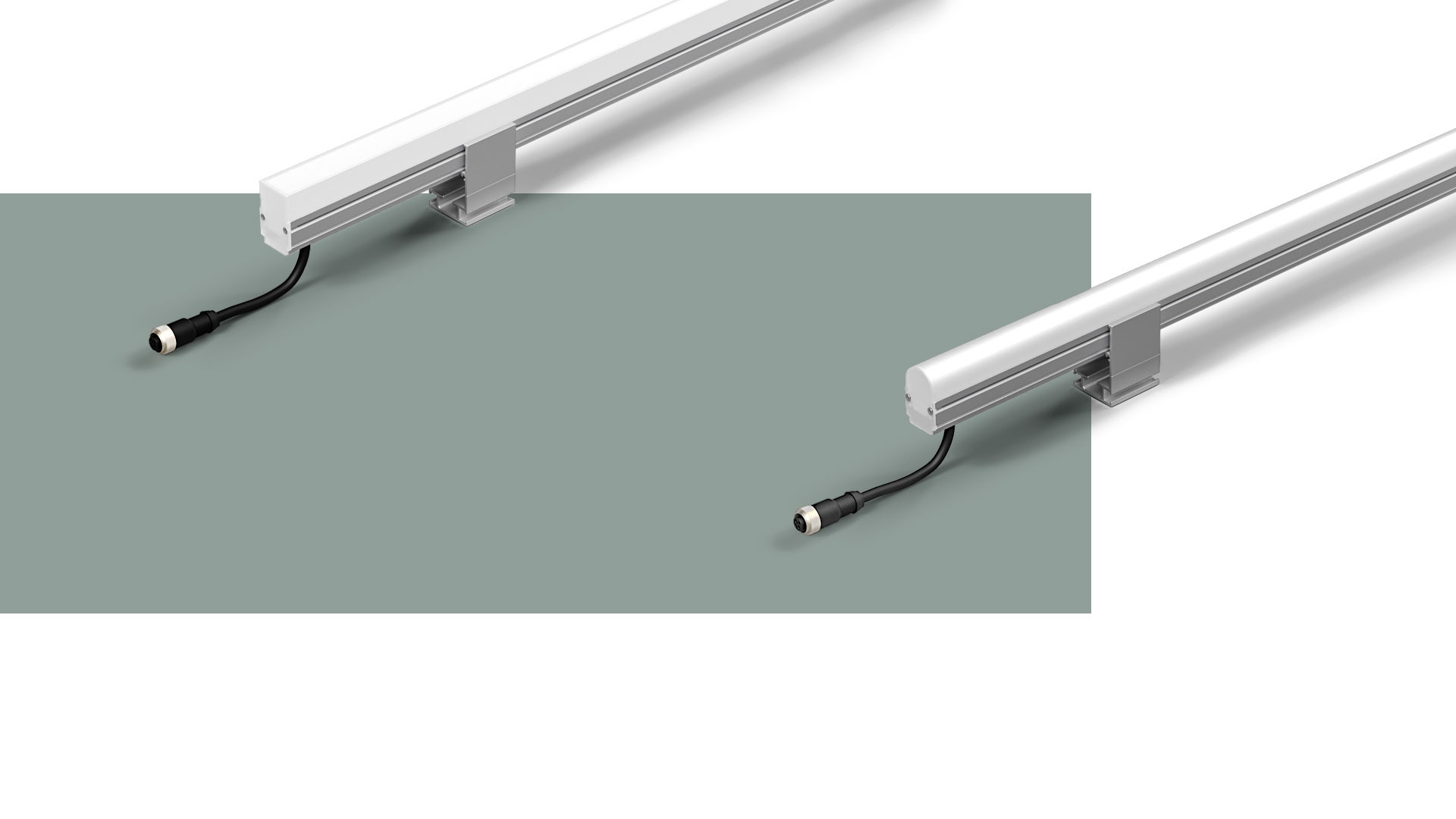

Myto is a cutting-edge lighting solution designed to enhance outdoor spaces with precision and versatility. Rated IP66 and IP67 for durability, it offers direct view, accent, and contour lighting with mid-power LEDs that can be individually controlled every 10 cm. Available in module lengths of 500 mm, 1000 mm, and 1500 mm, with power options ranging from 8W to 24W, Myto provides diffused illumination tailored to your needs. Choose from three color temperatures (3000K to 6000K) or dynamic RGB and RGBW for vibrant effects. Ideal for media façade illumination, its modular design ensures easy positioning, installation-friendly through-wiring, and seamless control via DMX. Paired with a remote power supply unit, Myto Redefines outdoor architectural lighting with sophistication and functionality.

Manufactured in Italy, by Diamante.

Downloads

General Datasheet

Finishes/Color

Warranty



Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
