Newline - Surface


General

Series: Newline

Partner: Diamante
Diamante products

Division: Exterior
Exterior products

Installation: Surface
Surface products

Product Type: Uplight
Uplight products

Mounting Location: Above Ground
Above Ground products

Light Distribution: Uplight
Uplight products



Physical

Shape: Cylinder

Length (mm): 512, 1012, 1512

Length (in): 20 316, 39 1316, 59 12

Width (mm): 40

Width (in): 1 916

Height (mm): 22

Height (in): 7/8

Weight (kg): 0.2, 0.4

Diffuser: PMMA - Opal

Fixture Finish: ANS
see color chart below

Fixture Material: Aluminum / Polycarbonate



Electrical

Lamp Type: LED

Input Wattage (W): 7, 14, 21

Dimming: Non-Dimmable

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 24

Upon Request: 0-10V Dimming Phase Dimming DALI Dimming (Contact Zaneen for driver details)



LED

Number of LEDs: 80, 160, 240

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 595 / 645, 1190 / 1295, 1785 / 1940

Nominal Lumen (lm): 1040 / 1135, 2085 / 2265, 3125 / 3400

CRI: >80 CRI

Lamp Life (hrs): 50000



Optical

Beam Angle: 120

Adjustability: Fixed, Tilting



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP66

IK Rating: IK08





Newline 6 matching products New Series

Newline by Diamante – 20 3/16″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0019 Newline, Linear, 512mm/20 3/16", 80 LEDS, 7W, 3000K / 4000K, Max 645lm, CRI: 80, 24Vdc, Anodized Silver (Remote Driver Required)
New
Newline by Diamante – 20 3/16″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0020 Newline, Linear, 512mm/20 3/16", 80 LEDS, 7W, 3000K / 4000K, Max 645lm, CRI: 80, 24Vdc, Adjustable, Anodized Silver (Remote Driver Required)
New
Newline by Diamante – 39 13/16″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0021 Newline, Linear, Linear, 1012mm/39 13/16", 160 LEDS, 14W, 3000K / 4000K, Max 1295lm, CRI: 80, 24Vdc, Anodized Silver (Remote Driver Required)
New
Newline by Diamante – 39 13/16″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0022 Newline, Linear, Linear, 1012mm/39 13/16", 160 LEDS, 14W, 3000K / 4000K, Max 1295lm, CRI: 80, 24Vdc, Adjustable, Anodized Silver (Remote Driver Required)
New
Newline by Diamante – 59 1/2″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0023 Newline, Linear, 1512mm/59 1/2", 240 LEDS, 21W, 3000K / 4000K, Max 1940lm, CRI: 80, 24Vdc, Anodized Silver (Remote Driver Required)
New
Newline by Diamante – 59 1/2″ x 7/8″ Surface, Uplight offers high performance and quality material | Zaneen Exterior E15G0024 Newline, Linear, 1512mm/59 1/2", 240 LEDS, 21W, 3000K / 4000K, Max 1940lm, CRI: 80, 24Vdc, Adjustable, Anodized Silver (Remote Driver Required)
New

Series Description

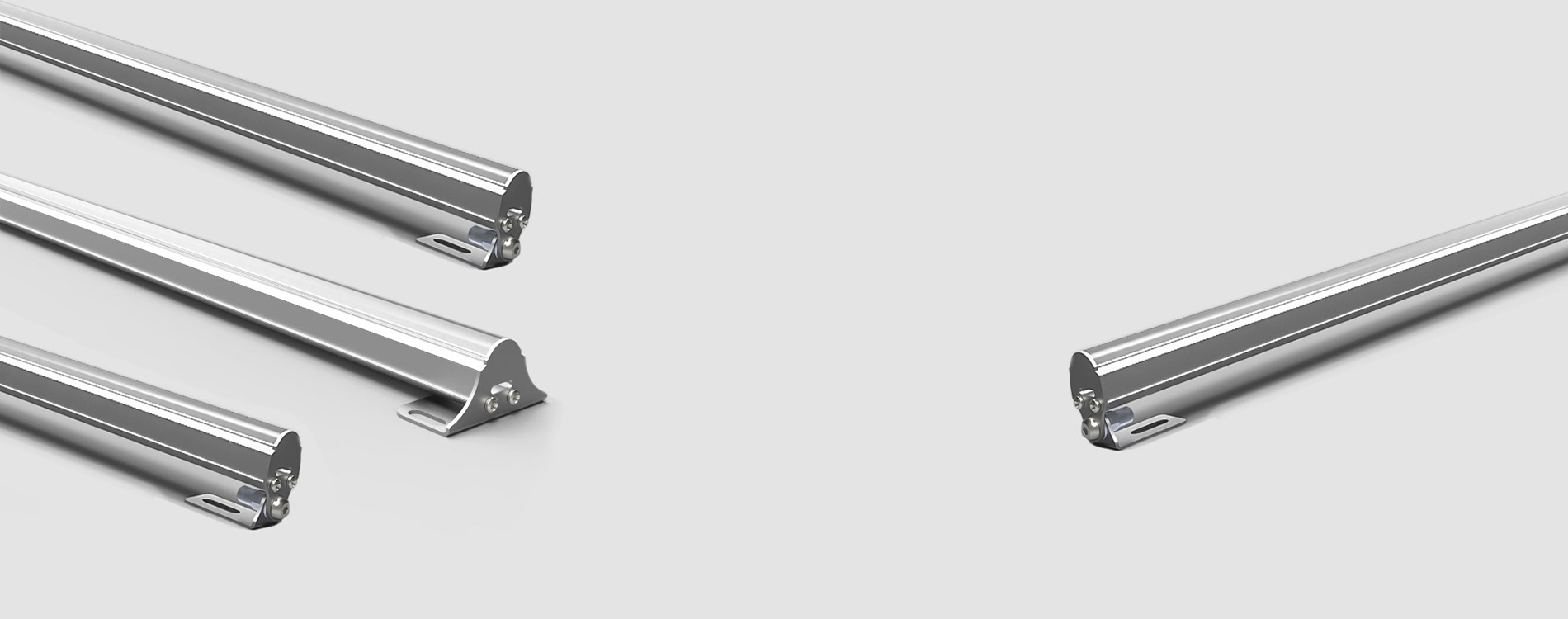

Newline is a high-performance linear fixture designed for direct vision accents and contours. Engineered as a professional modular system, Newline offers precision illumination with medium-power LEDs and a diffused light effect for seamless integration into architectural and commercial projects. Newline is perfect for architectural highlights, ambient lighting, and creative design applications, as it delivers a sleek, modern lighting solution tailored for professionals seeking versatility, performance, and style.

Manufactured in Italy, by Diamante



Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
