Shield by Platek | Zaneen Exterior
Recessed
Shield - Recessed

Finishes Inspiration

General

Reset
Series: Shield
Partner: Platek
Platek products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Uplight
Uplight products
Mounting Location: In-Ground
In-Ground products
Light Distribution: Direct
Direct products



Physical

Shape: Cylinder
Diameter (mm): 95, 152, 224
Diameter (in): 3 3⁄4, 6, 8 13⁄16
Height (mm): 238, 280, 470
Height (in): 9 3⁄8, 11, 18 1⁄2
Diffuser: Transparent extra-clear glass
Fixture Finish: BLK / ANT
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED
Input Wattage (W): 5.9, 10, 21
Total Output Wattage (W): 4.5
Driver Included: No, Yes
Driver Location: Remote
Driver Class: Class 1, Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): Max 465, Max 970, Max 2560
Nominal Lumen (lm): 570, 1140, 2700
CRI: >80 CRI
Lamp Life (hrs): 50000, 60000



Optical

Beam Angle: 9 / Asymmetrical, 12 / 44



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP68
IK Rating: IK10





Shield 3 matching products

Shield by Platek – 3 3/4″ x 9 3/8″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E9I643- Shield Small - Recessed In Ground, 238mm - 5.9W LED, 2700K / 3000K / 4000K, Max 465lm, CRI:80 - Non-Dimming
Shield by Platek – 6″ x 11″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E9I644- Shield Medium - Recessed In Ground, 280mm/11" - 10W LED, 2700K / 3000K / 4000K, Max 970lm, CRI:80 - Non-Dimming
Shield by Platek – 8 13/16″ x 18 1/2″ Recessed, Uplight offers high performance and quality material | Zaneen Exterior E9I645- Shield Large- Recessed In Ground, 470mm - 19W LED, 2700K / 3000K / 4000K, Max 2560lm, CRI:80 - Non-Dimming

Series Description

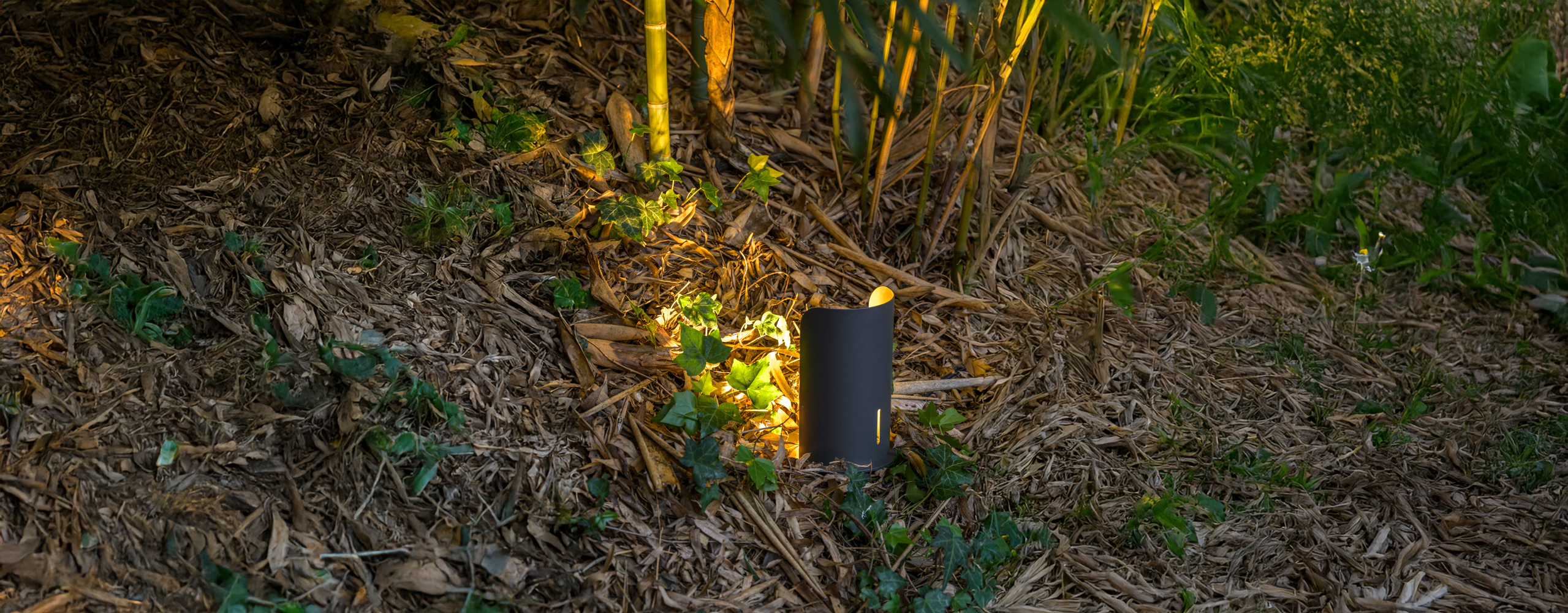

Shield is an in-ground recessed luminaire collection that embodies pure essentiality, perfect for adding decorative elements to your outdoor spaces. Available in three sizes, Shield is designed to highlight architectural shapes with unparalleled elegance. It stands out with its unique design, featuring a curved wall that gracefully rises on one side of the recessed light. This distinctive feature creates a beautiful diffused light source, making it ideal for accentuating expansive landscape spaces. Illuminate your outdoors with Shield, where innovative design meets the functionality of an exterior light fixture, elevating the aesthetics of surroundings.

Manufactured in Italy, by Platek.



Fixture Finishes

BLK - Black ANT - Anthracite
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
