Zero4 – Zaneen
Suspension
Zero4 - Suspension

Downloads Finishes Inspiration

General

Reset
Series: Zero4
Partner: Side
Side products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle
Length (mm): 600
Length (in): 23 5⁄8
Width (mm): 300
Width (in): 11 3⁄4
Height (mm): 62
Height (in): 2 3⁄8
Max. Overall Height (mm): 2062
Max. Overall Height (in): 81 3⁄16
Fixture Finish: WWH
see color chart below
Fixture Material: Aluminum
Cable Details: 2000mm / 78 3/4" Transparent Cable



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 25
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 2678 / 2866
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Zero4 Model Number: A1010063 New

Specify

Series Description

Zero4 is a wall-mounted and suspended luminaire defined by clean geometry and a soft, enveloping light. Two folded surfaces meet in a fluid form, shaping the light to create a balanced, glare-free illumination that enhances visual comfort.

Designed for versatility, it adapts naturally to a wide range of environments. Its customizable front panel allows for graphic integration, making it suitable for applications such as room identification or branded spaces.

Minimal yet expressive, Zero4 combines refined materials with controlled, comfortable light, offering a solution that is both functional and visually distinctive.

Manufactured in Italy, by Side.

Also Available within Series New Series

Zero4 by Side – 11 3/4″ x 2 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design A1010062 Zero4 Suspension, 300mm/11 3/4" x 300mm/11 3/4", 10W LED, 2700K / 3000K, Max 1136 lm, CRI>90, Wrinkling White
New
Zero4 by Side – 23 5/8″ x 2 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design A1010063 Zero4 Suspension, 600mm/23 5/8" x 300mm/11 3/4", 25W LED, 2700K / 3000K, Max 2866 lm, CRI>90, Wrinkling White
New
Zero4 by Side – 35 3/8″ x 2 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design A1010064 Zero4 Suspension, 900mm/35 3/8" x 300mm/11 3/4", 39W LED, 2700K / 3000K, Max 4616 lm, CR>90, Wrinkling White
New
Zero4 by Side – 11 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design A1030012 Zero4 Surface Wall, 300mm/11 3/4" x 300mm/11 3/4", 10W LED, 2700K / 3000K, Max. 1136 lm, CRI>90, Wrinkling White
New
Zero4 by Side – 23 5/8″ x 11 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design A1030013 Zero4 Surface Wall, 600mm/23 5/8" x 300mm/11 3/4", 25W LED, 2700K / 3000K, Max 2866 lm, CRI>90, Wrinkling White
New
Zero4 by Side – 35 3/8″ x 11 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design A1030014 Zero4 Surface Wall, 900mm/35 3/8" x 300mm/11 3/4", 39W LED, 2700K / 3000K, Max 4616 lm, CR>90, Wrinkling White
New

Downloads

Request Files

Zero4 by Side – 23 5/8″ x 2 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

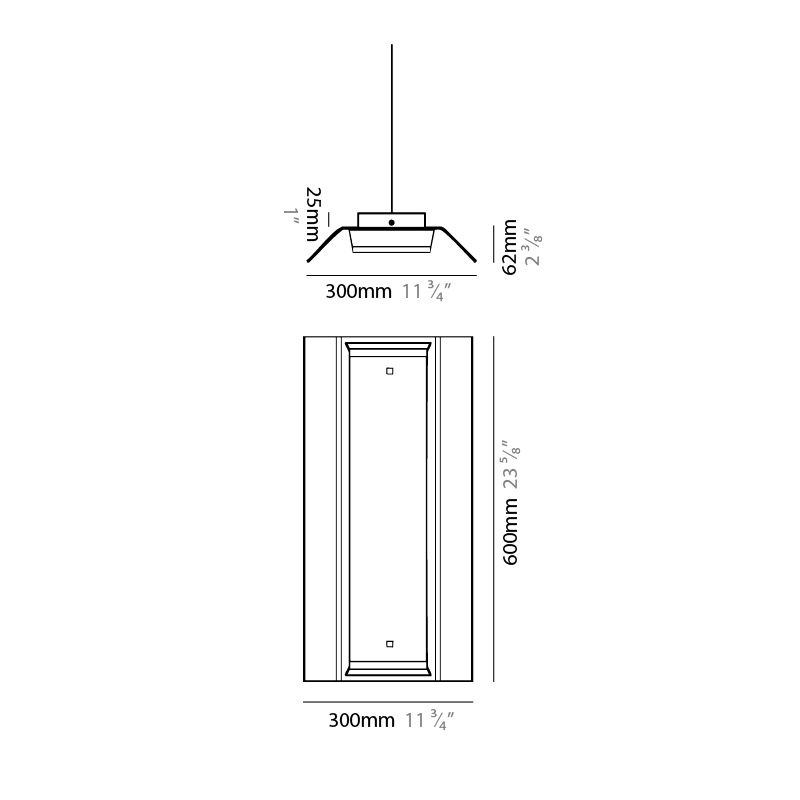

Zero4 by Side – 23 5/8″ x 2 3/8″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design / Line art

Ceiling
Direct
Included or excluded LED driver/transformer/ control gear
Length of suspension cable
Color rendering index

>90 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

2678 / 2866
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
