Series: Robusto
Partner: Zaneen
Zaneen products
Division: Architectural
Architectural products
Installation: Recessed
Recessed products
Product Type: Downlight
Downlight products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Round
Diameter (mm): 82
Diameter (in): 3 1⁄4
Height (mm): 75
Height (in): 2 15⁄16
Weight (kg): 0.235
Weight (lbs): 0.52
Screws: AISI 316L Anti-Vandal
Fixture Finish: WHI / BLK
see color chart below
Fixture Material: Aluminum Die Cast
Cable Details: 30 cm PVC + PVC 2x0
Cut-out Measurements: 74mm / 2 15/16"



Electrical

Lamp Type: LED
Input Wattage (W): 11.8
Dimming: Dali Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 500



LED

Color Temperature (°K): 1800-3000 - Dim to Warm
Max. Delivered Lumen (lm): 28 - 1045
CRI: >90 CRI
Lamp Life (hrs): 100000
Special LEDs offerings: Dim to Warm



Optical

Optic°: 20 / 40
Beam Angle: Narrow / Wide



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20
Bug Rating: B1 U0 G0





Base Model Number: A12R0006-

Specify

Description

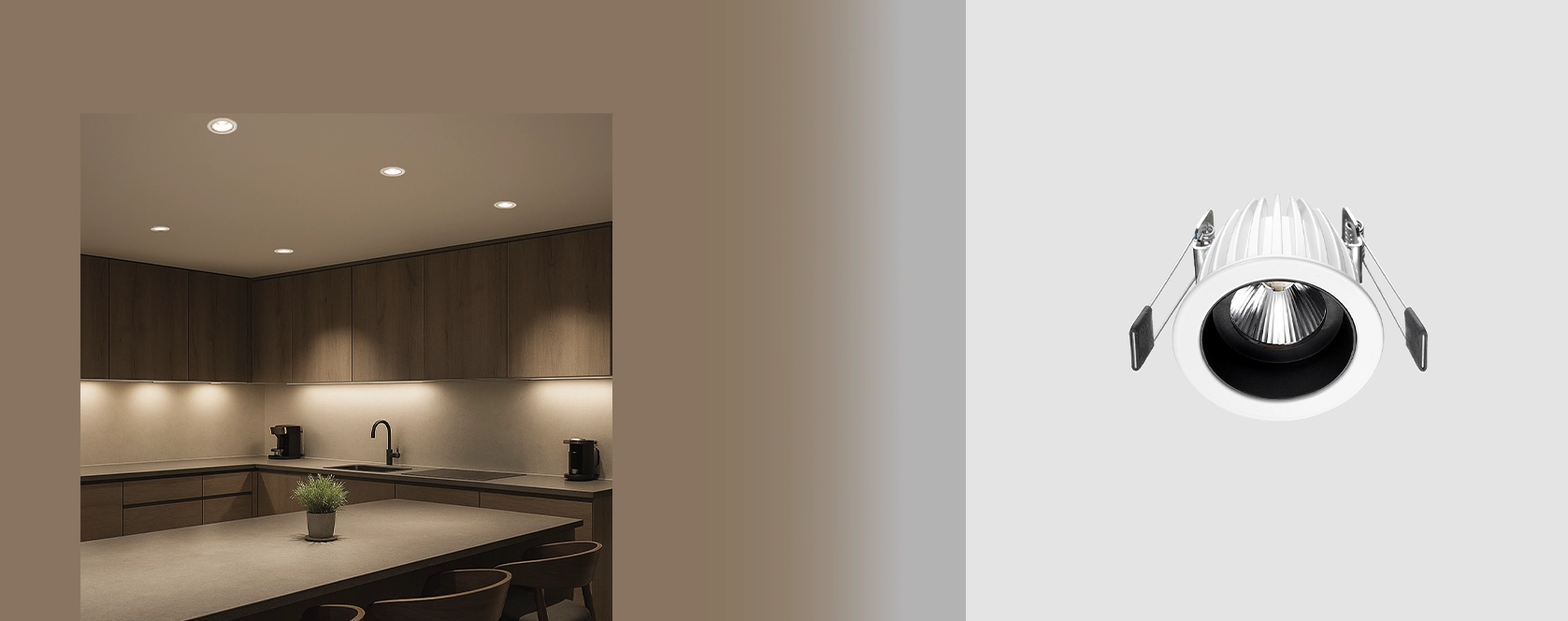

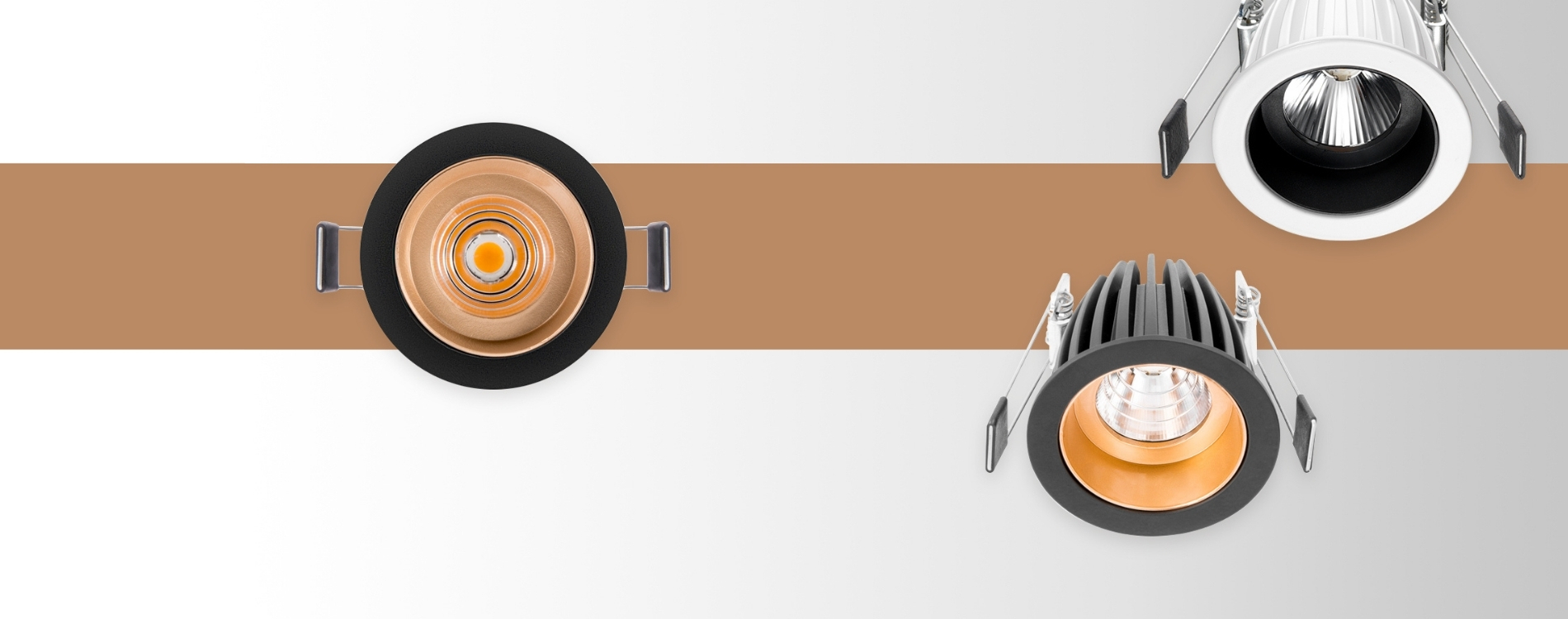

Robusto is a recessed downlight LED luminaire that features high efficiency reflector technology for excellent glare control and uniformity. It has been carefully engineered for both precise accent lighting and general ambient lighting, and is available with a choice of beam angles. Constructed from die-cast aluminum, Robusto is also available with a housing box for concrete ceilings.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
by Unonovesette – 16 1/8″ x 5 5/16″ , offers high performance and quality material | Zaneen Exterior E12A0079 Maxima - Housing Box for Concrete Ceiling

Product Accessories

Image SKU Description Datasheet
by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0042 Honeycomb louver Maxima/Optima/Ultra
by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0043 Micro prismatic diffiuser Maxima/Optima/Ultra

Also Available within Series

Robusto by Zaneen – 3 1/4″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A12R0005- Robusto - Recessed - Ceiling - 82mm / 3 3/4" - 12.9W LED - 2700K / 3000K / 4000K - Optics 20° / 32° / 40° - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Robusto by Zaneen – 3 1/4″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural A12R0006- Robusto - Recessed - Ceiling - 82mm / 3 3/4" - 11.8W LED - Dim to Warm - Optics 20° / 40° - Dimmable - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1

Downloads

Request Files

Robusto by Zaneen – 3 1/4″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Robusto by Zaneen – 3 1/4″ x 2 15/16″ Recessed, Downlight offers LED lighting solutions | Zaneen Architectural

Ceiling
Circle wall or ceiling cut-out

74mm / 2 15⁄16"
Lens

20 / 40
Dimmable
Color rendering index

>90 CRI
Color temperature

1800-3000 - Dim to Warm
Lumen (luminous flux)

28 - 1045
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
