Fino System - Insert - 1420mm / 55 7/8" - 25.3W LED (Zhaga Standard) - 3000K / 3500K / 4000K - CRI >90 – Zaneen

General

Reset
Series: Fino
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products

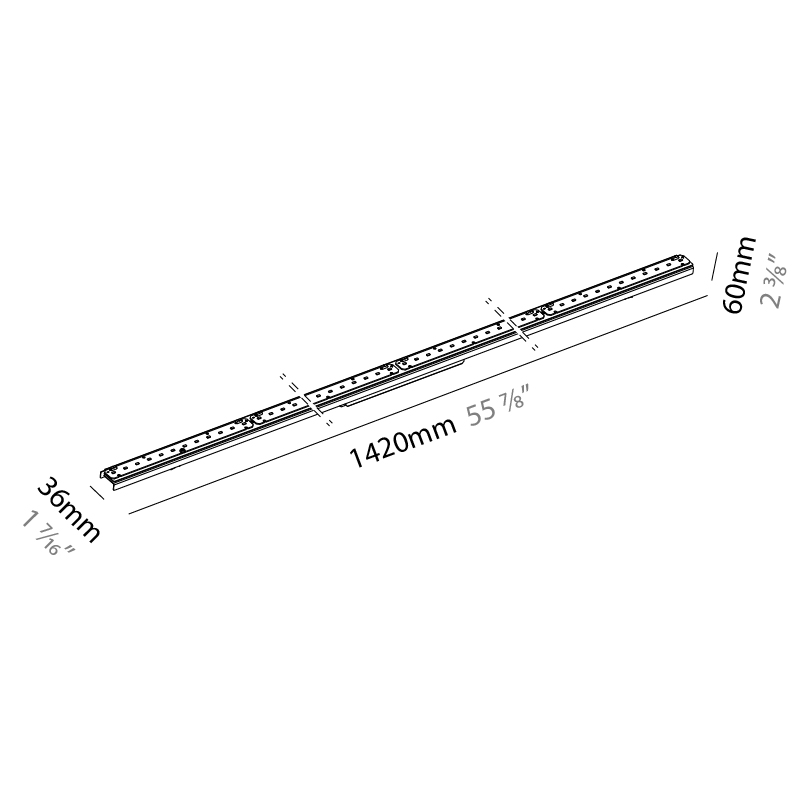

Physical

Shape: Rectangle
Length (mm): 1420
Length (in): 55 7⁄8
Width (mm): 36
Width (in): 1 7⁄16
Height (mm): 60
Height (in): 2 3⁄8
Fixture Material: PMMA / Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 25.3
Total Output Wattage (W): 22.8
Dimming: 0-10V Dimming / Phase Dimming (120Vac Only)
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 400



LED

Color Temperature (°K): 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 2854 / 2954 / 3015
Nominal Lumen (lm): 3550 / 3675 / 3750
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A380223-

Specify

Description

Fino is a surface and suspension light series that brings illumination from another dimension. Fino's allure lies in its minimalist and timeless design, featuring a satin-finished diffuser that encases the entire light source, creating a homogeneous illuminated surface. The square design of Fino disperses light softly and seamlessly throughout the room, creating captivating light objects. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.
