DASH 2100mm - LED 2700K, 5W, 530lm, CRI90 - Black – Zaneen

General

Reset
Series: Code System
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Light Distribution: Indirect
Indirect products



Physical

Shape: Curves

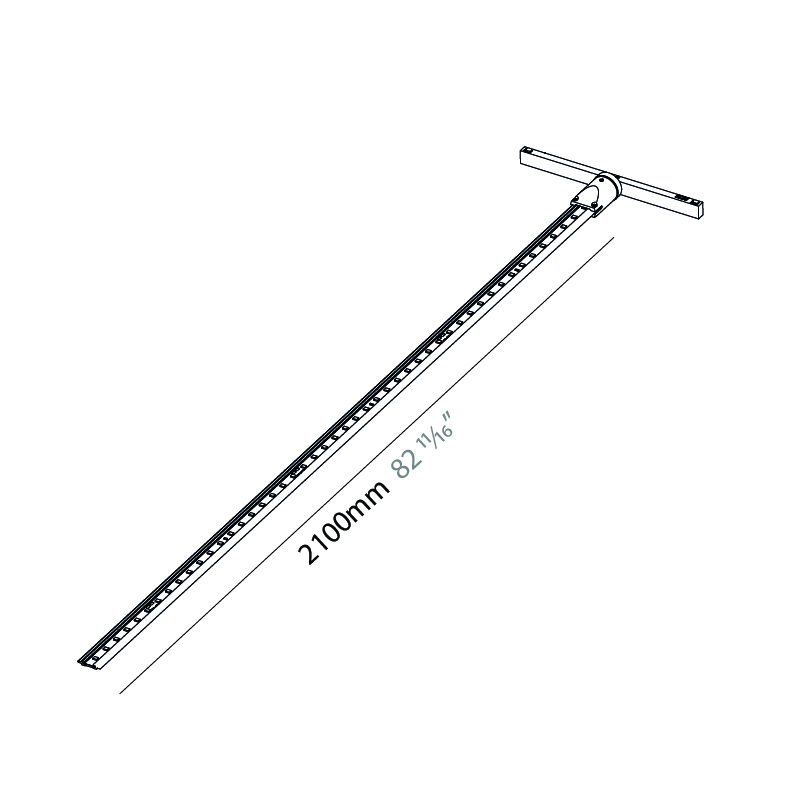

Length (mm): 2100
Length (in): 82 11⁄16
Width (mm): 19
Width (in): 3/4
Height (mm): 22
Height (in): 7/8
Fixture Finish: BLK
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 5
Total Output Wattage (W): 4.6
Dimming: Non-Dimming / DALI Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Housing: ENCP12
Input Voltage (V): 48
Upon Request: 0-10V with EldoLED Bridge



LED

Color Temperature (°K): 2700
Max. Delivered Lumen (lm): 530
Nominal Lumen (lm): 530
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 114



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards
IP rating: IP20





Base Model Number: A3T278

Description

Code System is a groundbreaking fusion of technical lighting engineering expertise and a unique design aesthetic. This innovative track system merges advanced technological know-how with a unique design vision to create a product that could only be realized together. The Code System track lighting can be outfitted with LED light sources, forming a versatile kit of components that allows for limitless possibilities in crafting unique lighting designs. It is the natural evolution of Minimal Track, representing the smallest track possible while enabling individual control of each luminaire and endless configuration options. This track system can be seamlessly integrated onto ceilings or walls, with custom lengths and inserts available to suit any space. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

Code System by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CODE-SUR-SYS Code Minimal Track Modular System

Also Available within Series

Code System by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CODE-SUR-SYS Code Minimal Track Modular System

Downloads

Request Files

Code System by Prolicht – 82 11/16″ x 7/8″ , offers LED lighting solutions | Zaneen Architectural

Code System by Prolicht – 82 11/16″ x 7/8″ , offers LED lighting solutions | Zaneen Architectural

Indirect
Dimmable
Color rendering index

>90 CRI
Color temperature

2700
Lumen (luminous flux)

530
CSA Certified to UL and CSA Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
