Series: Minimal Track
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Trimless
Trimless products
Product Type: Linear Profiles
Linear Profiles products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Rectangle
Length (mm): 1000 / 2000 / 3000
Length (in): 39 3⁄8
Width (mm): 49
Width (in): 1 15⁄16
Height (mm): 15
Height (in): 9/16
Ceiling Thickness (mm): 12.5
Ceiling Thickness (in): 1/2
Min. Recessing Depth (mm): 40
Min. Recessing Depth (in): 1 9⁄16
Weight (kg): 0.462
Fixture Finish: BLK
see color chart below
Fixture Material: Aluminum
Cut-out Measurements: 1



Electrical

Dimming: Non-Dimmable / 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Upon Request: 0-10V Dimming with Tridonic Bridge



LED



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A3T316-

Specify

Description

Minimal Track is a track lighting system that combines pure minimalism with the latest technology. Flexible and almost invisible, with its various corner connectors and individually available curve elements, Minimal Track is truly a playful system that allows for creative design. Select from over 25 standard colors, ensuring limitless customization to complement any interior design. Minimal Track offers a wide variety of inserts and components allowing you to individualize your space with the perfect lighting atmosphere. Modular components including T joins, X joins, and curved sections adapt to any architectural layout.

Manufactured in Austria, by Prolicht.

This component relates to

Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-TRM-SYS Minimal Track Trimless Modular System

Also Available within Series

Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-SUR-SYS Minimal Track Surface Modular System
Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-SUS-RND-SYS Minimal Track Suspension Round Modular System
Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-SUS-SYS Minimal Track Suspension Modular System
Minimal Track by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3MINTRK-TRM-SYS Minimal Track Trimless Modular System

Downloads

Request Files

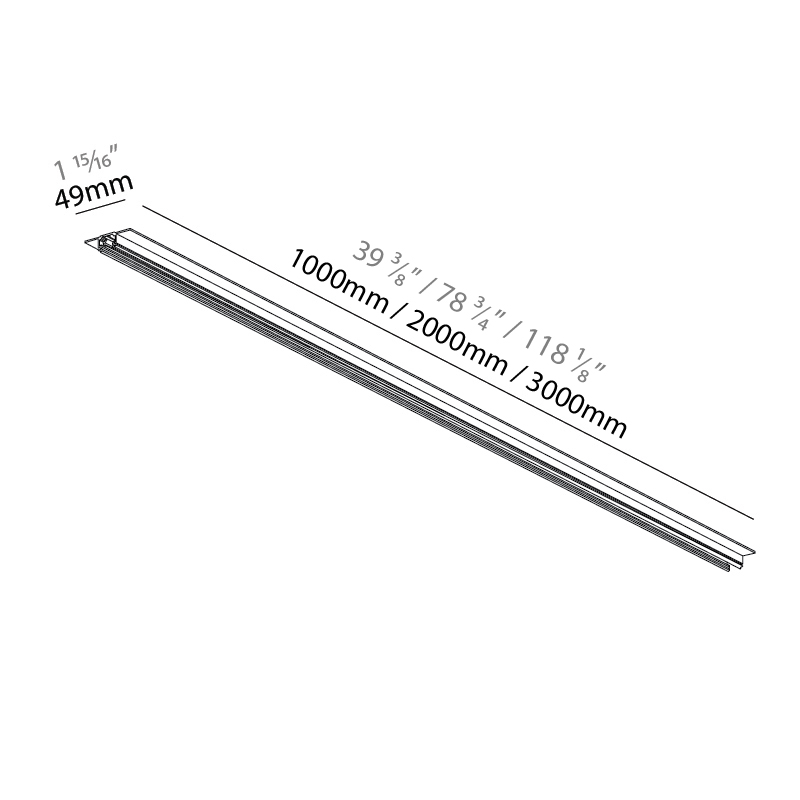

Minimal Track by Prolicht – 39 3/8 / 78 3/4 / 118 1/8″ x 9/16″ Trimless, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Minimal Track by Prolicht – 39 3/8 / 78 3/4 / 118 1/8″ x 9/16″ Trimless, Linear Profiles offers LED lighting solutions | Zaneen Architectural

Ceiling
Square wall or ceiling cut-out

1,005mm/
39 9/
16" /
2,005mm /
78 15/
16" /
3,005mm /
118 5/
16" x 22mm /
7/
8"
Min. Recessing Depth

40mm /
1 9⁄16''
Ceiling thickness

12.5mm /
1⁄2''
Ceiling thickness selection
Dimmable
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
