Series: Clicktrack
Subseries: Clicktrack 30
Partner: Prolicht
Prolicht products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Downlight
Downlight products



Physical

Shape: Round

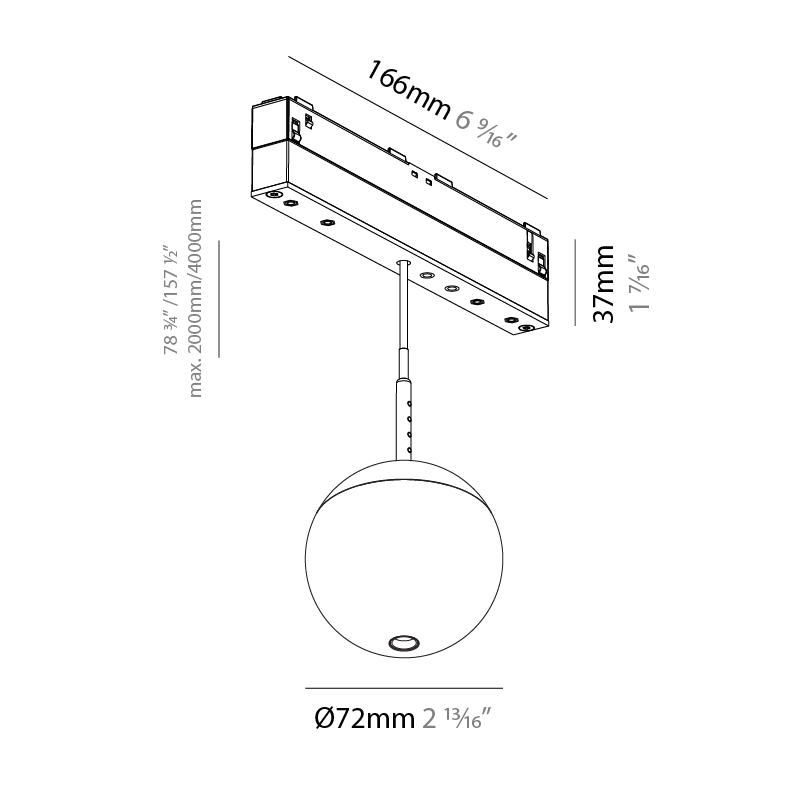

Diameter (mm): 72
Diameter (in): 2 13⁄16
Length (mm): 166
Length (in): 6 9⁄16
Height (mm): 72
Height (in): 2 13⁄16
Fixture Finish: CHR
see color chart below
Fixture Material: Aluminum Die Cast
Cable Details: 2



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 7.6
Total Output Wattage (W): 6.2
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 48



LED

Number of LEDs: 1
Color Temperature (°K): 2700 / 3000 / 3500 / 4000
Max. Delivered Lumen (lm): 283 - 356
Nominal Lumen (lm): 460 - 528
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 32 / 58



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A3T414- New

Specify

Description

ClickTrack is a track system where spots are mounted simply by clicking them into the track, without the need for tools. The cable of the pendulum variants can be flexibly shortened or extended at any time. The great flexibility of the ClickTrack extension system ensures perfectly coordinated lighting concepts, for living areas, in retail, for hotels or in public buildings. Select from 25+ standard colors, ensuring limitless customization to complement any interior design.

Manufactured in Austria, by Prolicht.

This component relates to

Also Available within Series

Clicktrack by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CLK25-TRI-SYS Clicktrack 25 Modular System - Trimless
Clicktrack by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CLK30-SUR-SYS Clicktrack 30 Modular System - Surface Ceiling
Clicktrack by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CLK30-SUS-SYS Clicktrack 30 Modular System - Suspension
Clicktrack by Prolicht – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A3CLK50-TRI-SYS Clicktrack 50 Modular System - Trimless

Downloads

Request Files

Clicktrack by Prolicht – 2 13/16″6 9/16″ x 2 13/16″ Track, Pendant offers LED lighting solutions | Zaneen Architectural

Clicktrack by Prolicht – 2 13/16″6 9/16″ x 2 13/16″ Track, Pendant offers LED lighting solutions | Zaneen Architectural

Ceiling
Color of suspension cable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 3500 / 4000
Lumen (luminous flux)

283 - 356
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

CHR - Chrome
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
