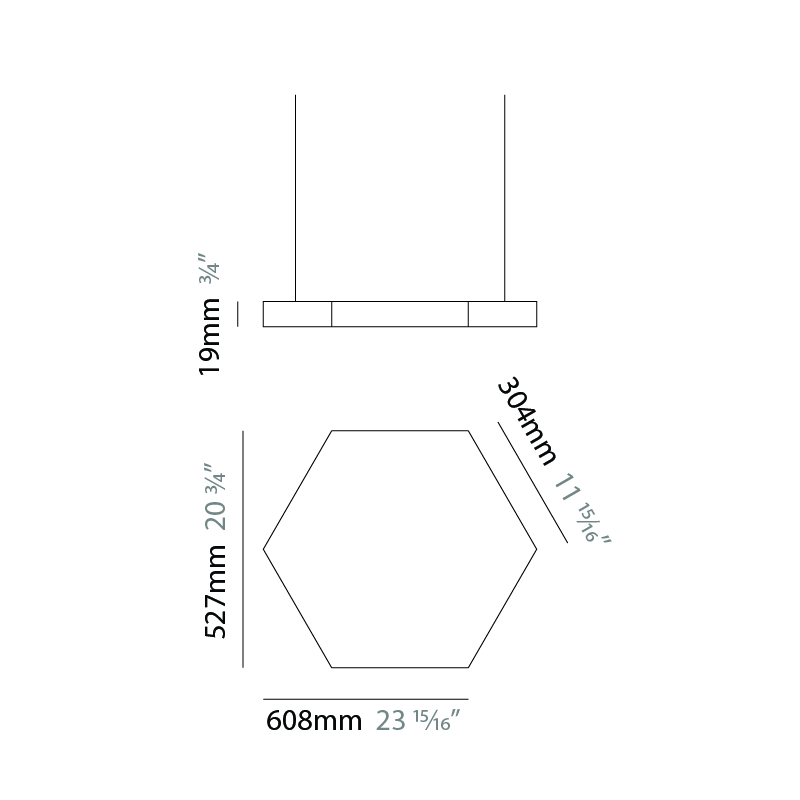

Infinite Hexagon, Suspension Panel, 608mm/23 15/16" x 527mm/20 3/4", 36W LED, 2700K / 3000K / 3500K /4000K, Max 3975lm, CRI:93, IP20 -

Infinite Hexagon

WRITTEN IN THE STARS

Get Inspired

Infinite Hexagon

WRITTEN IN THE STARS

Get Inspired

Infinite Hexagon

WRITTEN IN THE STARS

Get Inspired

Infinite Hexagon

WRITTEN IN THE STARS

Get Inspired

General

Reset

Series: Infinite Hexagon

Partner: Ivela

Division: Architectural

Installation: Suspension

Product Type: Panels

Mounting Location: Ceiling

Light Distribution: Direct

Physical

Shape: Hexagon

Length (mm): 1008

Length (in): 43 ¹¹⁄₁₆

Width (mm): 873

Width (in): 43 ¹¹⁄₁₆

Height (mm): 19

Height (in): 1 ¹⁄₁₆

Max. Overall Height (mm): 3019

Max. Overall Height (in): 118 ⁷⁄_8"

Diffuser: PMMA - Opal

Fixture Finish: WHI / BLK / GLD

see color chart below

Fixture Material: Aluminum

Cable Details: 3

Electrical

Lamp Type: LED

Input Wattage (W): 60

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Housing: ENCP 5 (ERP) ENCP 8 (SC Power

Input Voltage (V): 120 - 277

Output Voltage (V): 24

LED

Color Temperature (°K): 2700 / 3000 / 3500 / 4000

Max. Delivered Lumen (lm): 3600 / 3750 / 3861 / 3975

Nominal Lumen (lm): 7200 / 7500 / 7723 / 7950

CRI: >93 CRI

Lamp Life (hrs): 50000

Optical

Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards

IP rating: IP20

Base Model Number: A51091-

Specify

Base Model Number:
A51091-

Infinite Hexagon - Suspension - Direct - 60W LED - 2700 / 3000 / 3500 / 4000°K - PMMA - Opal

Final Option Selection

Color Temperature

Finish Options

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Model Number: A51091- -

Get Spec Sheet

Description

Infinite Hexagon is a series of surface-mounted ceiling and suspension LED panel lights, distinguished by its striking hexagonal design and trimless design. This series represents a modern evolution in lighting, offering versatility to meet the demands of diverse spaces and applications. Ideal for large-scale settings, Infinite Hexagon excels in corporate environments where high-quality illumination is essential. Available in a selection of sophisticated finishes, Infinite Hexagon provides creative freedom to complement any design vision. Its innovative design and adaptability make it a standout choice for contemporary lighting solutions.

Manufactured in Italy, by Ivela.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DVO1000024EZ	ERP - VZM100W-24 - Programmable - 0-10Vdc Dimming - 90W - 24Vdc - 120 / 277Vac - LED power supply
	ENCP5	Empty Metal Enclosure for Driver - IP20 - Indoor Rated
	ENCP8	Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

	A51091-	Infinite Hexagon, Suspension Panel, 608mm/23 15/16" x 527mm/20 3/4", 36W LED, 2700K / 3000K / 3500K /4000K, Max 3975lm, CRI:93, IP20 -
	A51092-	Infinite Hexagon, Suspension Panel, 908mm/35 3/4" x 527mm/20 3/4", 50W LED, 2700K / 3000K / 3500K / 4000k, Max 5962lm, 24V, CRI:93, IP20 -
	A51093-	Infinite Hexagon, Suspension Panel, 1208mm/47 9/16" x 1047mm/41 1/4", 72W LED, 2700K / 3000K / 3500K / 4000K, Max 7950lm, 24V, CRI:93, IP20 -
	A56192-	Infinite Hexagon, Surface Ceiling Panel, 608mm/23 15/16" x 527mm/20 3/4", 36W LED, 2700K / 3000K / 3500K /4000K, Max 3975lm, CRI:93, IP20 -
	A56193-	Infinite Hexagon, Surface Ceiling Panel, 908mm/35 3/4" x 527mm/20 3/4", 50W LED, 2700K / 3000K / 3500K /4000k, Max 5962lm, 24V, CRI:93, IP20 -
	A56194-	Infinite Hexagon, Surface Ceiling Panel, 1208mm/47 9/16" x 1047mm/41 1/4", 72W LED, 2700K / 3000K / 3500K / 4000K, Max 7950lm, 24V, CRI:93, IP20 -
