NODO LIGHTS - Zoom Adjustable Spot - 1 x 13W LED, 2700K/3000K, 878lm, CRI97, Optic Range: 12° - 46 - – Zaneen

General

Series: Nodo

Partner: Letroh
Letroh products

Division: Architectural
Architectural products

Installation: Track
Track products

Product Type: Spots
Spots products

Mounting Location: Ceiling
Ceiling products

Light Distribution: Adjustable / Direct
Adjustable / Direct products



Physical

Shape: Cylinder

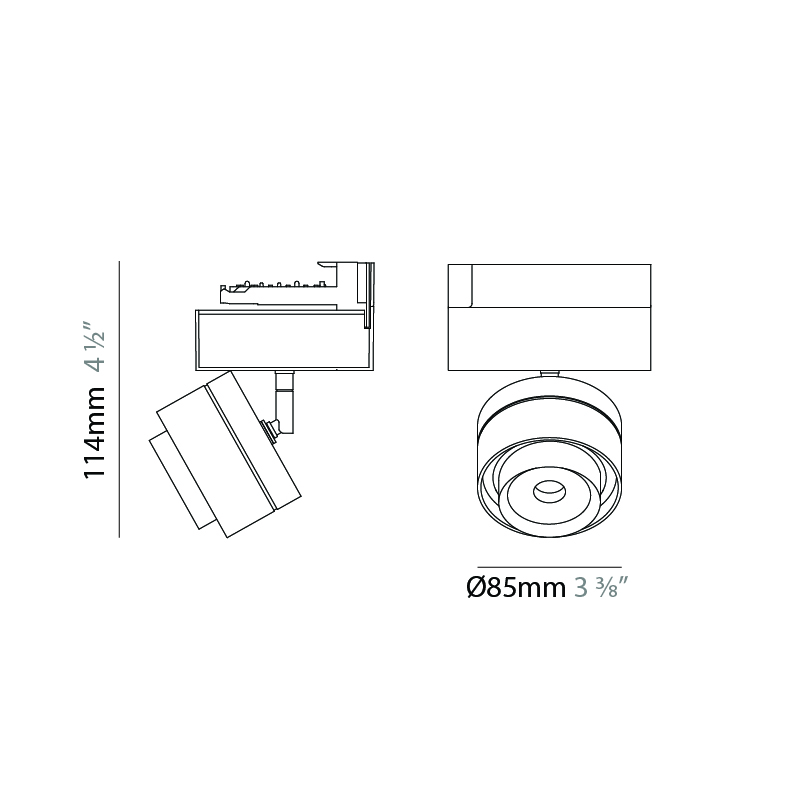

Length (mm): 85

Length (in): 3 38

Height (mm): 114

Height (in): 4 12

Fixture Finish: WHI / BLK
see color chart below

Fixture Material: Aluminum



Electrical

Lamp Type: LED

Input Wattage (W): 13

Dimming: Non-Dimming / Phase Dimming (120vac Only)

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120



LED

Color Temperature (°K): 2700 / 3000

Max. Delivered Lumen (lm): 831 / 878

Nominal Lumen (lm): 1010 / 1068

CRI: >97 CRI

Lamp Life (hrs): 50000



Optical

Optic°: 12 - 46

Adjustability: Rotational 350°; Tilt 90°



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP20





Base Model Number: A7T00045-

Description

Nodo is an innovative track system that adds flexibility, eliminates constraints, and reduces costs.  The Nodo system is equipped with electrical receptacles, USB connections, and non-electrified accessories, and with track lights. All, can be repositioned wherever and whenever you want. The flexibility of the Nodo system translates into economic advantages due to the limitation of masonry work and the reduction of design limits offered by the freedom to add and/or remove the equipment as the changes in the environment require.

The backlit 3-circuit track is customizable in length and can be run to any area of the room with the use of 90° joints and Smart-ON quick connectors, freeing your lighting design from any electrical constraints. Nodo is available in a selection of color finish options; additionally, tracks and modules are also available in other custom options.

Manufactured in Italy, by Letroh.

This component relates to

Also Available within Series

Downloads

Nodo by Letroh – 3 3/8″ x 4 1/2″ Track, Spots offers LED lighting solutions | Zaneen Architectural

Nodo by Letroh – 3 3/8″ x 4 1/2″ Track, Spots offers LED lighting solutions | Zaneen Architectural

Ceiling
Included or excluded LED driver/transformer/ control gear
Tilt

90°
Rotation

350°
Lens

12 - 46
Dimmable
Color rendering index

>97 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

831 / 878
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
