Series: Nodo
Brand: Letroh
Letroh products
Division: Architectural
Architectural products
Mounting Type: Surface
Surface products
Mounting Location: Wall
Wall products
Subcategory: Profile
Profile products



Physical

Fixture Finish: SSR / WHI / BLK
see color chart below
Fixture Material: Aluminum



Electrical



LED



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Nodo Base Model Number: L7NODO-MOD-SYS

Specify

Series Description

Nodo is an innovative track system that adds flexibility, eliminates constraints, multiplies possibilities and cuts costs. Nodo system is equipped with track lights, electrical receptacles, USB connections, and non-electrified accessories, which can all be repositioned wherever and whenever you want. The backlit 3-circuit track is customizable in length and can be run to any area of the room with the use of 90° joints and Smart-ON quick connectors, freeing your lighting design from any electrical constraints. The three standard color finish options are satin silver, black, and white. As a custom option, track and modules can be treated with different finishing techniques: special anodizing, varnishing, veneer, sublimation and application of 3M™ DI-NOC™ Architectural Finishes. The flexibility of the Nodo system translates into economic advantages due to the limitation of masonry work and the reduction of design limits offered by the freedom to move, add and remove elements as needed.

Manufactured in Italy, by Letroh.

Product Components to be ordered separately

Image SKU Description Datasheet
Nodo by Letroh – 2 1/4″ x 1 7/8″ , offers LED lighting solutions | Zaneen Architectural L7900001 NODO SYSTEM-Direct - Surface Support for Wall or Ceiling Every 81cm Allows For Load of 10Kg/m
Nodo by Letroh – 1 15/16″ x 78 3/4″ , offers LED lighting solutions | Zaneen Architectural L7900002 NODO SYSTEM-Ceiling Support Kit with 200cm Suspension Cable Every 81cm Allows For Load of 10Kg/m
Nodo by Letroh – x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900003- End Cap - Right Side
Nodo by Letroh – x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900004- End Cap - Left Side
Nodo by Letroh – 7 9/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900005- NODO SYSTEM-Right End Power Feed - to be used with min 5 x 1.5mm2 Cable - Mount 3 16A fuses ( Not Included)
Nodo by Letroh – 7 9/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900006- NODO SYSTEM-Left End Power Feed - to be used with min 5 x 1.5mm2 Cable - Mount 3 16A fuses ( Not Included)
Nodo by Letroh – 7 9/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900007- NODO SYSTEM - Central Power Feed To be used with min 5 x 1.5mm 2 Cable - Mount 3 16A fuses (not included)
Nodo by Letroh – Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900008 Cable Clamp Kit
Nodo by Letroh – 7 7/8″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900009- Nodo System - Linear Coupler - Black or White
Nodo by Letroh – 7 7/8″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900010- Nodo System - Linear Insulating Coupling

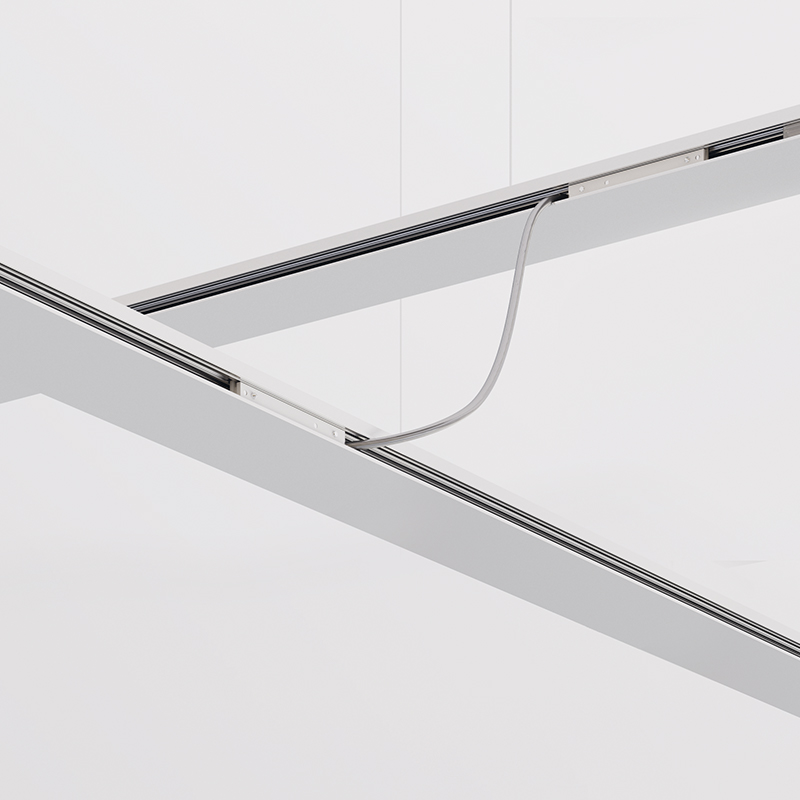

Nodo by Letroh – 11 13/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900011 Nodo System-Flexible Conductor Coupling - 300mm Cable
Nodo by Letroh – 39 3/8″ x 3 11/16″ , offers LED lighting solutions | Zaneen Architectural L7900012 Nodo System-Flexible Conductor Coupling - 1000mm Cable
Nodo by Letroh – 7 1/2 + 7 1/2″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900013- NODO SYSTEM - 90° Joint - Internal -
Nodo by Letroh – 3 11/16 + 3 11/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900014- NODO SYSTEM-90° Joint - External
Nodo by Letroh – 5 7/8 + 5 7/8″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900015- NODO SYSTEM-Angular Joint - Internal
Nodo by Letroh – 2 + 2″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900016- NODO SYSTEM-Angular Joint - External -
Nodo by Letroh – 4″ x 3 3/8″ , offers LED lighting solutions | Zaneen Architectural L7900022- NODO BOX-Large Box - 2 x 3 Prong Receptacle (Single Side) - Maximum load per socket (127V) 2000W.
Nodo by Letroh – 4 3/4 + 6 5/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900027- NODO-T-Joint - Left -
Nodo by Letroh – 4 3/4 + 6 5/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900028- NODO-T-Joint - Right -
Nodo by Letroh – 6 5/16 + 6 5/16″ x 2 7/16″ , offers LED lighting solutions | Zaneen Architectural L7900029- NODO-Adjustable Joint -
Nodo by Letroh – 78 3/4″ , offers LED lighting solutions | Zaneen Architectural L7900030- Nodo Desk - Plug Wiring - Right - Wiring covered in Anthracite Gray Fabric.
Nodo by Letroh – 78 3/4″ , Profile offers LED lighting solutions | Zaneen Architectural L7900031- Nodo Desk - Plug Wiring - Left - Wiring covered in Anthracite Gray Fabric.
Nodo by Letroh – 39 3/8″ x 31 11/16″ , offers LED lighting solutions | Zaneen Architectural L7900040- Microled - LED Insert 1000mm - 11W LED -
Nodo by Letroh – 78 3/4″ x 31 11/16″ , offers LED lighting solutions | Zaneen Architectural L7900041- Microled - LED Insert 2000mm
Nodo by Letroh – 118 1/8″ x 5/16″ , offers LED lighting solutions | Zaneen Architectural L7900042- MICROLED-LED Insert - 3000mm, 33W, 24V,
Nodo by Letroh – 4″ x 3 3/8″ , offers LED lighting solutions | Zaneen Architectural L7900046- NODO BOX-Slim Box - 1 x 3 Prong Receptacle (Double Sided) - Maximum load per socket (127V) 20amp (2000W)
Nodo by Letroh – 4″ x 3 3/8″ , offers LED lighting solutions | Zaneen Architectural L7900047- NODO BOX-Slim Box - 1 x USB Port (Single Side) + 1 x 3 Prong Receptacle (Single Side) - Maximum load per socket (127V) 20amp (2000W)
Nodo by Letroh – 4″ x 3 3/8″ , offers LED lighting solutions | Zaneen Architectural L7900049- NODO BOX-Large Box - 2 x USB Port (Single Side) + 2 x 3 Prong Receptacle (Single Side) - Maximum load per socket (127V) 20amp (2000W)
Nodo by Letroh – 4″ x 3 3/8″ , offers LED lighting solutions | Zaneen Architectural L7900050- NODO BOX-Large Box - 2 x GFCI Receptacles - Maximum load per socket (127V) 20amp (2000W)
Neutra by Letroh – 3 3/8″ x 4 1/16″ Track, Spots offers LED lighting solutions | Zaneen Architectural L7T00005- Nodo - Neutra - Track Spotlight - 10W LED - 3000K / 4000K
Nodo by Letroh – 9/16″3 15/16″ , offers LED lighting solutions | Zaneen Architectural L7T00007- NODO LIGHTS-Nuo - Right - Spotlight - 4.5W LED - 3000K - 400lm - 350mA - CRI90
Nodo by Letroh – 9/16″3 15/16″ , offers LED lighting solutions | Zaneen Architectural L7T00008- NODO LIGHTS - Nuo - Left - Spotlight - 4.5W LED - 3000K - 350mA - CRI90 -
Nodo by Letroh – 39 3/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00011- 1-Phase Track - 1000mm
Nodo by Letroh – 78 3/4″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00012- 1-Phase Track - 2000mm
Nodo by Letroh – 118 1/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00013- 1-Phase Track - 3000mm
Nodo by Letroh – 39 3/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00014- 2-Phase Track - 1000mm
Nodo by Letroh – 78 3/4″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00015- 2-Phase Track - 2000mm
Nodo by Letroh – 118 1/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00016- 2-Phase Track - 3000mm
Nodo by Letroh – 39 3/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00017- 3-Phase Track - 1000mm
Nodo by Letroh – 78 3/4″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00018- 3-Phase Track - 2000mm
Nodo by Letroh – 118 1/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00019- 3-Phase Track - 3000mm
Nodo by Letroh – 39 3/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00020- Wired Track - 1000mm
Nodo by Letroh – 78 3/4″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00021- Wired Track - 2000mm
Nodo by Letroh – 118 1/8″ x 2 7/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7T00022- Wired Track - 3000mm
Bob by Letroh – 2 3/8″4″ x 4 5/16″ Track, Profile offers LED lighting solutions | Zaneen Architectural L7T00025- Nodo - Bob - Track Spotlight - 20W LED - 3000K / 4000K - Optics 25° / 40° / 60° / OV / RL / WW

Product Accessories

Image SKU Description Datasheet
Nodo by Letroh – 11 13/16″ x 7″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900017- Nodo - Shelf Accessory - Shelf for objects arranged for the placement of a tablet into two different inclinations. Use is only possible with the track mounted on the wall. Maximum capacity 1.5kg.
Nodo by Letroh – 11 13/16″ x 7″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900018- Nodo - Paper Towel Roll Holder Accessory - Shelf with opening for housing paper towels or dish cloth. Use is only possible with the track mounted on the wall.
Nodo by Letroh – 1/2″ x 2 5/8″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900019- Hook Accessory (5 pieces)
Nodo by Letroh – 1/2″ x 3/4″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900020 Nodo - Locking Device Accessory
Nodo by Letroh – 3 3/4″3 7/8″ x 12 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900032- Nodo Desk - Support with Clamp 5'-5" maximum space between posts, 5kg as maximum load
Nodo by Letroh – 3 3/4″ x 12 5/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900033- Nodo Desk - Support with Base 5'-5" maximum space between posts, 5kg as maximum load
Nodo by Letroh – 78 3/4″ x 11/16″ Surface, Profile offers LED lighting solutions | Zaneen Architectural L7900051 Nodo - Locking Screw Accessory

Also Available within Series

Downloads

Request Files

Nodo by Letroh – Surface, Profile offers LED lighting solutions | Zaneen Architectural

Nodo by Letroh – Surface, Profile offers LED lighting solutions | Zaneen Architectural / Line art

Wall
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

SSR - Satin Silver WHI - White BLK - Black
