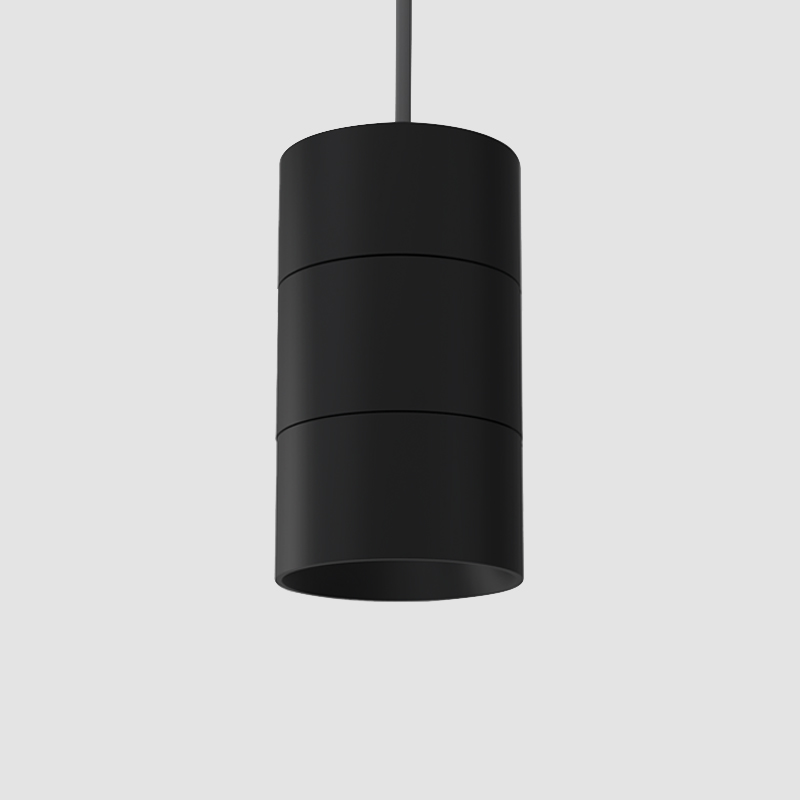

Viavai System - Mini Suspension Spot Dark Light Fixed, 9W LED, 2700K/3000K, Max 740lm, 48V, CRI97 - Non-Dimming / 0-10V Dimming - Complete with 20° Lens and Honeycomb – Zaneen

General

Reset
Series: Viavai
Partner: Letroh
Letroh products
Division: Architectural
Architectural products
Installation: Track
Track products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Cylinder

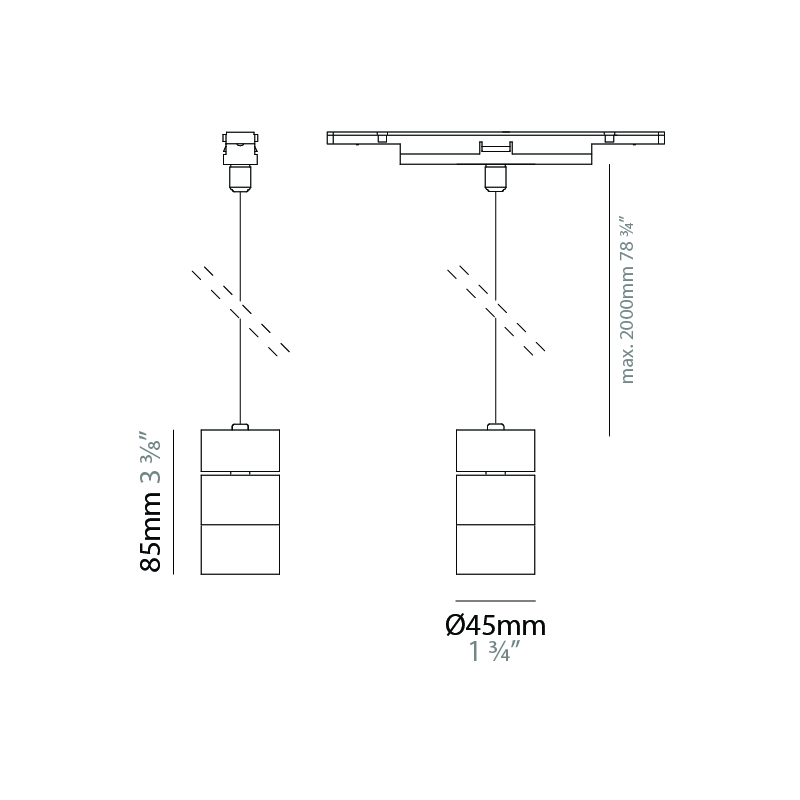

Diameter (mm): 45
Diameter (in): 1 3⁄4
Height (mm): 85
Height (in): 3 3⁄8
Max. Overall Height (mm): 2085
Max. Overall Height (in): 82 1⁄16
Weight (kg): 0.14
Fixture Finish: WHI / BLK
see color chart below
Fixture Material: Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 9
Dimming: Non-Dimming / DALI Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 48



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 698 / 740
CRI: >97 CRI
Lamp Life (hrs): 50000



Optical

Adjustability: Fixed



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: A7T00062-

Specify

Description

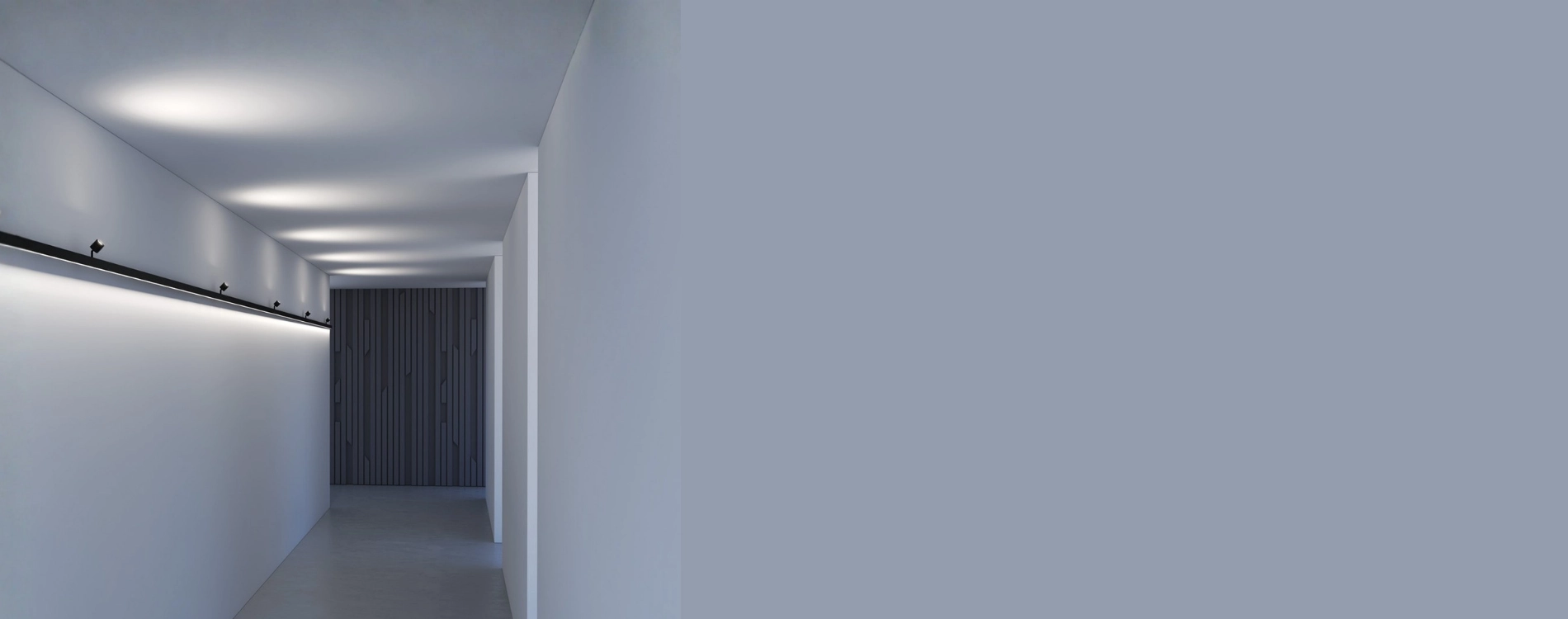

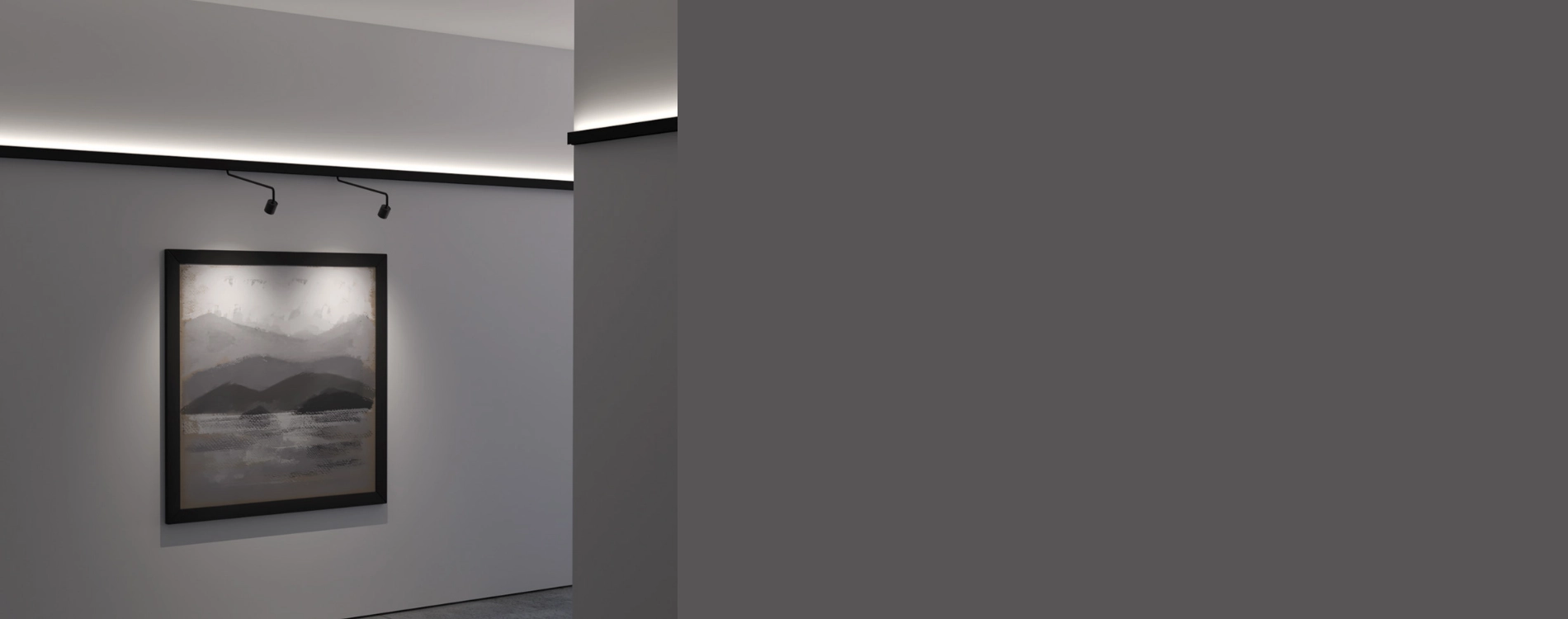

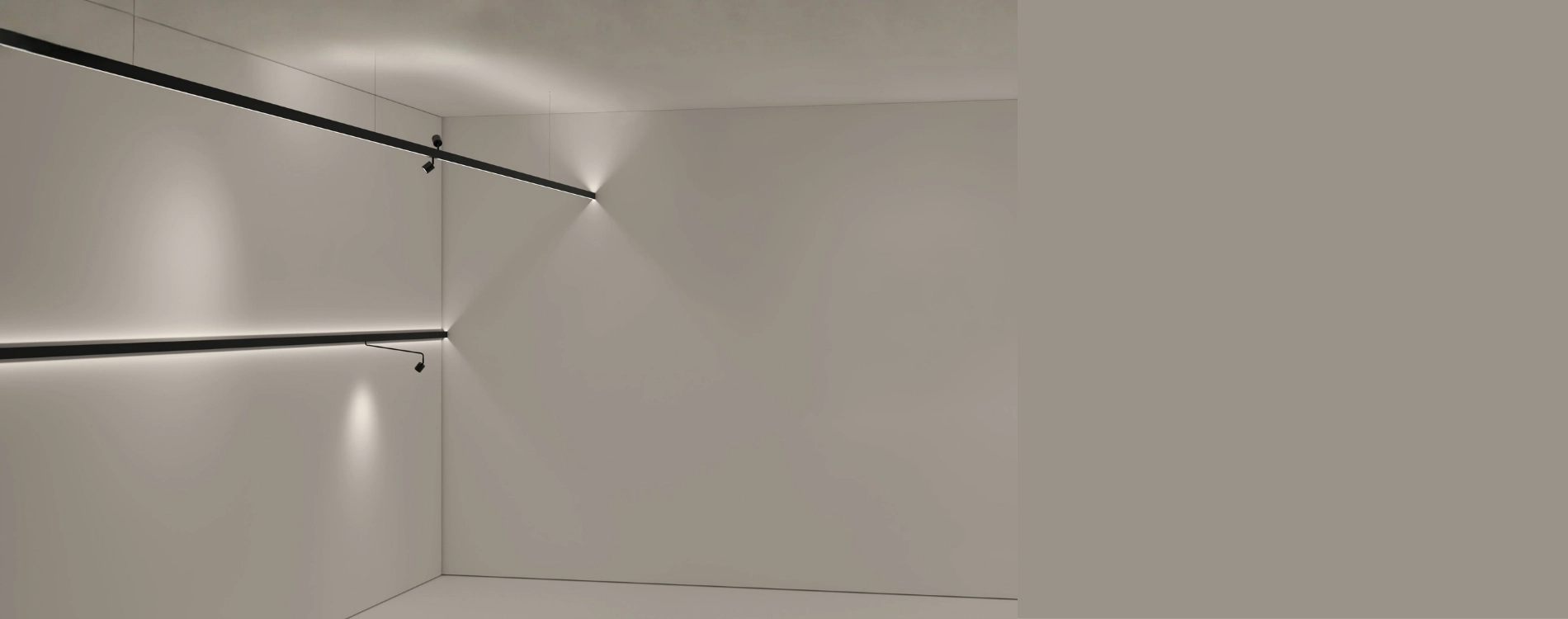

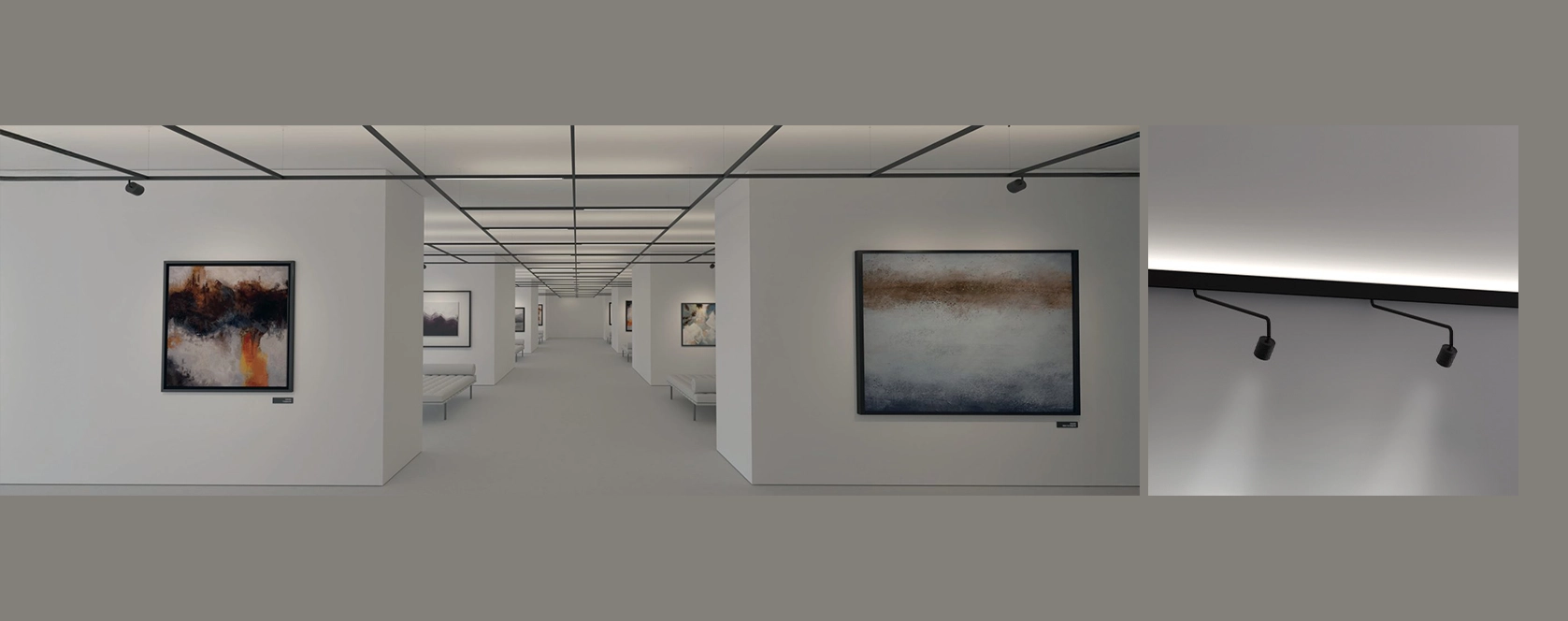

Viavai is a unique collection of track linear systems, characterized by its innovative solutions and extremely reduced profile. By combining low-voltage track functionality with the practicality of linear lighting profiles, Viavia offers multiple solutions within a single product. Developed for both direct and indirect lighting, it offers multiple installation options – wall or surface and ceiling or suspended. Installation is straightforward with an intuitive snap system that allows easy attachment of light sources. The track’s unique design enables LED sources and boards to be powered at any point along the track, and it can be easily cut to size by a qualified technician. Inserts for the Viavai system include Bob, Compacto, and Zoom - offering virtually endless options to create a bespoke luminaire ideally suited for your project.
Viavai achieves a continuous, uninterrupted light effect across the entire system. Every curve, joint, and component is designed to maintain both electrical connectivity and even illumination without dark spots.

Manufactured in Italy, by Letroh.

This component relates to

Viavai by Letroh – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A7VIAV-DUO-SUS-SYS Viavai Duo Suspension System

Also Available within Series

Viavai by Letroh – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A7VIAV-DUO-SUR-SYS Viavai Duo Surface Wall System
Viavai by Letroh – Track, Track System Low Voltage offers LED lighting solutions | Zaneen Architectural A7VIAV-DUO-SUS-SYS Viavai Duo Suspension System

Downloads

Request Files

Viavai by Letroh – 1 3/4″ x 3 3/8″ Track, Pendant offers LED lighting solutions | Zaneen Architectural

Viavai by Letroh – 1 3/4″ x 3 3/8″ Track, Pendant offers LED lighting solutions | Zaneen Architectural

Ceiling
Direct
Dimmable
Color rendering index

>97 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

698 / 740
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
