NoName - Suspension - Direct 3 Light, 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm – Zaneen

General

Reset
Series: NoName
Partner: Icone
Icone products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Abstract

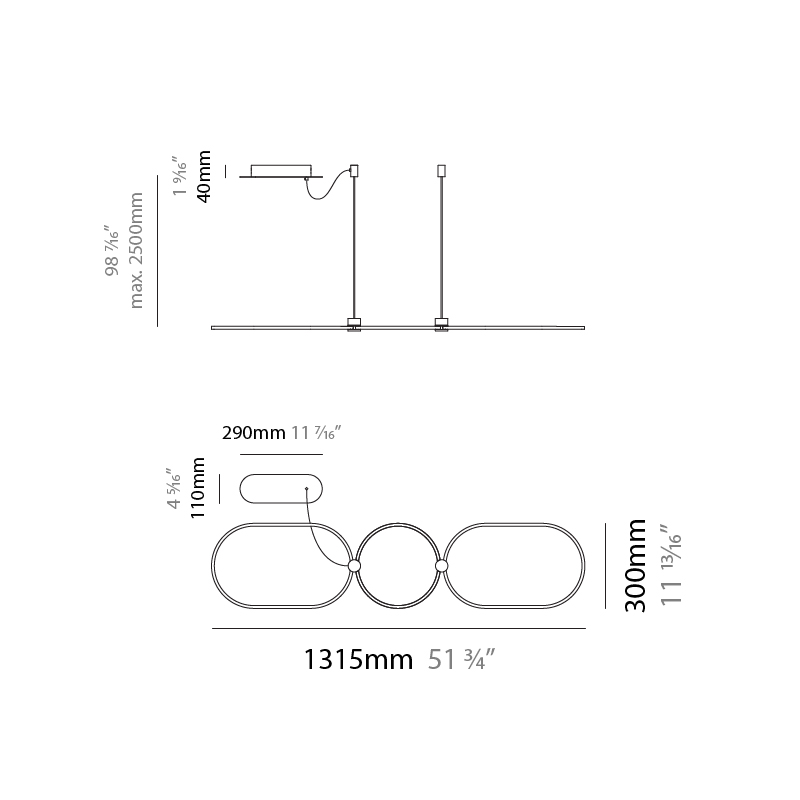

Length (mm): 1315
Length (in): 51 3⁄4
Width (mm): 300
Width (in): 11 13⁄16
Height (mm): 30
Height (in): 1 3⁄16
Max. Overall Height (mm): 2500
Max. Overall Height (in): 98 7⁄16
Fixture Finish: BLK / WHB / WHW / BKB / BRA / SBS
see color chart below
Fixture Material: Aluminum
Cable Details: 1500mm / 59 1/16"



Electrical

Lamp Type: LED
Input Wattage (W): 41.6
Dimming: Phase Dimming / 0-10V Dimming
Driver Included: Yes
Driver Location: Integrated
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 5700 / 5880
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Base Model Number: D41096-

Specify

Description

NoName is a geometric modular lighting collection designed for adaptability and creative expression. Its combination of circular and elliptical forms evokes a sense of movement, intertwining fluid shapes to create a dynamic lighting element that enriches any space. Whether wall-mounted, ceiling-mounted, or suspended, NoName offers a wide range of configuration possibilities and a wide range of color finish options, empowering designers to tailor a fixture to the unique demands of their project. Available with direct, indirect, or dual lighting options, NoName delivers versatile and visually striking illumination.

Manufactured in Italy, by Icone.

Also Available within Series

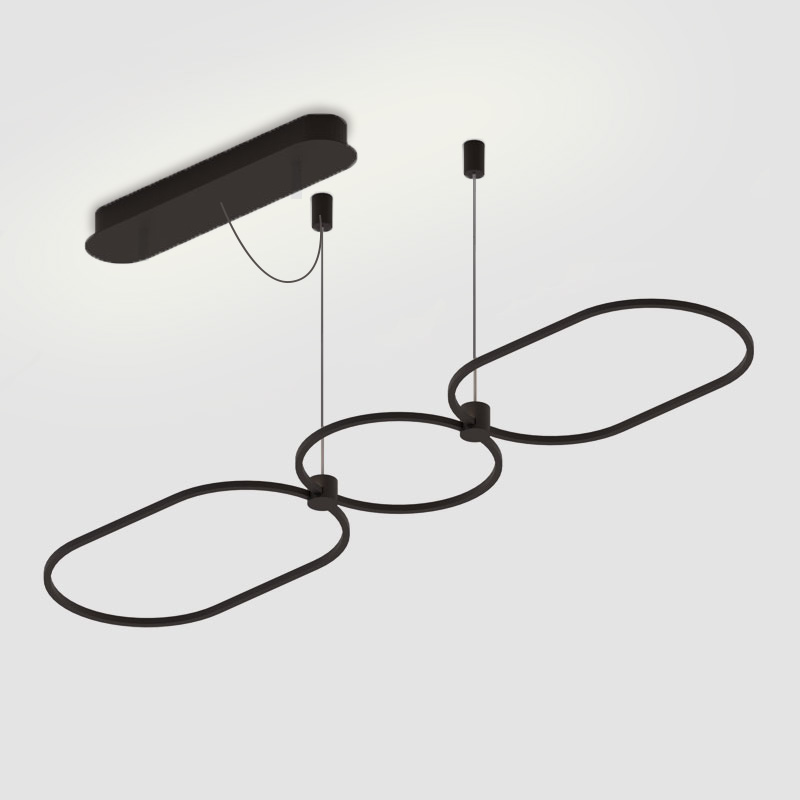

NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41096- NoName - Suspension - Direct 3 Light, 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm
NoName by Icone – 51 3/4″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41097- NoName - Suspension - Indirect 3 Light , 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm

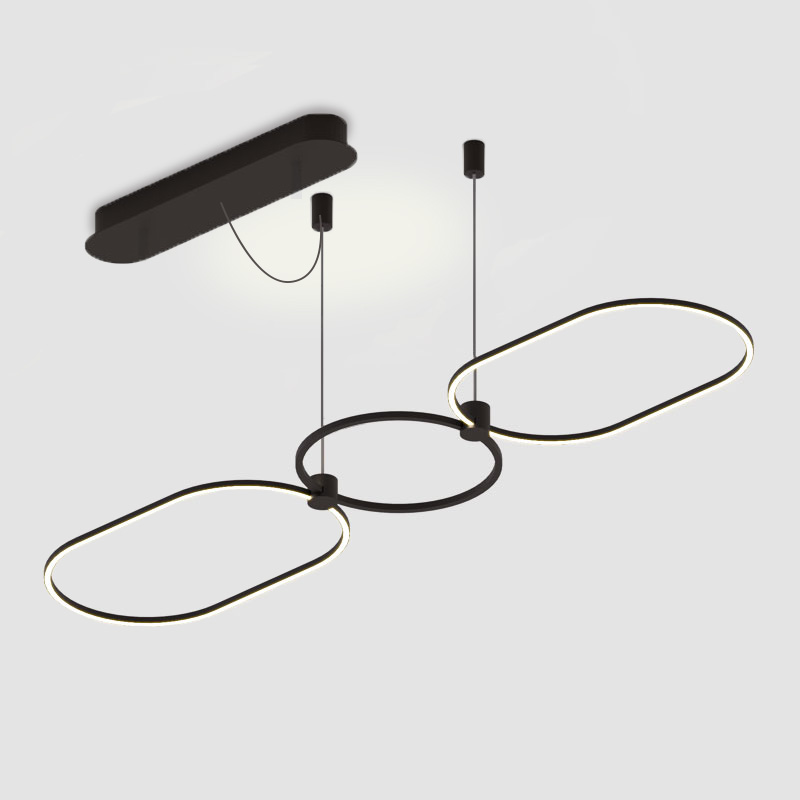

NoName by Icone – 51 3/4″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41098- NoName - Suspension - Direct/Indirect 3 Light , 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm
NoName by Icone – 35 13/16″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41099- NoName - Suspension - Direct 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm

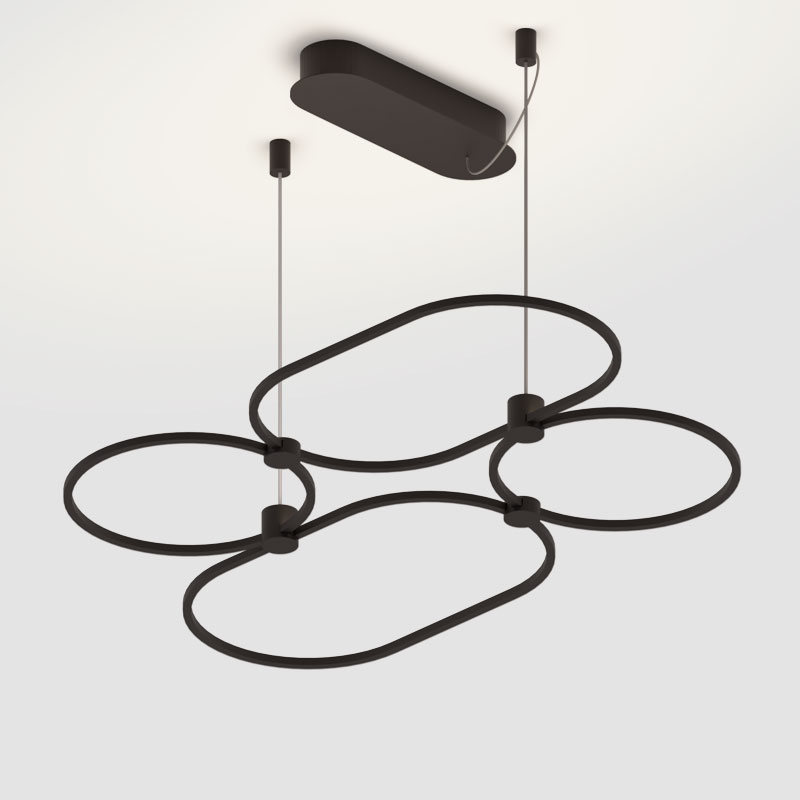

NoName by Icone – 35 13/16″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41100- NoName - Suspension - Indirect 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm

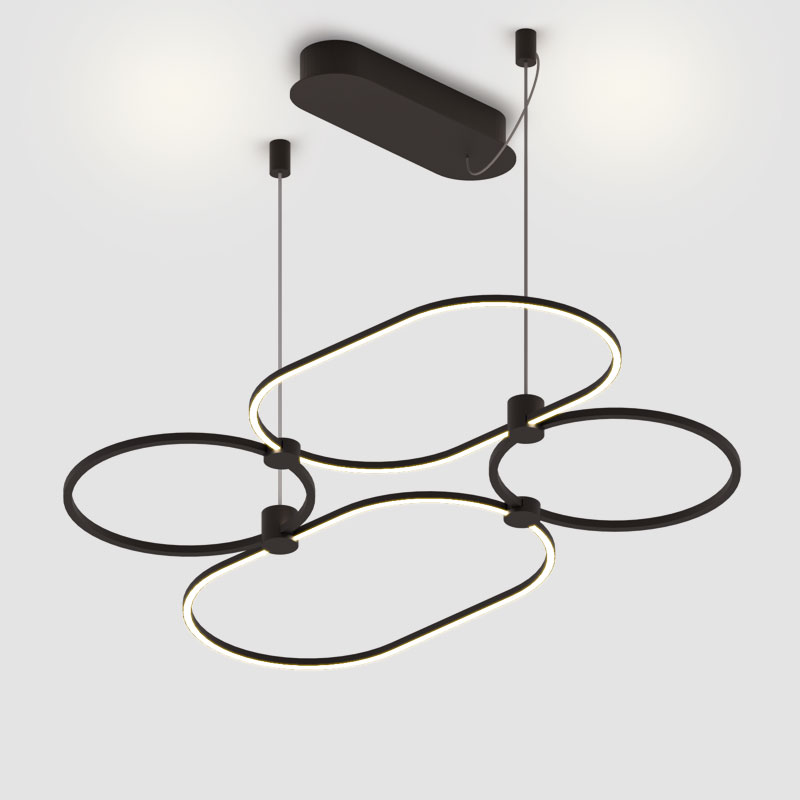

NoName by Icone – 35 13/16″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41101- NoName - Suspension - Direct/Indirect 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm

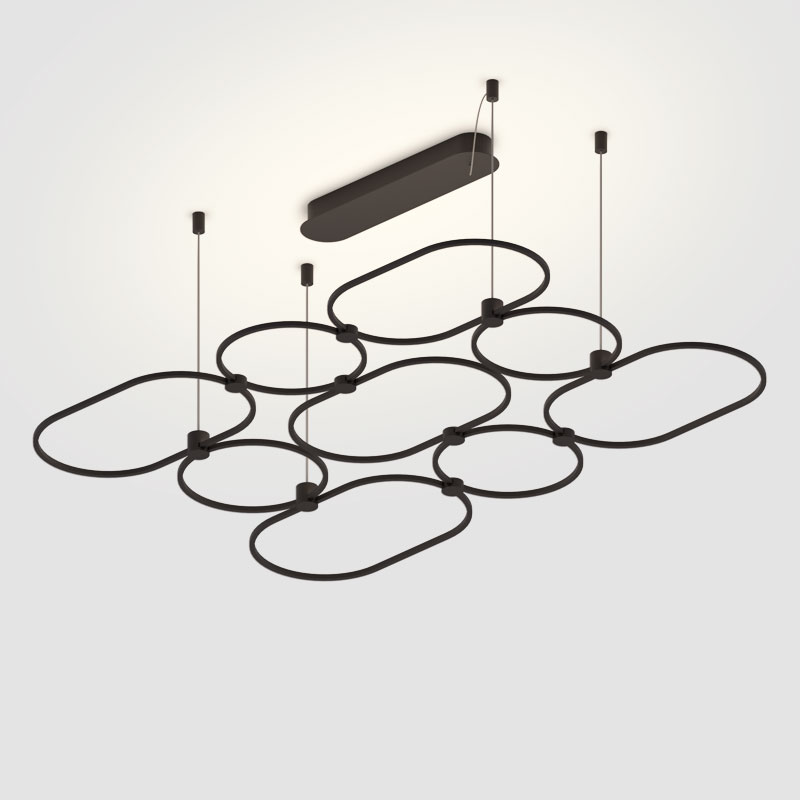

NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41102- NoName - Suspension - Direct 9 Light, 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm
NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41103- NoName - Suspension - Indirect 9 Light, 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm

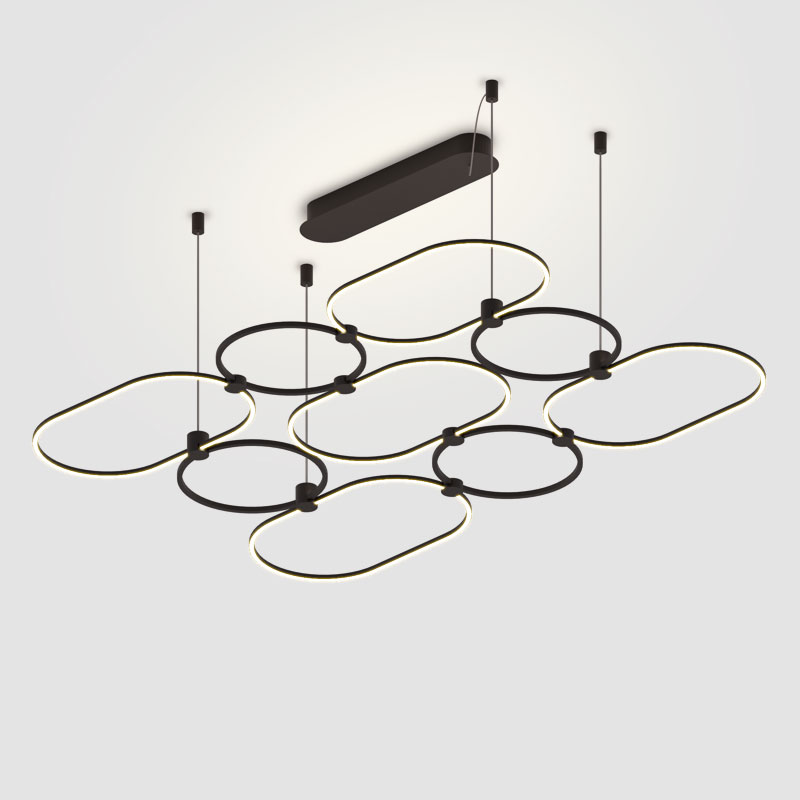

NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design D41104- NoName - Suspension - Direct/Indirect 9 Light, 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm

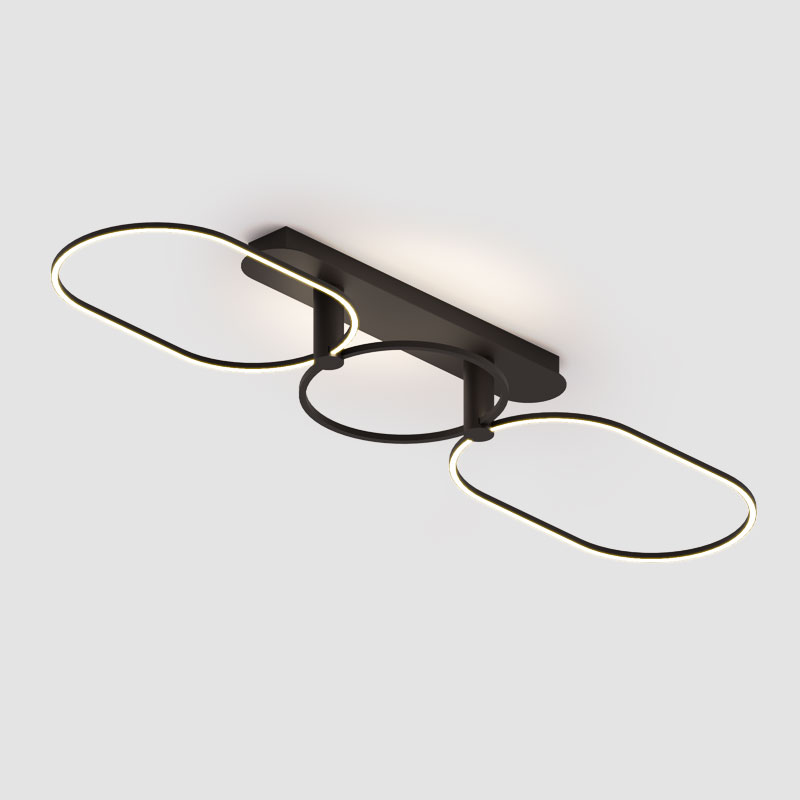

NoName by Icone – 51 3/4″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42093- NoName - Surface Ceiling - Direct/Indirect 3 Light, 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5800lm

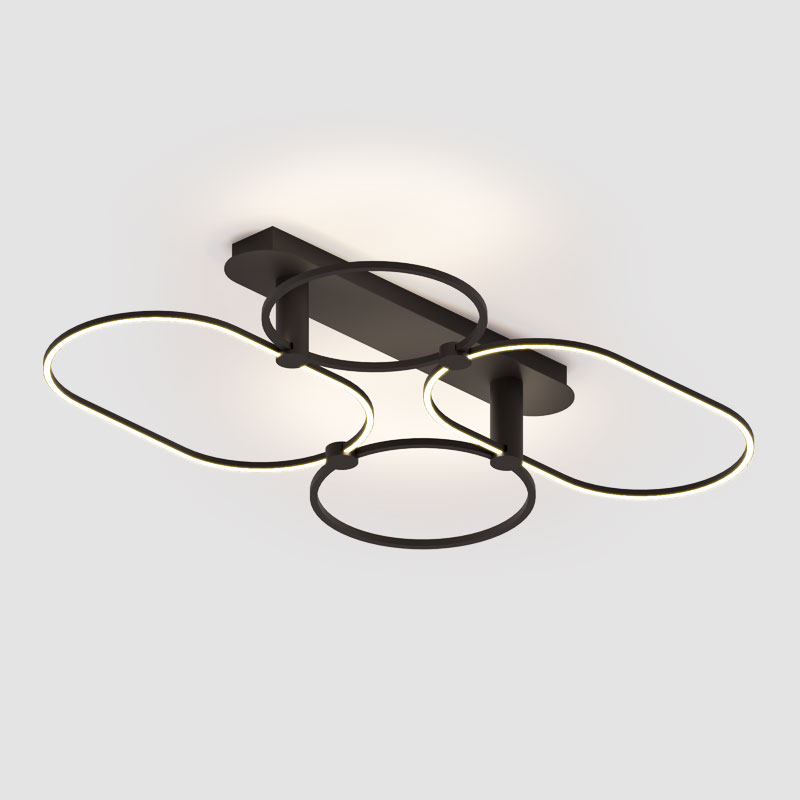

NoName by Icone – 35 13/16″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42094- NoName - Surface Ceiling - Direct/Indirect 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm

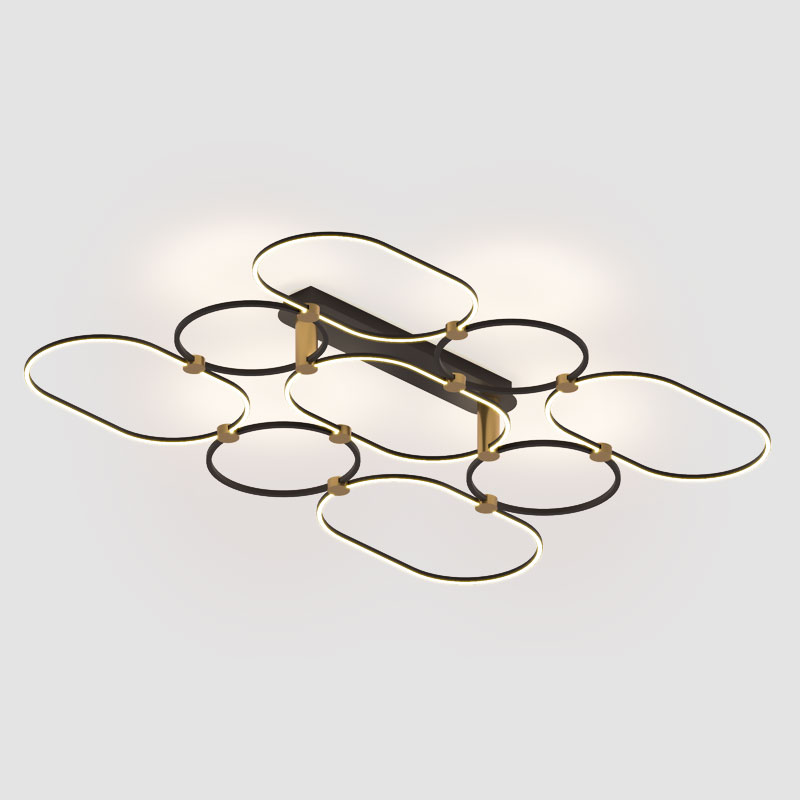

NoName by Icone – 51 3/4″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42095- NoName - Surface Ceiling - Direct/Indirect 9 Light, 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm
NoName by Icone – 51 3/4″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42096- NoName - Surface Ceiling - Direct - 3 Light , LED 41.6W, 2700K/3000K, Max. 5800lm
NoName by Icone – 35 13/16″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42097- NoName - Surface Ceiling - Direct - 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm
NoName by Icone – 35 13/16″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42097- : D42097-DV-30K-BLK NoName - Surface Ceiling - Direct - 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm
NoName by Icone – 51 3/4″ x 1 3/16″ Surface, Ceiling Surface offers quality European interior lighting design | Zaneen Design D42098- NoName - Surface Ceiling - Direct - 9 Light , 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm

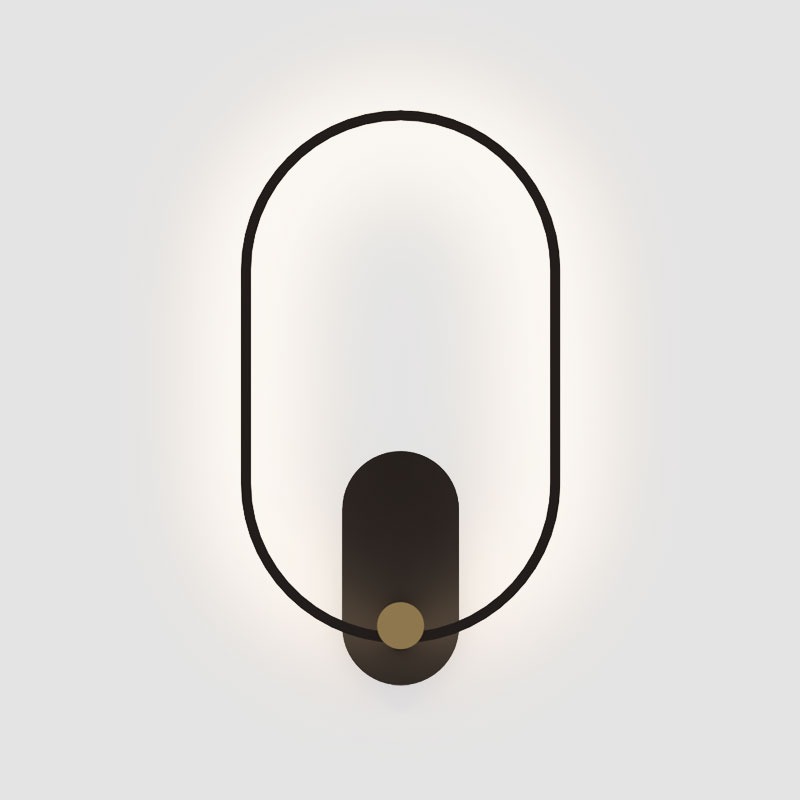

NoName by Icone – 11 13/16″ x 21 1/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43086- NoName - Surface Wall - Indirect 1 Light, 540mm/21 1/4" x 300mm/11 13/16", LED 15.6W, 2700K/3000K, Max. 2200lm

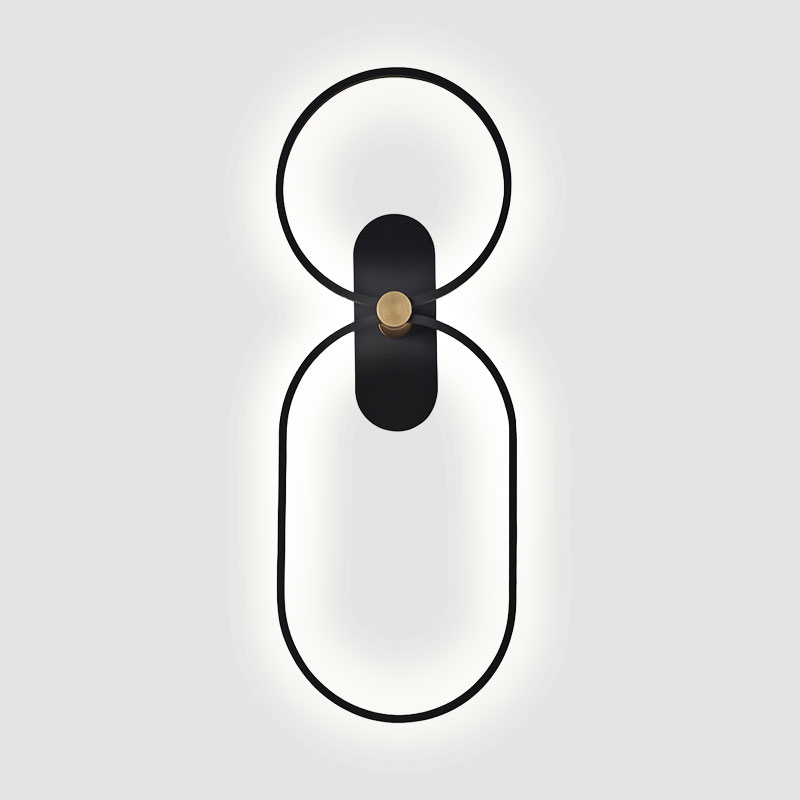

NoName by Icone – 11 13/16″ x 31 7/8″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43087- NoName - Surface Wall - Indirect 2 Light, 810mm/31 7/8" x 300mm/11 13/16", LED 26W, 2700K/3000K, Max. 3730lm

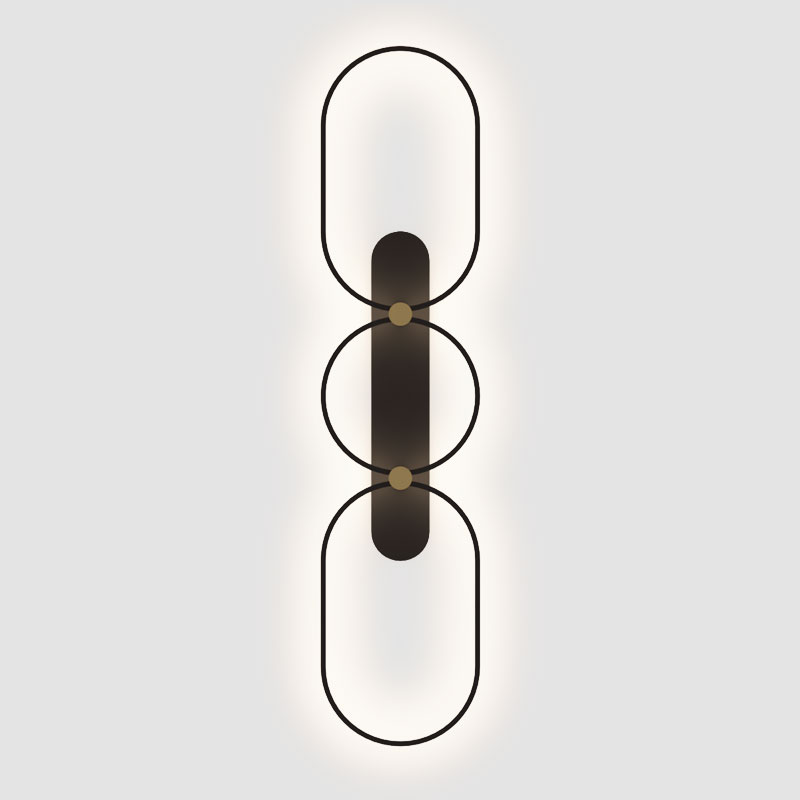

NoName by Icone – 11 13/16″ x 51 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43088- NoName - Surface Wall - Indirect 3 Light, 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm

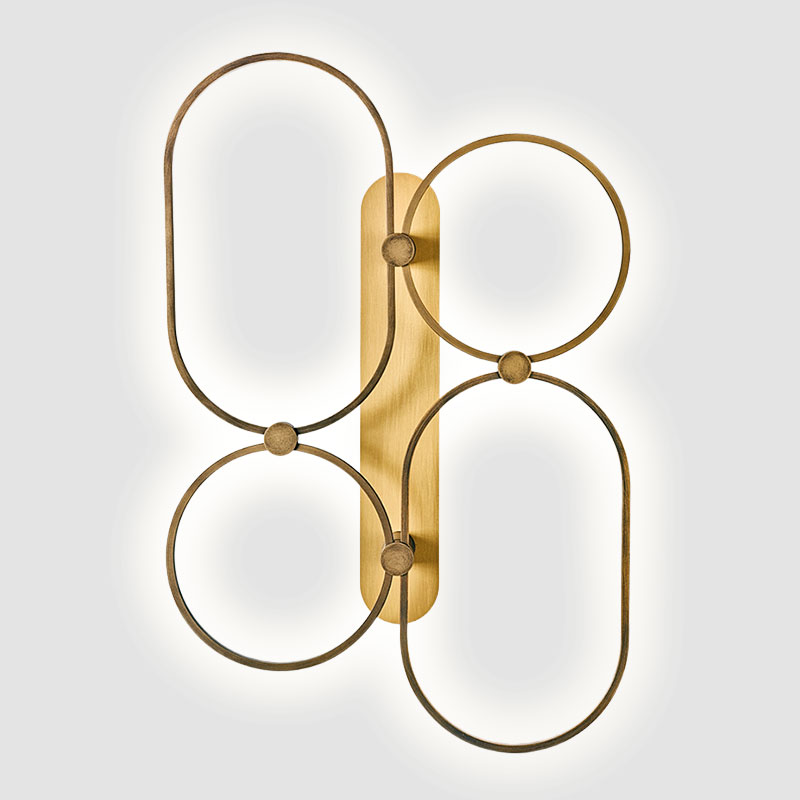

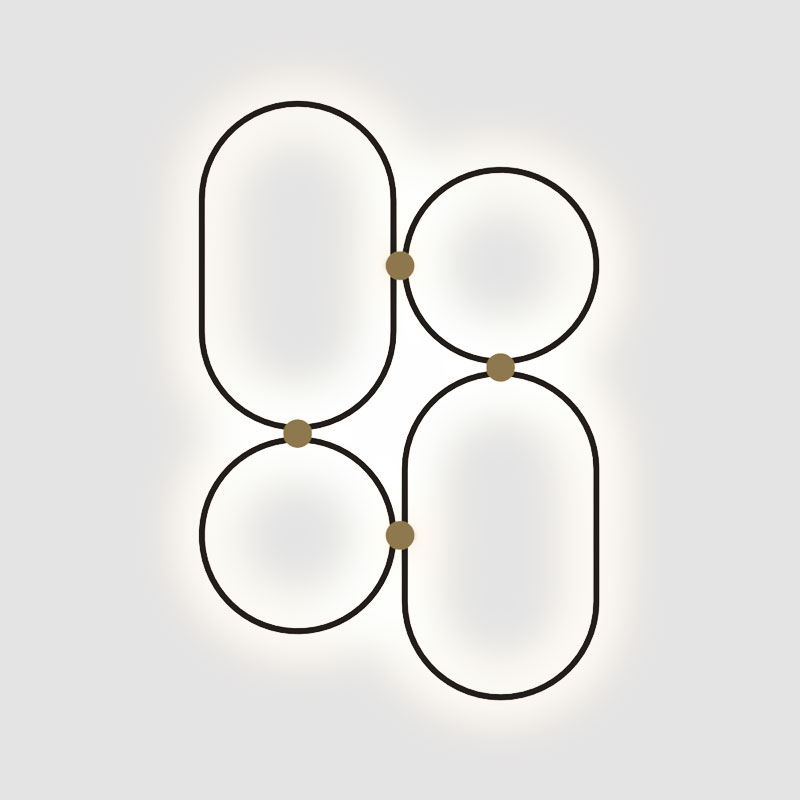

NoName by Icone – 23 13/16″ x 35 13/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43089- NoName - Surface Wall - Indirect 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm

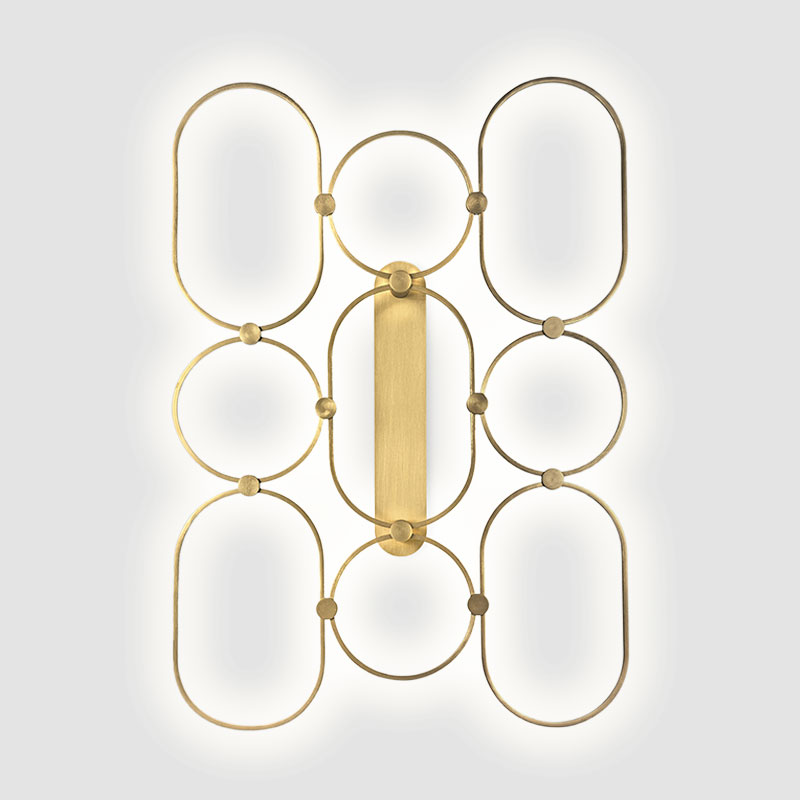

NoName by Icone – 36 1/4″ x 51 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43090- NoName - Surface Wall - Indirect 9 Light, 1315mm/51 3/4" x 920mm/36 1/4", LED 116W, 2700K/3000K, Max. 16500lm
NoName by Icone – 11 13/16″ x 19 7/8″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43091- NoName - Surface Wall - Indirect 1 Light, 505mm/19 7/8" x 300mm/11 13/16", LED 15.6W, 2700K/3000K, Max. 2200lm
NoName by Icone – 11 13/16″ x 31 7/8″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43092- NoName - Surface Wall - Indirect 2 Light, 810mm/31 7/8" x 300mm/11 13/16", LED 26W, 2700K/3000K, Max. 3730lm
NoName by Icone – 11 13/16″ x 51 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43093- NoName - Surface Wall - Indirect 3 Light, 1315mm/51 3/4" x 300mm/11 13/16", LED 41.6W, 2700K/3000K, Max. 5880lm
NoName by Icone – 23 13/16″ x 35 13/16″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43094- NoName - Surface Wall - Indirect 4 Light, 910mm/35 13/16" x 605mm/23 13/16", LED 51W, 2700K/3000K, Max. 7270lm
NoName by Icone – 36 1/4″ x 51 3/4″ Surface, Wall Surface offers quality European interior lighting design | Zaneen Design D43095- NoName - Surface Wall - Indirect 9 Light, 505mm/19 7/8" x 300mm/11 13/16", LED 116W, 2700K/3000K, Max. 16500lm

Downloads

Request Files

NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

NoName by Icone – 51 3/4″ x 1 3/16″ Suspension, Pendant offers quality European interior lighting design | Zaneen Design

Ceiling
Direct
Included or excluded LED driver/transformer/ control gear
Length of suspension cable
Dimmable
Color rendering index

>80 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

5700 / 5880
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

BLK - Black WHB - White/Brass WHW - White/White BKB - Black/Brass BRA - Brass SBS - Satin bronze / Brass
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
