Emme

INDUSTRIAL STYLE

Get Inspired

General

Reset

Series: Emme

Partner: Side

Division: Exterior

Installation: Surface

Product Type: Wall Surface

Mounting Location: Wall

Light Distribution: Direct / Indirect

Physical

Shape: Cylinder

Diameter (mm): 175

Diameter (in): 6 ⁷⁄₈

Height (mm): 480

Height (in): 18 ⁷⁄₈

Extension (mm): 260

Extension (in): 10 ¹⁄₈

Weight (kg): 5.5

Weight (lbs): 12.1

Diffuser: Clear tempered glass

Fixture Finish: WHI / BLK / GRY

see color chart below

Fixture Material: Aluminum Die Cast

Electrical

Lamp Type: LED (Zhaga Standard)

Input Wattage (W): 79

Total Output Wattage (W): 64

Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 1050

Upon Request: (Not included - see components [IP65 or higher enclosure to be supplied by others]) Remote 0-10Vdc dimming

LED

Number of LEDs: 2

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 2 x 2990.5 / 2 x 4128.6

Nominal Lumen (lm): 2 x 3300 / 2 x 4560

CRI: >80 CRI

Lamp Life (hrs): 50000

Optical

Reflector°: Metacrylate LED lens

Optic°: 25 / 40

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK06

Base Model Number: E10W0042-

Specify

Base Model Number:
E10W0042-

Emme - Surface - ⌀175mm - 6 7/8″ - 79W LED - 3000 / 4000°K - Clear tempered glass

Final Option Selection

Color Temperature

Finish Options

Lens Options

Reset

Undo

Reset

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Reset

Undo

Model Number: E10W0042- - -

Get Spec Sheet

Description

Emme is a family of exterior downlights in suspension and surface mount, in the classic cylindrical shape. It is constructed of die-cast aluminum, with an ingress protection rating of IP65, and is powder-coated with an anti-corrosive treatment in a few different color finish options.

Manufactured in Italy, by Side.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	DTM0501050EPT	ERP - ESPT050W-1050-42-Z1 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 44.1W - 1050mA - 120 / 277Vac - LED power supply with Thermally Enhanced Case
	ENCP6	Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

	E10C0024-	Emme - Ceiling 175 - Surface - Ceiling - 175mm / 6 7/8" - 40W LED - 3000K / 4000K - 1050mA - Optic: 15° / 25° / 40°
	E10S0000-	Emme Ceiling 175 - Suspension - 175mm / 6 7/8" - 40W LED - 3000K / 4000K - 1050mA - Optic: 15° / 25° / 40° - with aircraft cables
	E10W0042-	Emme - Doublelight 175 - Wall - 2 x 39.5W - 3000K / 4000K - Optic: 25° / 40°
	E10W0054-	Emme - Doublelight 175 - 175mm / 6 7/8" - 2 x 19.5W LED - 3000K / 4000K - 500mA - Optic: 16° / 25° / 40°

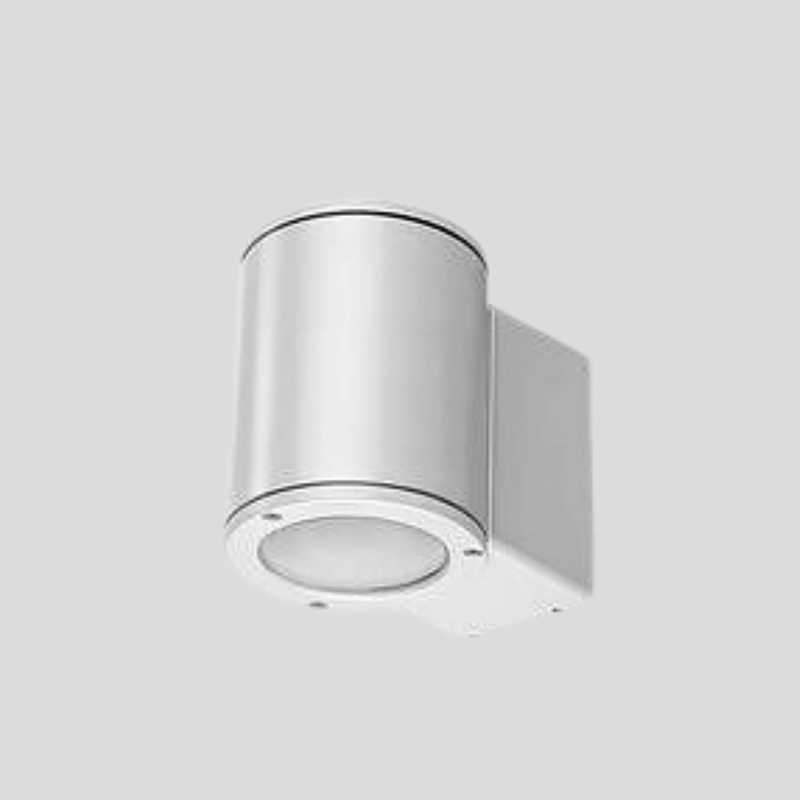

	E10W0094-	Emme - Monolight 105 - Wall - 105mm / 4 1/8" - 14.3W LED - 3000K / 4000K - 350mA - Optic: 15° / 24° / 40°
