Mini Mistral - Surface - Wall - 22W LED - 3000K / 4000K – Zaneen

General

Reset
Series: Mistral
Subseries: Mini Mistral
Partner: Side
Side products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Wall Surface
Wall Surface products
Mounting Location: Wall
Wall products
Light Distribution: Direct / Indirect
Direct / Indirect products



Physical

Shape: Abstract

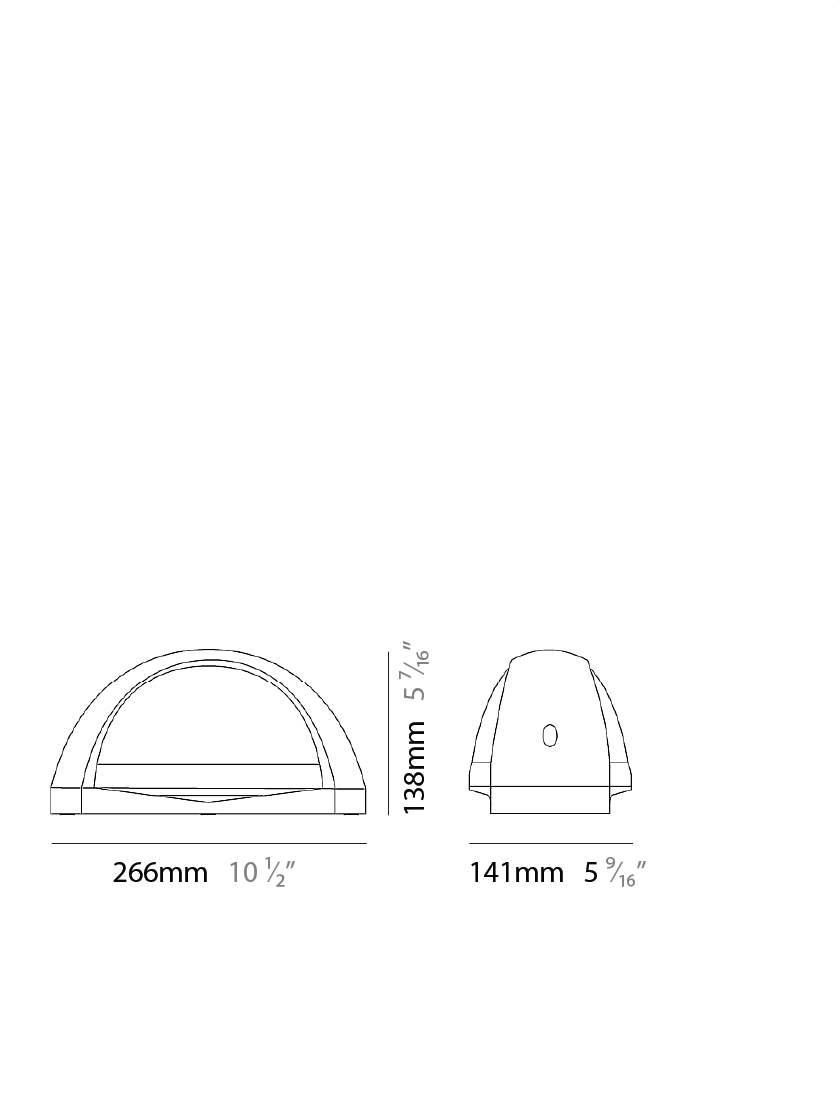

Width (mm): 266
Width (in): 10 1⁄2
Height (mm): 141
Height (in): 59/16
Extension (mm): 138
Extension (in): 5 7⁄16
Weight (kg): 1.8
Weight (lbs): 3.97
Diffuser: Frosted tempered glass
Gasket: Silicon rubber
Fixture Finish: WHI / BLK / GRY
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 22
Total Output Wattage (W): 16
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Current - Universal
Driver Class: Class 1
Input Voltage (V): 120 - 277
Constant Current (MA): 350
Upon Request: (Not included - see components [IP65 or higher enclosure to be supplied by others]) Remote: 0-10Vdc dimming / Phase dimming @120Vac only



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 1215.8 / 1321.5
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: Symmetric



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65





Base Model Number: E10W0143-

Specify

Description

Mistral is a representation of its name, a strong exterior product that withstands all environmental challenges. It is a double emission product and equipped for multiple installation types. Mistral is available in surface wall applications, with a mini version also available. Choose from a variety of different color finish options to suit your project.

Manufactured in Italy, by Side.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0300500ES ERP - ESS030W-0500-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 30W - 500mA - 120 / 277Vac - LED power supply
ENCP11 Aluminum - IP68 - UL listed - Outdoor rated - Power Supply Enclosure in Natural Finish.
by – 6 1/8″ x 1 3/8″ , offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

Mistral by Side – x 5 9/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E10W0137- Mini Mistral - Surface - Wall - 10W LED - 3000K / 4000K
Mistral by Side – x 59/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E10W0143- Mini Mistral - Surface - Wall - 22W LED - 3000K / 4000K
Mistral by Side – x 7 5/8″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E10W0155- Mistral - Surface - Wall - 47W LED - 3000K / 4000K

Downloads

Request Files

Mistral by Side – x 59/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior

Mistral by Side – x 59/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior

Wall
Direct/ Indirect
Included or excluded LED driver/transformer/ control gear
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

1215.8 / 1321.5
Certified for North American Standards
Protected against ingress of dust; protected against jets of water


Fixture Finishes

WHI - White BLK - Black GRY - Gray
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
