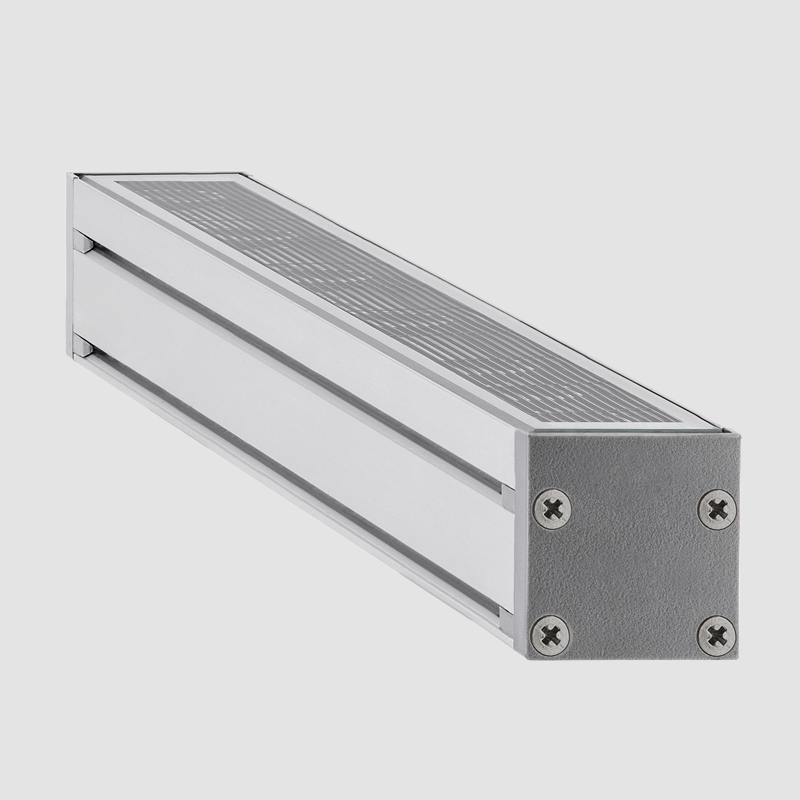

Lineari 30 - Drive Over - In-Ground / Surface - 282mm / 11 1/8" - 13.4W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 – Zaneen

General

Reset
Series: Lineari 30
Partner: Zaneen
Zaneen products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Wall Grazer
Wall Grazer products
Mounting Location: In-Ground
In-Ground products
Light Distribution: Uplight
Uplight products



Physical

Shape: Rectangle

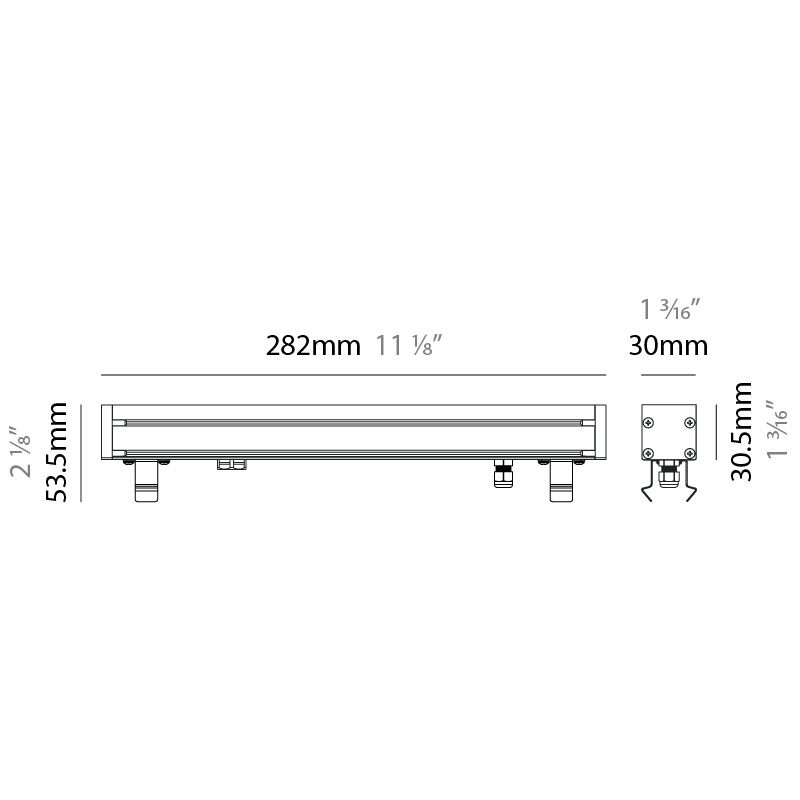

Length (mm): 282
Length (in): 11 1⁄8
Width (mm): 30
Width (in): 1 3⁄16
Height (mm): 53.5
Height (in): 2 1⁄8
Weight (kg): 0.46
Weight (lbs): 1.014
Diffuser: Extra clear tempered 6mm
Fixture Finish: ANA
see color chart below
Fixture Material: Extruded Aluminum
Cable Details: IP68 30cm Cable with Easy Lock system



Electrical

Lamp Type: LED
Input Wattage (W): 16
Total Output Wattage (W): 12.5
Dimming: 0-10V Dimming
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Housing: ENCP9
Input Voltage (V): 120 - 277
Output Voltage (V): 24
Upon Request: Phase Dimming (120Vac only)



LED

Color Temperature (°K): 2200 / 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 1140 (3000K)
CRI: >90 CRI
Lamp Life (hrs): 100000



Optical

Optic°: 12 / 21/ 31 / 46 / 13x36
Adjustability: Tilt ±20°



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP67
IK Rating: IK06





Base Model Number: E12I0049-

Specify

Description

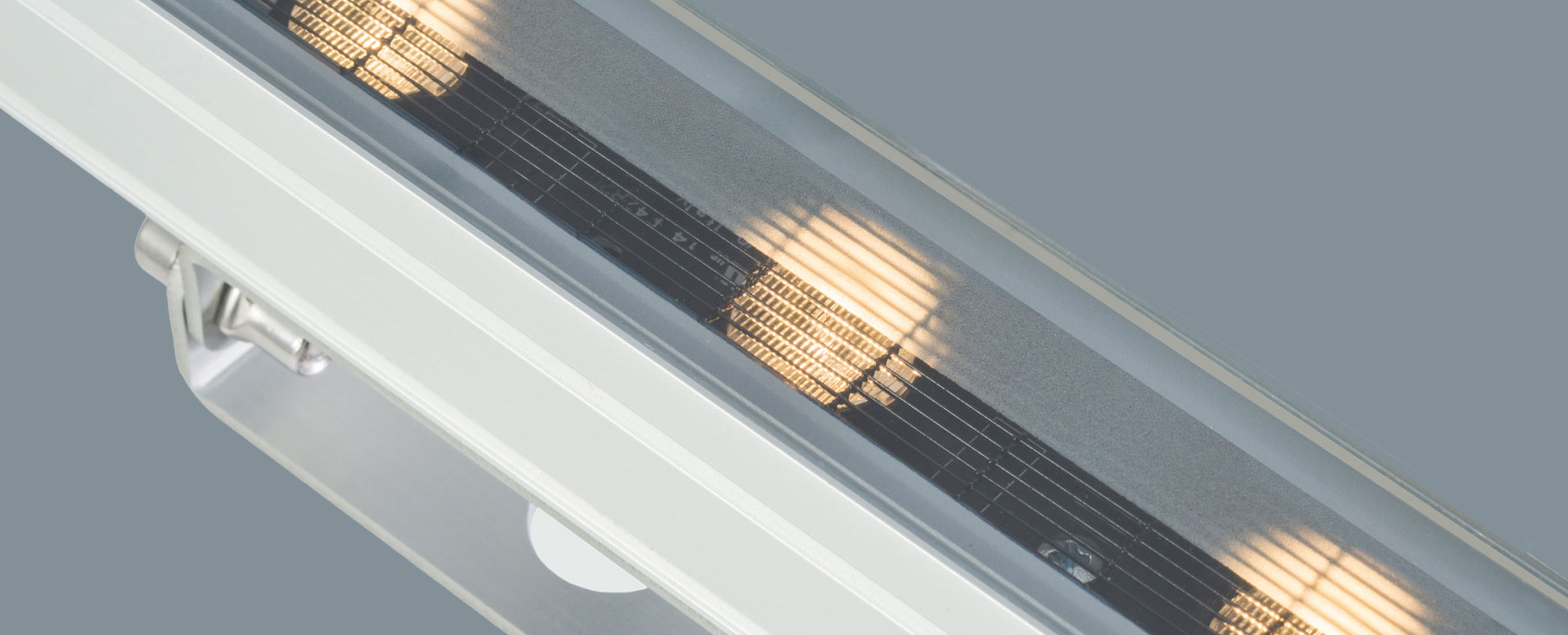

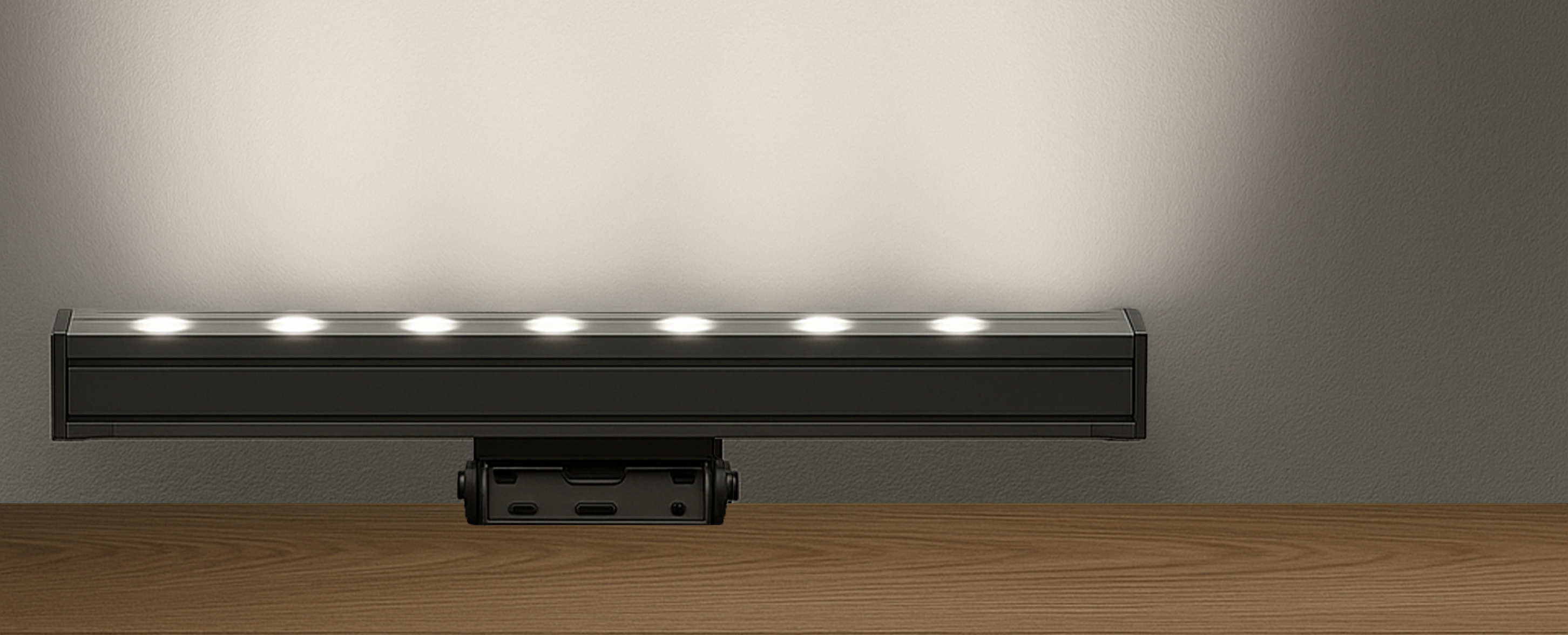

Lineari 30 is a compact recessed in-ground exterior linear luminaire crafted from high-quality extruded anti-corodal hard anodized aluminum, designed to withstand outdoor environments with an IP67 rating. Similar to the Lineari, but more versatile, Lineari 30 can be seamlessly combined with the Dritto 30, as they share the same profile size. This allows you to create ambient lighting with Dritto 30 while utilizing various beam angle optics with Lineari 30. Glare control is enhanced by a unique anti-glare louvre, designed specifically for wall washing and grazing applications to ensure uniform light distribution. Lineari 30 features a robust IP68 cable connector system and supports both surface-mounted installation on brackets and in-ground installation with a housing box. Powered by 24Vdc, this luminaire is the perfect solution for sophisticated outdoor lighting projects.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image SKU Description Datasheet
by – 5 15/16″ x 1 17/64″ , offers LED lighting solutions | Zaneen Architectural DVO0160024MF MeanWell - LPF-16D-24 - 1-10Vdc / Resistance / 10V PWM Dimming - 5.28-16.08W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP5 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
Lineari 30 by Unonovesette – 11 1/4″ x 3 3/16″ , offers high performance and quality material | Zaneen Exterior E12A0123 Slash 30 - Housing Box for 285mm / 11 1/4"
Lineari 30 by Unonovesette – , offers high performance and quality material | Zaneen Exterior E12A0127 Slash 30 - Adjustable bracket (couple) natural anodized
ENCP9 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
Lineari 30 by Unonovesette – 11 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0119 Slash 30 - Anti - Glare Louver - 286mm / 11 1/4"
Lineari 30 by Unonovesette – 11 1/8″ , offers high performance and quality material | Zaneen Exterior E12A0128 Slash 30 - Clear Glass 282mm / 1 1/8"

Also Available within Series

Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0048- Lineari 30- Drive Over - In-Ground / Surface - 282mm / 11 1/8" - 6.4W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0049- Lineari 30 - Drive Over - In-Ground / Surface - 282mm / 11 1/8" - 13.4W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1

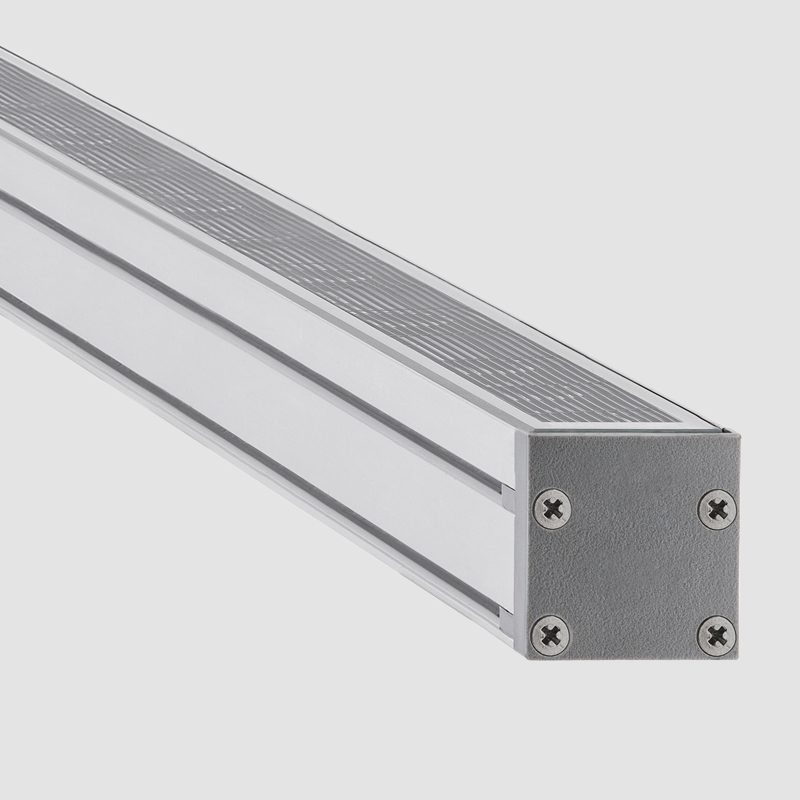

Lineari 30 by Zaneen – 22 3/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0051- Lineari 30 - Drive Over - In-Ground / Surface - 568mm / 22 3/8" - 26.8W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 33 9/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0052- Lineari 30 - Drive Over - In-Ground / Surface - 853mm / 33 9/16" - 19.2W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 33 9/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0053- Lineari 30 - Drive Over - In-Ground / Surface - 853mm / 33 9/16" - 40.2W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 44 13/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0054- Lineari 30 - Drive Over - In-Ground / Surface - 1139mm / 44 13/16" - 25.6W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 44 13/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0055- Lineari 30 - Drive Over - In-Ground / Surface - 1139mm / 44 13/16" - 53.6W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0056- Lineari 30 - Drive Over - In-Ground / Surface - 282mm / 11 1/8" -3.5W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0057- Lineari 30 - Drive Over - In-Ground / Surface - 282mm / 11 1/8" - 7.1W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 22 3/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0058- Lineari 30 - Drive Over - In-Ground / Surface - 568mm / 22 3/8" - 12.8W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 22 3/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0059- Lineari 30 - Drive Over - In-Ground / Surface - 568mm / 22 3/8" - 26.8W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 33 9/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0060- Lineari 30 - Drive Over - In-Ground / Surface - 853mm / 33 9/16" - 10.5W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 33 9/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0061- Lineari 30 - Drive Over - In-Ground / Surface - 853mm / 33 9/16" - 21.3W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 44 13/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0062- Lineari 30 - Drive Over - In-Ground / Surface - 1139mm / 44 13/16" - 14W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1
Lineari 30 by Zaneen – 44 13/16″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior E12I0063- Lineari 30 - Drive Over - In-Ground / Surface - 1139mm / 44 13/16" - 28.4W LED - 2200K / 2700K / 3000K / 4000K - Optics 12° / 21° / 31° / 46° / 13° x 36° - Natural Anodized - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1

Downloads

Request Files

Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior

Lineari 30 by Zaneen – 11 1/8″ x 2 1/8″ Recessed, Wall Grazer offers high performance and quality material | Zaneen Exterior

Tilt

±20°
Lens

12 / 21/ 31 / 46 / 13x36
Dimmable
Color rendering index

>90 CRI
Color temperature

2200 / 2700 / 3000 / 4000
Lumen (luminous flux)

1140 (3000K)
Certified for North American Standards
Protected against ingress of dust; protected against immersion of water between 15cm - 1m for 30 minutes
Protected against 1 joules impact (equivalent to 0.25kg mass dropped from 400mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
