Solido Bollard, 160mm/6 5/16" x 2206mm/86 7/8", 420 LEDS, 34.5W, 3000K / /4000K / 6000K, Max. 3370lm, Optic: 120°, Anodized Black, Opal Diffuser – Zaneen

General

Reset
Series: Solido
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Post
Post products
Product Type: Pedestrian Posts
Pedestrian Posts products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle

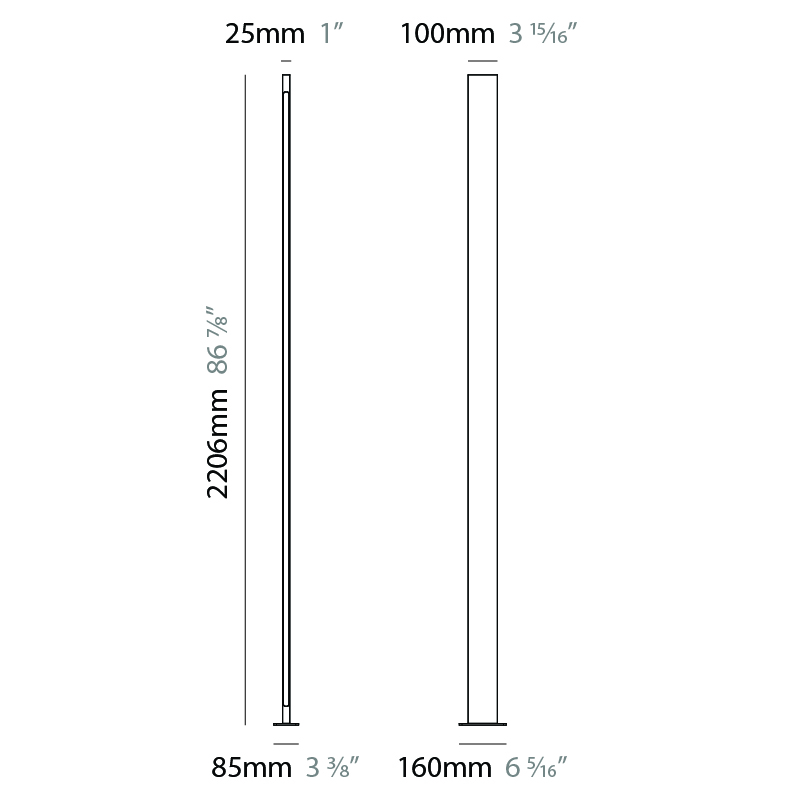

Length (mm): 160
Length (in): 6 5⁄16
Width (mm): 85
Width (in): 3 3⁄8
Height (mm): 2206
Height (in): 86 7⁄8
Weight (kg): 13.5
Diffuser: PMMA - Opal
Fixture Finish: ANB
see color chart below
Fixture Material: Aluminum Alloy
Cable Details: Supplied with one power supply cable 0.8m in length



Electrical

Lamp Type: LED
Input Wattage (W): 34.5
Total Output Wattage (W): 29.3
Dimming: Non-dimming / DALI Dimming / DMX
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 24
Upon Request: 0-10V Dimming



LED

Number of LEDs: 420
Color Temperature (°K): 3000 / 4000 / 6000
Max. Delivered Lumen (lm): 2795 / 3100 / 3370
Nominal Lumen (lm): 4525 / 5020 / 5450
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 120



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK10





Base Model Number: E15B003- New

Specify

Description

Solido is a bollard solution that combines minimalist design with exceptional functionality to enhance outdoor spaces with soft, diffused lighting. Made from durable extruded aluminum alloy and rated IP66 and IP67, it ensures reliable performance in any weather. Featuring mid-power LEDs, Solido is available in four heights (30 cm to 220 cm) and power options ranging from 2.6W to 72W, offering tailored solutions for various lighting needs. Choose between diffused, single, or double light distribution to create the perfect ambiance. Ideal for illuminating private and public gardens, paths, driveways, walkways, and marina docks, its sleek, unobtrusive design complements any outdoor setting. Powered by a remote power supply unit, Solido is a versatile and stylish choice for path and general lighting.

Manufactured in Italy, by Diamante.

Also Available within Series New Series

Solido by Diamante – 6 5/16″ x 11 9/16″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E15B000- Solido Bollard, 160mm/6 5/16" x 294mm/11 9/16", 30 LEDS, 2.5W, 3000K / 4000K / 6000K, Max. 240lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 19 7/16″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E15B001- Solido Bollard, 160mm/6 5/16" x 494mm/19 7/16", 72 LEDS, 6W, 3000K / 4000K / 6000K, Max. 580lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 31 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior E15B002- Solido Bollard, 160mm/6 5/16" x 794mm/31 1/4", 132 LEDS, 11W, 3000K / 4000K / 6000K, Max. 1060lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 86 7/8″ Post, Pedestrian Posts offers high performance and quality material | Zaneen Exterior E15B003- Solido Bollard, 160mm/6 5/16" x 2206mm/86 7/8", 420 LEDS, 34.5W, 3000K / /4000K / 6000K, Max. 3370lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 11 9/16″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E15B004- Solido Bollard, 160mm/6 5/16" x 294mm/11 9/16", 60 LEDS, 5W, 3000K / 4000K / 6000K, Max. 480lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 19 7/16″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E15B005- Solido Bollard, 160mm/6 5/16" x 494mm/19 7/16", 144 LEDS, 12W, 3000K / 4000K / 6000K, Max. 1155lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 31 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior E15B006- Solido Bollard, 160mm/6 5/16" x 794mm/31 1/4", 264 LEDS, 22W, 3000K / 4000K / 6000K, Max. 2120lm, Optic: 120°, Anodized Black, Opal Diffuser
New
Solido by Diamante – 6 5/16″ x 86 7/8″ Post, Pedestrian Posts offers high performance and quality material | Zaneen Exterior E15B007- Solido Bollard, 160mm/6 5/16" x 2206mm/86 7/8", 840 LEDS, 69W, 3000K / /4000K / 6000K, Max. 6740lm, Optic: 120°, Anodized Black, Opal Diffuser
New

Downloads

Request Files

Solido by Diamante – 6 5/16″ x 86 7/8″ Post, Pedestrian Posts offers high performance and quality material | Zaneen Exterior

Solido by Diamante – 6 5/16″ x 86 7/8″ Post, Pedestrian Posts offers high performance and quality material | Zaneen Exterior

Direct
Dimmable
Color rendering index

>80 CRI
Color temperature

3000 / 4000 / 6000
Lumen (luminous flux)

2795 / 3100 / 3370
Certified for North American Standards
Protected against ingress of dust; protected against powerful jets of water or heavy seas
Protected against 20 joules impact (equivalent to 5.0kg mass dropped from 400mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
