Angolo 8, Bollard, 794mm/31 1/4" x 120mm/4 3/4", 3 LED, 8.2W, 2200K / 3000K / 4000K / 5700K, Max 960lm, CRI:80, Non-Dimming - Anodized Black – Zaneen

General

Reset
Series: Angolo
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Post
Post products
Product Type: Bollard
Bollard products
Mounting Location: Above Ground
Above Ground products
Light Distribution: Direct
Direct products



Physical

Shape: Rectangle
Length (mm): 120
Length (in): 4 3⁄4
Width (mm): 110
Width (in): 4 5⁄16
Height (mm): 794
Height (in): 31 1⁄4
Weight (kg): 2.6
Diffuser: PMMA - Opal
Fixture Finish: ANB
see color chart below
Fixture Material: Aluminum Alloy
Cable Details: Supplied with one power supply cable 0.8m in length



Electrical

Lamp Type: LED
Input Wattage (W): 8.2
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Integrated
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Upon Request: 0-10V Dimming



LED

Number of LEDs: 3
Color Temperature (°K): 2200 / 3000 / 4000 / 5700
Max. Delivered Lumen (lm): 570 - 740
Nominal Lumen (lm): 780 - 960
CRI: >80 CRI
Lamp Life (hrs): 60000



Optical

Beam Angle: 10/30/50/12x35/35x12/80



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP66
IK Rating: IK10





Base Model Number: E15B009- New

Specify

Description

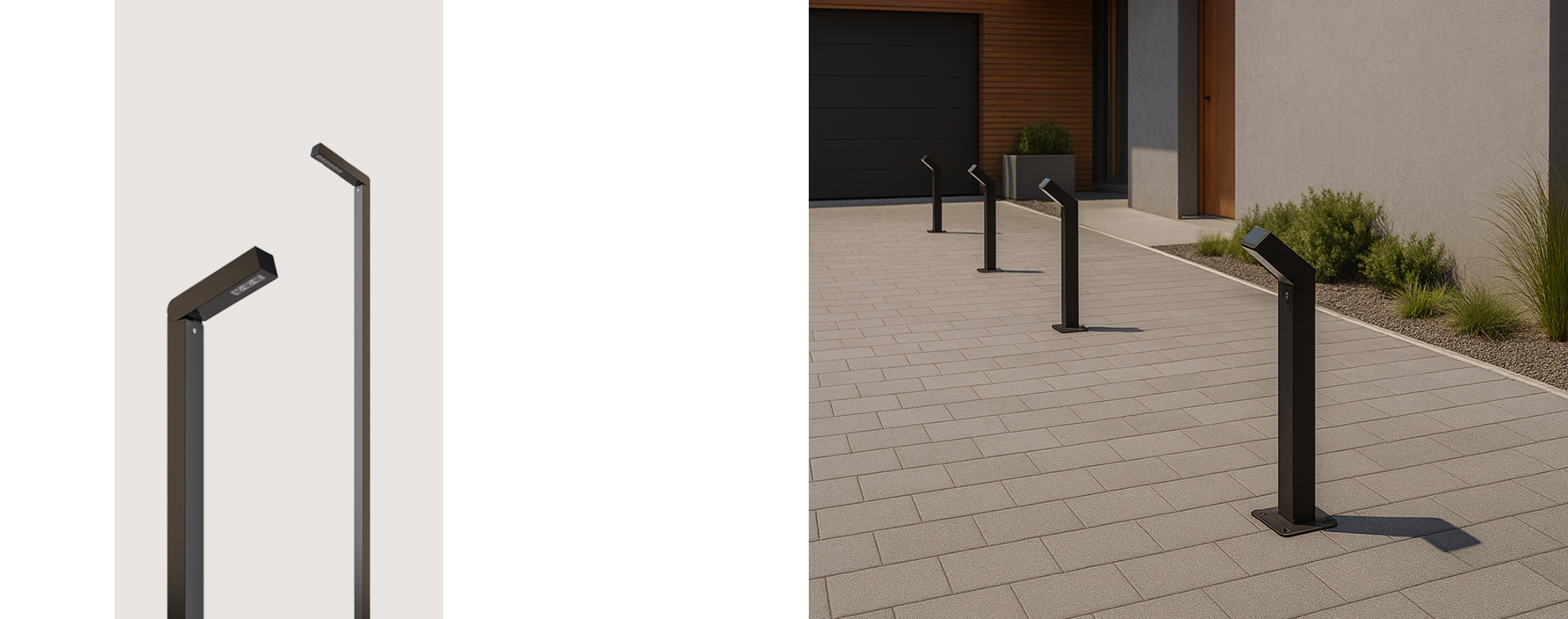

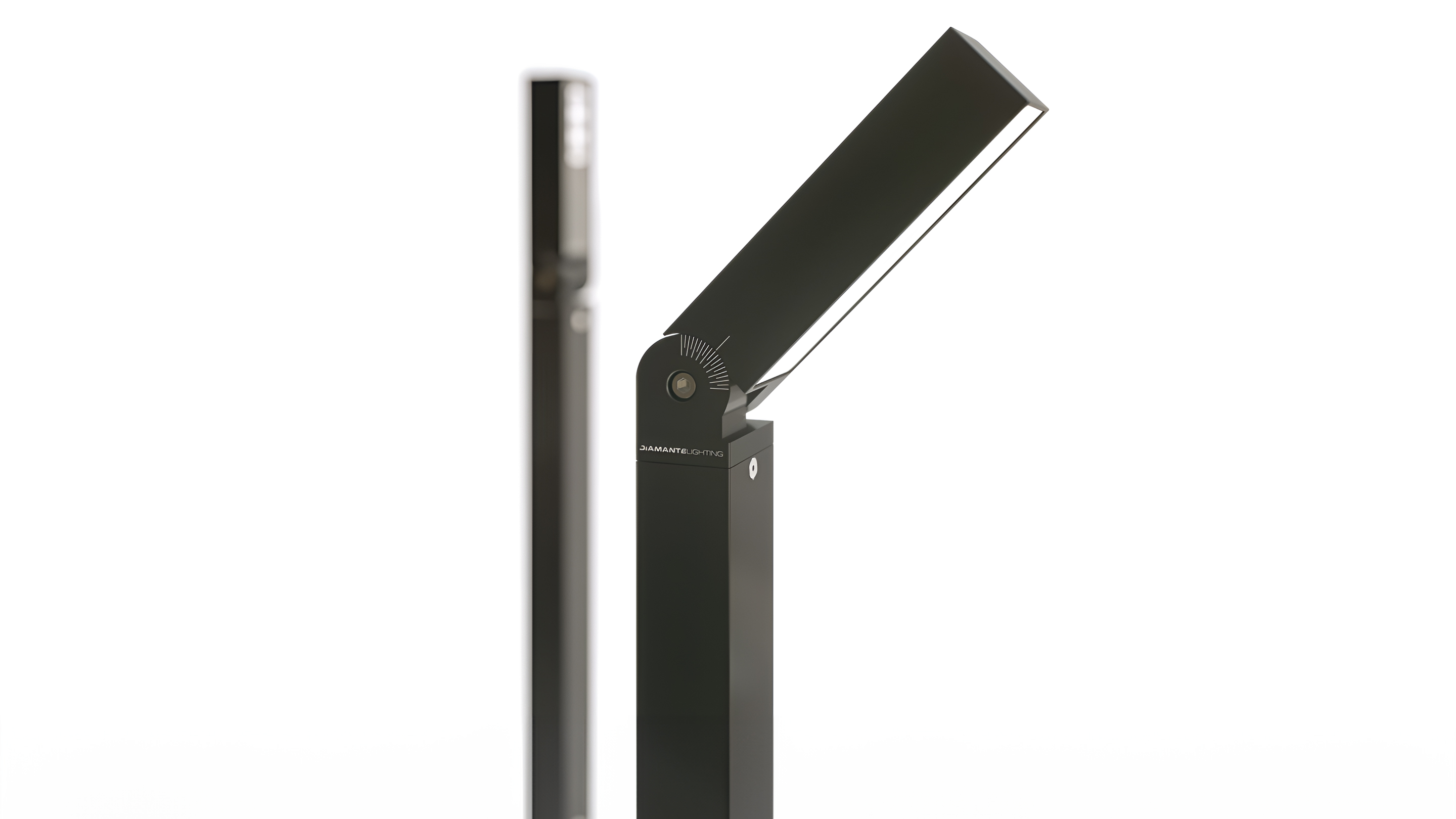

Angolo is a stylish and robust outdoor bollard lighting solution designed to bring precision and elegance to garden and pathway illumination. Constructed from durable extruded aluminum alloy and rated IP66 and IP67, this standing, adjustable luminaire is built to withstand the elements. Available in different height options and power options, the fixture features high-power LEDs for versatile lighting. With various high-precision beam angles and a range of color temperatures, Anglo is perfect for illuminating bushes, trees, garden paths, driveways, walkways, and walls. Transform your outdoor spaces with Anglo’s blend of functionality and sophisticated design.

Manufactured in Italy, by Diamante.

Also Available within Series New Series

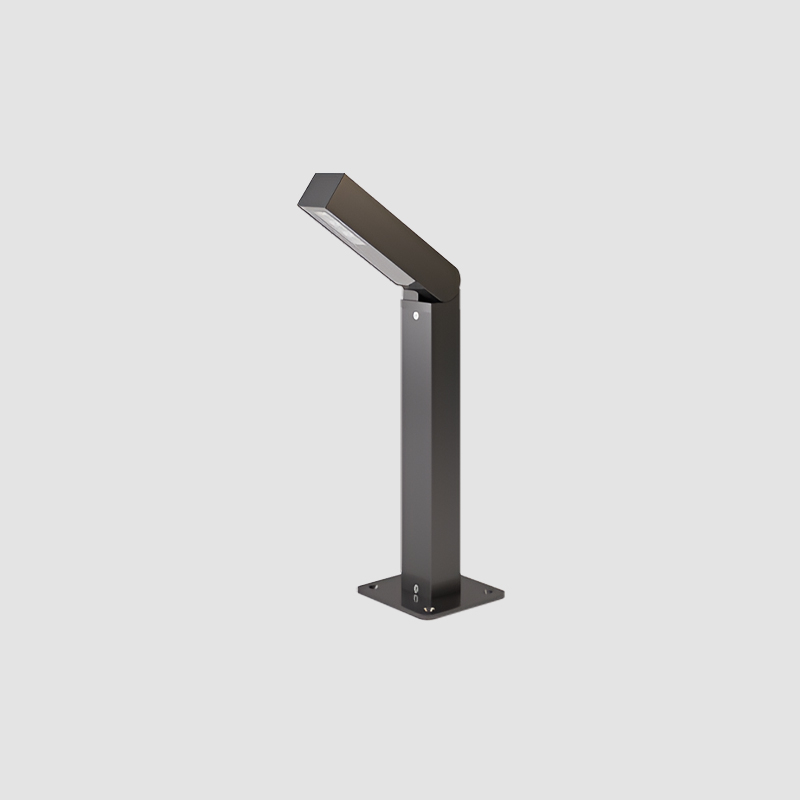

Angolo by Diamante – 4 3/4″ x 19 7/16″ Post, Bollard offers high performance and quality material | Zaneen Exterior E15B008- Angolo 5, Bollard, 494mm/19 7/16" x 120mm/4 3/4", 3 LED, 8.2W, 2200K / 3000K / 4000K / 5700K, Max 960lm, CRI:80, Non-Dimming - Anodized Black
New

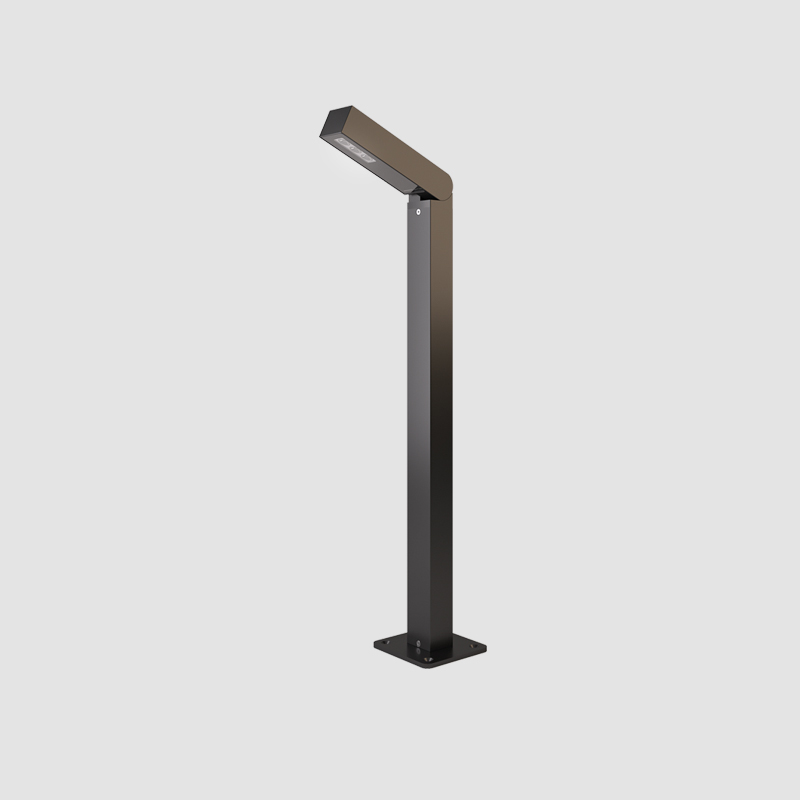

Angolo by Diamante – 4 3/4″ x 31 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior E15B009- Angolo 8, Bollard, 794mm/31 1/4" x 120mm/4 3/4", 3 LED, 8.2W, 2200K / 3000K / 4000K / 5700K, Max 960lm, CRI:80, Non-Dimming - Anodized Black
New

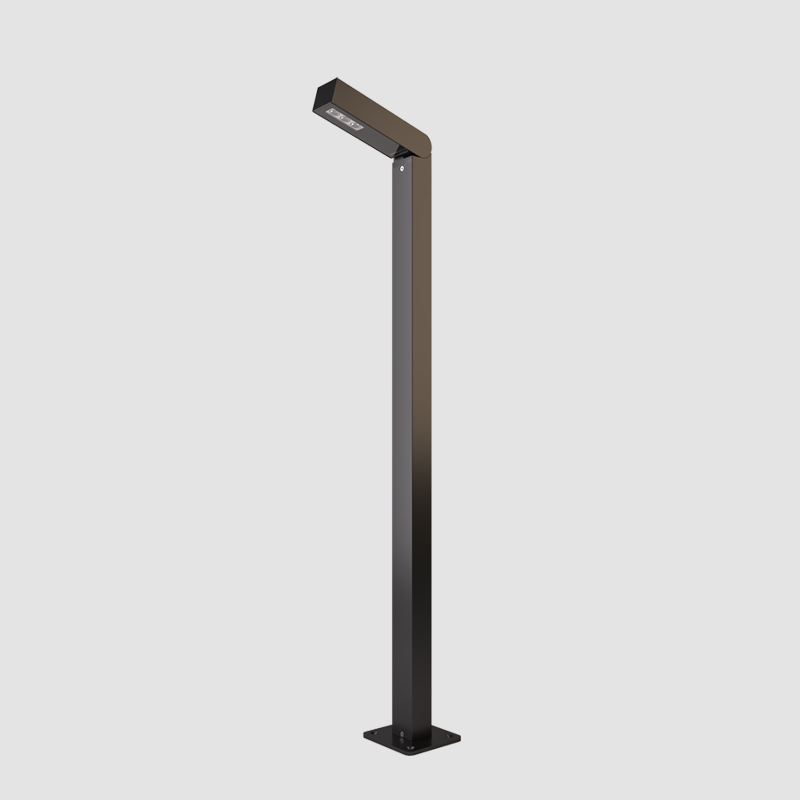

Angolo by Diamante – 4 3/4″ x 43 1/16″ Post, Bollard offers high performance and quality material | Zaneen Exterior E15B010- Angolo 11, Bollard, 1094mm/43 1/16" x 120mm/4 3/4", 3 LED, 8.2W, 2200K / 3000K / 4000K / 5700K, Max 960lm, CRI:80, Non-Dimming - Anodized Black
New

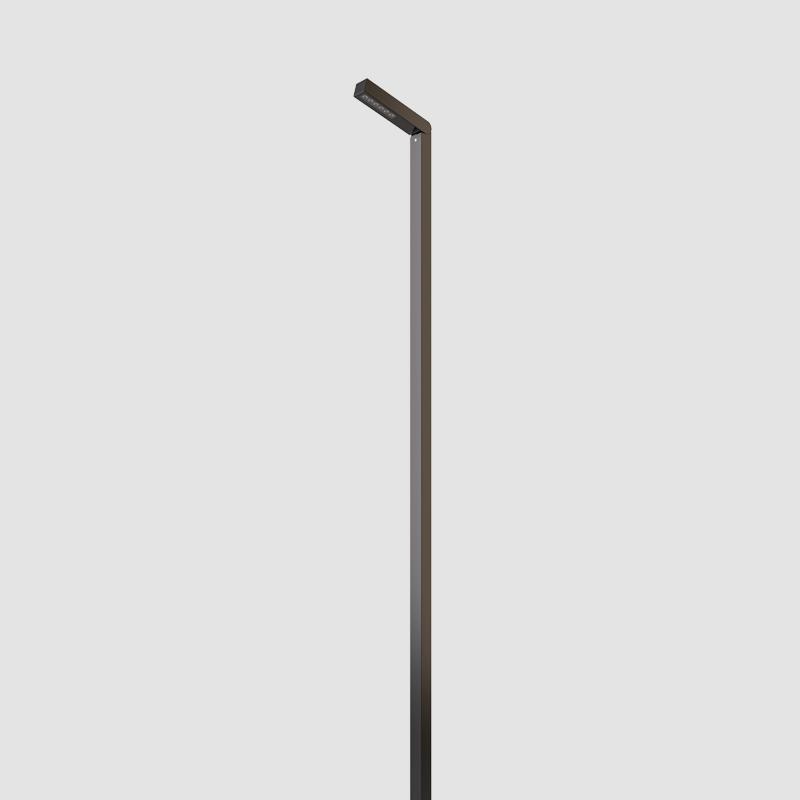

Angolo by Diamante – 1 15/16″ x 128 3/8″ Post, Pedestrian Posts offers high performance and quality material | Zaneen Exterior E15B011- Angolo 25, Bollard, 3260mm/128 3/8" x 50mm/1 15/16", 3 LED, 14W, 2200K / 3000K / 4000K / 5700K, Max. 1465lm, CRI:80, Non-Dimming - Anodized Black
New

Downloads

Request Files

Angolo by Diamante – 4 3/4″ x 31 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior

Angolo by Diamante – 4 3/4″ x 31 1/4″ Post, Bollard offers high performance and quality material | Zaneen Exterior

Direct
Included or excluded LED driver/transformer/ control gear
Color rendering index

>80 CRI
Color temperature

2200 / 3000 / 4000 / 5700
Lumen (luminous flux)

570 - 740
Certified for North American Standards
Protected against ingress of dust; protected against powerful jets of water or heavy seas
Protected against 20 joules impact (equivalent to 5.0kg mass dropped from 400mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
