Point - Recessed Wall, 86mm/3 3/8", 4.5W LED, 165lm, RGBW, Beam 120°, Through Wiring, Anodized Black, Diffuser: Opal Dome shape. (Remote Driver Required) – Zaneen

General

Reset
Series: Point
Partner: Diamante
Diamante products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Marker
Marker products
Mounting Location: Wall
Wall products
Light Distribution: Direct
Direct products



Physical

Shape: Round

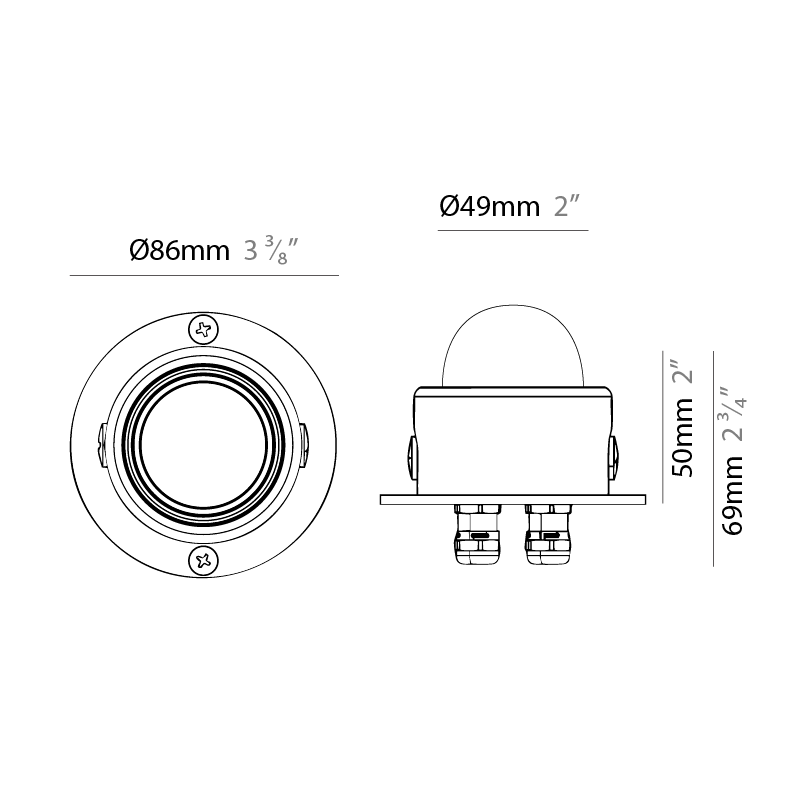

Diameter (mm): 86
Diameter (in): 3 3⁄8
Depth (mm): 87
Depth (in): 3 7⁄16
Weight (kg): 0.29
Diffuser: PMMA - Opal
Fixture Finish: ANB
see color chart below
Fixture Material: Aluminum Alloy
Cable Details: Signal Cable length 0



Electrical

Lamp Type: LED
Input Wattage (W): 4.5
Dimming: Non-Dimmable
Driver Included: Yes
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 48
Upon Request: DMX



LED

Number of LEDs: 24
Color Temperature (°K): RGBW
Max. Delivered Lumen (lm): 165
Nominal Lumen (lm): 265
CRI: >80 CRI
Lamp Life (hrs): 50000



Optical

Beam Angle: 120



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP67
IK Rating: IK08





Base Model Number: E15R003- New

Description

Point is a compact and durable outdoor surface fixture designed to deliver versatile accent lighting. Available with a round dome or a flat cover, Point blends seamlessly into exterior surfaces while providing a soft, uniform glow.

Built to perform in demanding outdoor conditions, Point features a robust aluminium housing, an impact resistant front lens and a fully sealed IP67 construction for long term reliability. Its RGBW light engine offers vibrant colour options as well as crisp whites, making it ideal for creating dynamic visual effects on facades, pathways or landscape elements.

With a wide 120 degree beam and efficient light output, Point provides consistent illumination while remaining discreet in size and appearance. The fixture operates with a remote 48 VDC power supply and integrates easily into DMX control systems for synchronized lighting scenarios.

Perfect for projects requiring durability, colour flexibility and a clean architectural aesthetic, Point delivers performance and elegance in a compact outdoor luminaire.

Manufactured in Italy, by Diamante.

Also Available within Series New Series

Point by Diamante – 3 3/8″ Recessed, Marker offers high performance and quality material | Zaneen Exterior E15R002- Point - Recessed Wall, 86mm/3 3/8", 4.5W LED, 165lm, RGBW, Beam 120°, Through Wiring, Anodized Black, Diffuser: Opal Flat shape. (Remote Driver Required)
New
Point by Diamante – 3 3/8″ Recessed, Marker offers high performance and quality material | Zaneen Exterior E15R003- Point - Recessed Wall, 86mm/3 3/8", 4.5W LED, 165lm, RGBW, Beam 120°, Through Wiring, Anodized Black, Diffuser: Opal Dome shape. (Remote Driver Required)
New
Point by Diamante – 3 3/8″ Surface, Marker offers high performance and quality material | Zaneen Exterior E15W015- Point - Surface Wall, 86mm/3 3/8", 4.5W LED, 165lm, RGBW, Beam 120°, Through Wiring, Anodized Black (Remote Driver Required)
New
Point by Diamante – 2 11/16″ Surface, Marker offers high performance and quality material | Zaneen Exterior E15W016- Point - Surface Wall, 68mm/3 3/8", 4.5W LED, 165lm, RGBW, Beam 120°, Through Wiring, Anodized Black, Diffuser: Opal Dome shape. (Remote Driver Required)
New

Downloads

Request Files

Point by Diamante – 3 3/8″ Recessed, Marker offers high performance and quality material | Zaneen Exterior

Point by Diamante – 3 3/8″ Recessed, Marker offers high performance and quality material | Zaneen Exterior

Wall
Direct
Included or excluded LED driver/transformer/ control gear
Color rendering index

>80 CRI
Color temperature

RGBW
Lumen (luminous flux)

165
Certified for North American Standards
Protected against ingress of dust; protected against immersion of water between 15cm - 1m for 30 minutes
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
