Perfetto-In 90 - Recessed - 92mm / 3 5/8" - 6W LED - 2700K / 3000K / 4000K - 492-562lm, Beam: 21° / 38° - Adjustable - IP65 – Zaneen

General

Series: Perfetto

Subseries: Perfetto-In 90

Partner: Ivela
Ivela products

Division: Exterior
Exterior products

Installation: Recessed
Recessed products

Product Type: Downlight
Downlight products

Mounting Location: Ceiling
Ceiling products

Light Distribution: Direct
Direct products



Physical

Shape: Cylinder

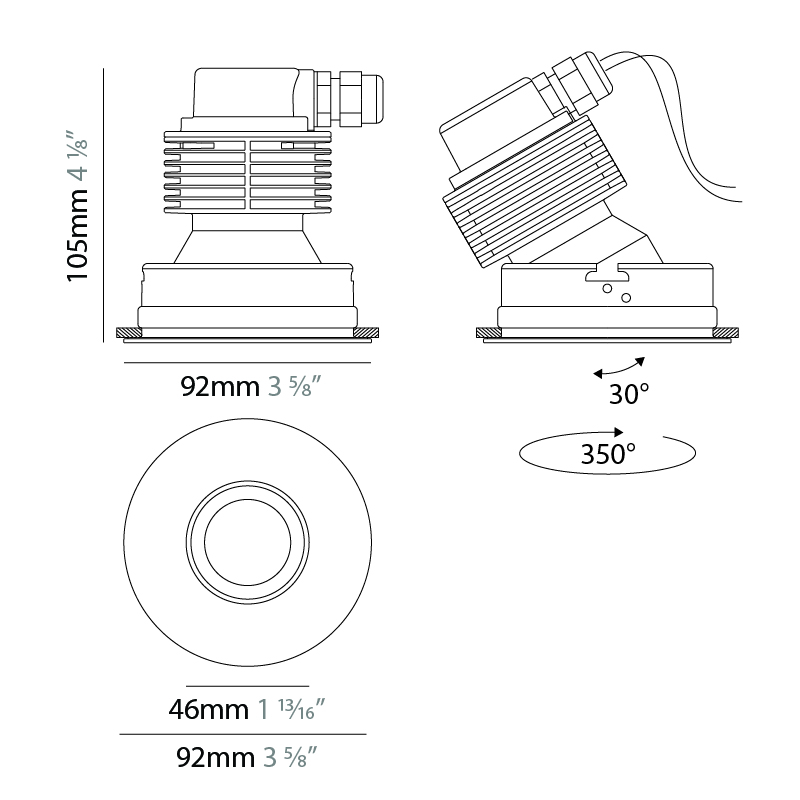

Diameter (mm): 92

Diameter (in): 2 38

Depth (mm): 105

Depth (in): 2 38

Ceiling Thickness (mm): 1 - 20

Ceiling Thickness (in): 1/16 - 13/16

Weight (kg): 0.5

Fixture Finish: MWH / BLK
see color chart below

Fixture Material: Aluminum Die Cast

Cut-out Measurements: 84mm / 3 5/16" Diameter



Electrical

Lamp Type: LED

Input Wattage (W): 8.7

Total Output Wattage (W): 7.4

Dimming: Phase Dimming (120Vac Only)

Driver Included: No

Driver Location: Recessed Housing

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

Upon Request: DALI dimmable



LED

Number of LEDs: 1

Color Temperature (°K): 2700 / 3000 / 4000

Max. Delivered Lumen (lm): 492 / 519 / 562

Nominal Lumen (lm): 579 / 611 / 654

CRI: >90 CRI

Lamp Life (hrs): 50000



Optical

Beam Angle: 21 / 38

Adjustability: Rotational 350° / Tilt 25°



Ratings and Certifications

Certified By: CSA Certified to UL and CSA Standards

IP rating: IP65

IK Rating: IK08





Base Model Number: E56164-

Description

Perfetto is a high-performance recessed downlight, expertly crafted for both indoor and outdoor applications. Featuring the latest generation of COB LEDs, this downlight delivers exceptional lighting with versatile options for both accent and diffused illumination. Available in a selection of sizes as well as a tiltable version, its IP65 rating ensures robust protection, making it suitable for environments requiring high durability. Designed with a professional aesthetic, Perfetto boasts a thin frame that blends seamlessly into any space, achieving an almost invisible effect. With its sleek design and superior functionality, Perfetto is the perfect solution for creating sophisticated lighting environments, both indoors and out.

Manufactured in Italy, by Ivela.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0090500ES ERP - ESS010W-0500-18 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 9W - 500mA - 120 / 277Vac - LED power supply

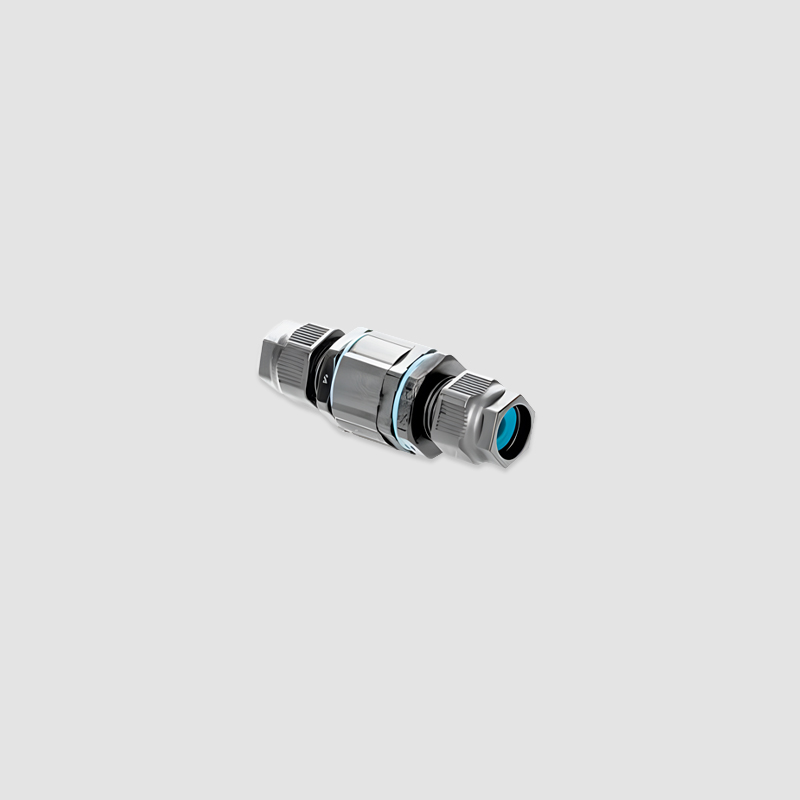

Perfetto by Ivela –  ,  offers high performance and quality material | Zaneen Exterior E5912022 IP65 Rated Cable Connector
E5912023 Recessed Square frame for adjustable single insert for Perfetto-In 90 IP65/20
E5912024 Round Recessing Frame for Adjustable Double Inserts
 by  – 6 1/8″ x 1 3/8″ ,  offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet

Also Available within Series

Perfetto by Ivela – 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E56163- Perfetto-In 60 - Recessed - 61mm / 2 3/8" - 6W LED - 2700K / 3000K / 4000K - Beam: 21° / 38° / 15° + 41° - Tiltable: 30° - IP65
Perfetto by Ivela – 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E56164- Perfetto-In 90 - Recessed - 92mm / 3 5/8" - 6W LED - 2700K / 3000K / 4000K - 492-562lm, Beam: 21° / 38° - Adjustable - IP65
Perfetto by Ivela – 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior E56165- Perfetto-In 90 - Recessed - 92mm / 3 5/8" - 8.7W LED - 2700K / 3000K / 4000K - 659-745lm, 700mA, Beam: 26° / 38° / 44° - Adjustable - IP65

Downloads

Perfetto by Ivela – 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior

Perfetto by Ivela – 2 3/8″ Recessed, Downlight offers high performance and quality material | Zaneen Exterior

Ceiling
Direct
Circle wall or ceiling cut-out

84mm / 3 516" Diameter
Ceiling thickness

1 - 20mm /
116 - 1316''
Ceiling thickness selection
Tilt

Rotational 350° / 25°
Rotation

350° / Tilt 25°
Dimmable
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

492 / 519 / 562
CSA Certified to UL and CSA Standards
Protected against ingress of dust; protected against jets of water
Protected against 5 joules impact (equivalent to 1.7kg mass dropped from 300mm above the surface)


Fixture Finishes

MWH - Matte White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
