General

Series: Mini One

Brand: Platek
Platek products

Division: Exterior
Exterior products

Mounting Type: Post
Post products

Mounting Location: Above Ground
Above Ground products

Subcategory: Bollard - Mini
Bollard - Mini products



Physical

Shape: Rectangle

Length (mm): 100

Length (in): 3 1516

Width (mm): 100

Width (in): 3 1516

Height (mm): 150

Height (in): 5 78

Light Distribution: Direct

Diffuser: Transparent Flat Tempered Glass

Fixture Finish: GRY / ANT
see color chart below

Fixture Material: Aluminum Die Cast

Upon Request: Finishes - Black



Electrical

Lamp Type: LED

Input Wattage (W): 7.3

Total Output Wattage (W): 6

Dimming: Non-Dimmable

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - 120Vac

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

Upon Request: (Not included - see components [IP65 or higher enclosure to be supplied by others]): Remote: 0-10Vdc dimming / Phase dimming / Non-dimming 120/277Vac



LED

Color Temperature (°K): 2700 / 3000 / 4000

Max. Delivered Lumen (lm): 95 / 100

Nominal Lumen (lm): 780 / 810

CRI: >90 CRI

Lamp Life (hrs): 60000



Optical

Optic°: 1 Opening



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK07

Bug Rating: B0 U0 G0

Upon Request: Higher Maximum Ambient Temperature





Base Model Number: E9B001-

Description

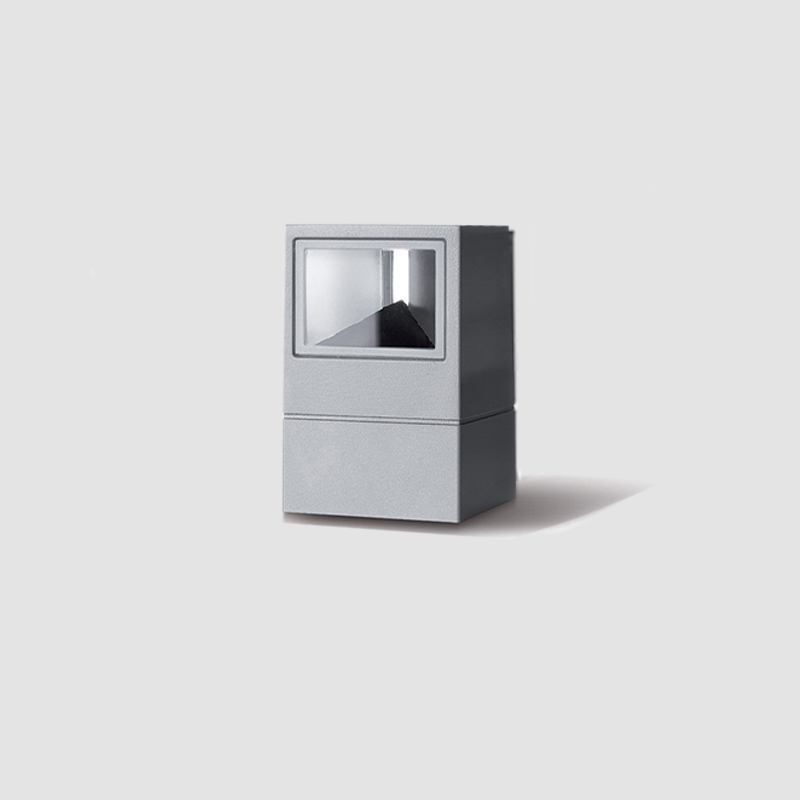

Mini One is a compact cube with a rigorous and geometric design that combines elegance with exceptional flexibility. Its base version can be installed to provide grazing light on walls and ceilings, with its purity enhanced by the total absence of visible screws and a completely hidden wall mount. Mini One is available with two or four windows, or with light blades. The bollard version is perfect for illuminating pedestrian walkways and gardens.

Mini One corresponds to the extended family of:

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0060500ES ERP - ESS010W-0500-12 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 6W - 500mA - 120 / 277Vac - LED power supply - Used with ENCP3 - Used with IP68 - Outdoor Rated - ENCP20, ENCP22
Mini One by Platek –  ,  offers high performance and quality material | Zaneen Exterior E9A11900 Mini One Paletto - Tie rod for Mini One
E9A34800 Mini One - Spike for Post
 by  – 6 1/8″ x 1 3/8″ ,  offers LED lighting solutions | Zaneen Architectural ENCP3 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
 by Platek –  ,  offers high performance and quality material | Zaneen Exterior E9A33600 IP68 Gel Connector - 3 x 1.5mm^2

Also Available within Series

Mini One by Platek – 3 15/16″ x 5 7/8″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E9B001- Mini One Paletto 150 - 1 Opening - 7.3W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 5 7/8″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E9B002- Mini One Paletto 150 - 2 Openings - 1 x 7.3W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 5 7/8″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior E9B004- Mini One Paletto 150 - 4 Openings - 7.3W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 19 11/16″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B008- Mini One Paletto 500 - 1 Opening - 9.5W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 19 11/16″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B009- Mini One Paletto 500 - 2 Openings - 9.5W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 19 11/16″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B010- Mini One Paletto 500 - 4 Openings - 9.5W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 31 1/2″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B246- Mini One - Post 1 Opening - 800mm / 31 1/2" - 10.5W LED - 2700K / 3000K / 4000K
Mini One by Platek – 3 15/16″ x 31 1/2″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B247- Mini One - Post 2 Opening - 800mm / 31 1/2" - 10.5W LED - 3000K / 4000K -
Mini One by Platek – 3 15/16″ x 31 1/2″ Post, Bollard offers high performance and quality material | Zaneen Exterior E9B248- Mini One - Post 4 Opening - 800mm / 31 1/2" - 10.5W LED - 2700K / 3000K / 4000K -

Downloads

Mini One by Platek – 3 15/16″ x 5 7/8″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior

Mini One by Platek – 3 15/16″ x 5 7/8″ Post, Bollard - Mini offers high performance and quality material | Zaneen Exterior

Direct
Included or excluded LED driver/transformer/ control gear
Lens

1 Opening
Color rendering index

>90 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

95 / 100
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 2 joules impact (equivalent to 0.5kg mass


Fixture Finishes

GRY - Gray ANT - Anthracite
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
