Series: Frame
Partner: Platek
Platek products
Division: Exterior
Exterior products
Installation: Recessed
Recessed products
Product Type: Step Light
Step Light products
Mounting Location: Wall
Wall products
Light Distribution: Asymmetric
Asymmetric products



Physical

Shape: Rectangle
Length (mm): 205
Length (in): 8 1⁄16
Width (mm): 50
Width (in): 1 15⁄16
Depth (mm): 72
Depth (in): 2 13⁄16
Weight (kg): 0.65
Weight (lbs): 1.43
Screws: No visible screws
Diffuser: Clear tempered glass
Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ
see color chart below
Fixture Material: Aluminum Die Cast
Cut-out Measurements: 200mm x 45mm



Electrical

Lamp Type: LED
Input Wattage (W): 5
Total Output Wattage (W): 4
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - 120Vac
Driver Class: Class 2
Input Voltage (V): 120 - 277
Output Voltage (V): 12
Upon Request: Non-dimming 277Vac



LED

Color Temperature (°K): 2700 / 3000 / 4000
Max. Delivered Lumen (lm): 145 / 145 / 150
Nominal Lumen (lm): 420 / 420 / 440
CRI: >80 CRI
Lamp Life (hrs): 60000



Optical

Optic°: Asymmectric



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
IK Rating: IK07
Bug Rating: B0 U0 G0
Upon Request: Higher Maximum Ambient Temperature





Base Model Number: E9R128-

Specify

Description

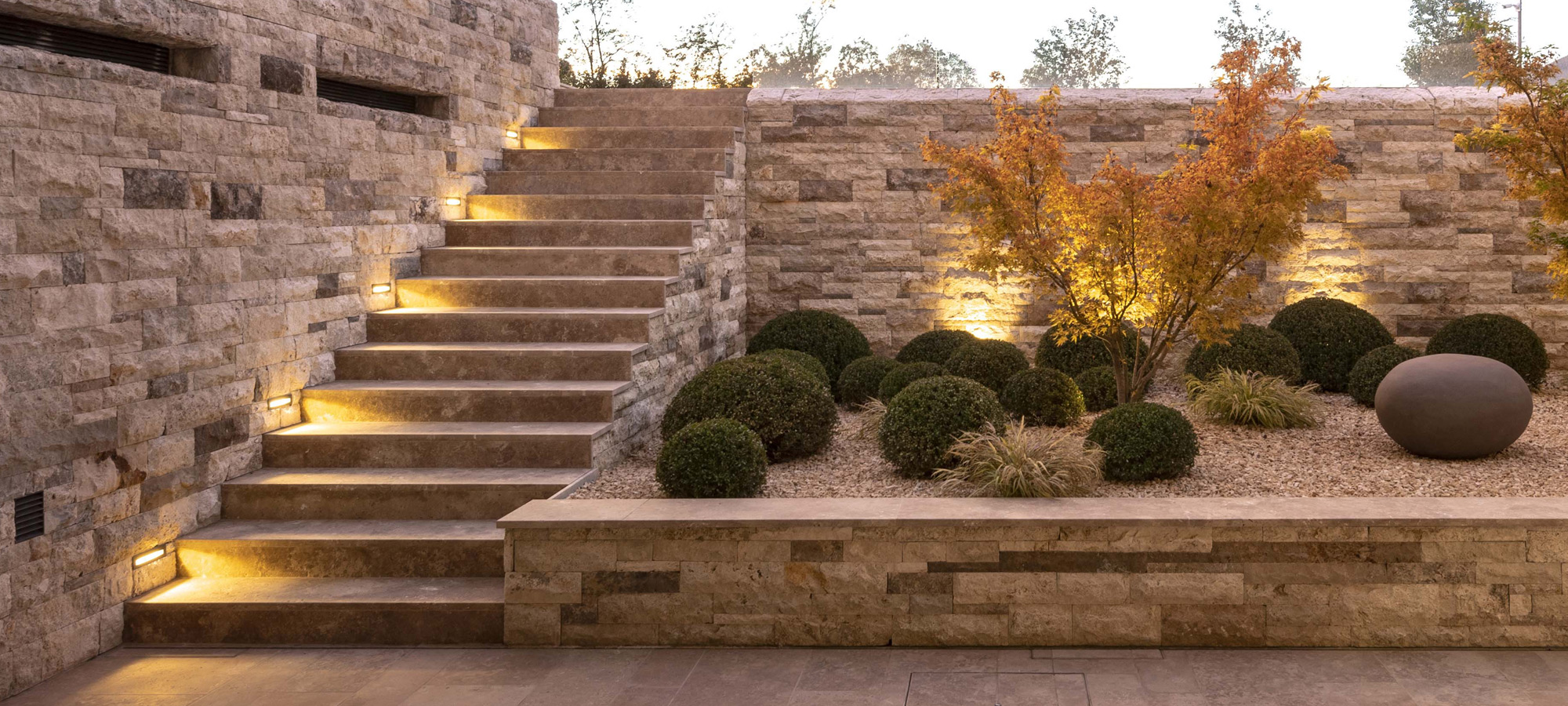

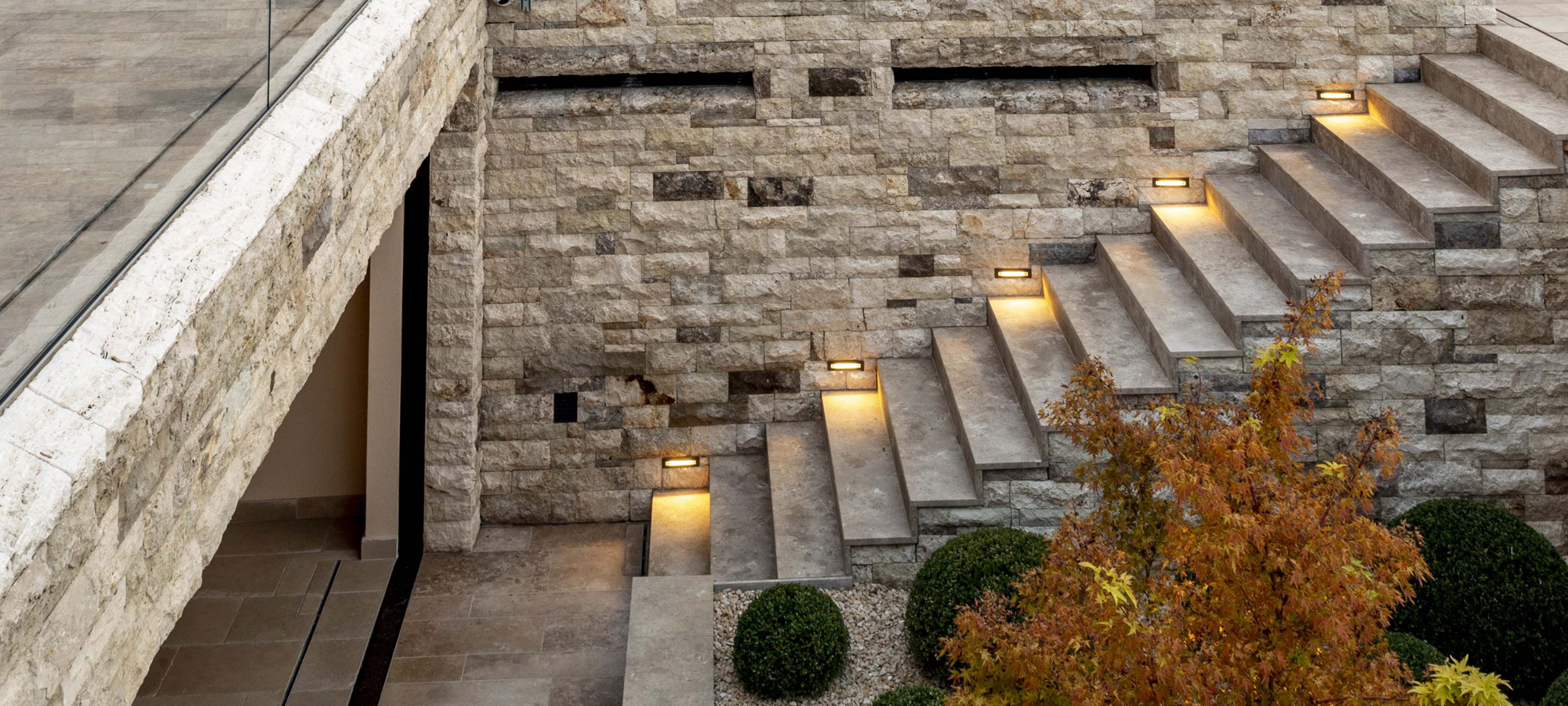

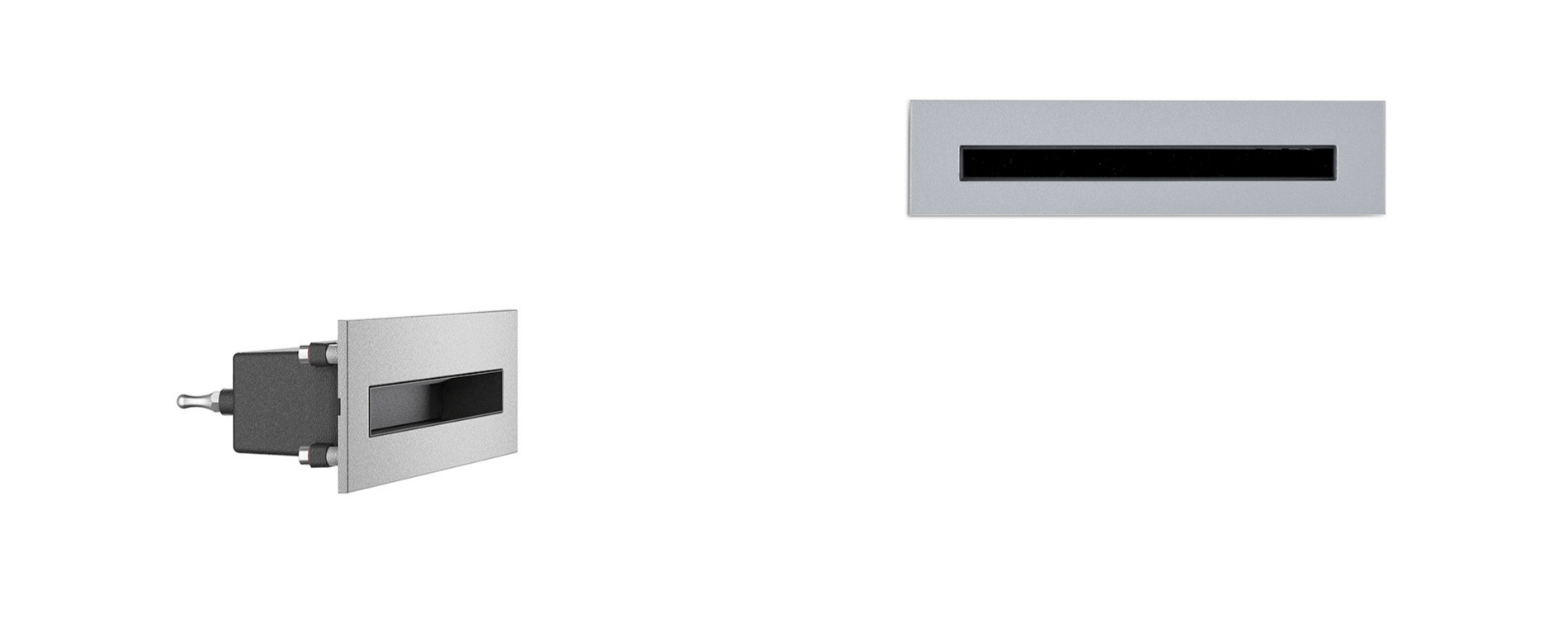

Frame is a recessed outdoor wall light with asymmetric light distribution making it ideal as a step light or wayfinding light. Constructed of corrosion-resistant die-cast aluminum, Frame is protected with anodizing treatment, epoxy powder base coating and polyester painting in a variety of different color finish options, with an ingress protection of IP65 and impact resistance of IK07.  Frame is ideal for perimeter walls or as a step marker, as it is a product of great formal elegance, as the thin central slot emits a light blade which is very impressive.

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0100012HA Hatch - LV10-12N-120-A - Non-dimming - 10W - 12Vdc - 120Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DND0120012HY Hatch - LV12-12N-UNV-Y - Non-dimming - 12W - 12Vdc - 120-277Vac - LED power supply -Used with ENCP4 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
Frame by Platek – 7 7/8″ x 1 3/4″ , offers high performance and quality material | Zaneen Exterior E9A19100 Recessed box - 200mm x 44.5mm x 70mm - For Frame series
by – 3 5/8″ x 1 9/16″ , offers LED lighting solutions | Zaneen Architectural ENCP4 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Product Accessories

Image SKU Description Datasheet
by Platek – , offers high performance and quality material | Zaneen Exterior E9A33600 IP68 Gel Connector - 3 x 1.5mm^2

Also Available within Series

Frame by Platek – 8 1/16″ Recessed, Step Light offers high performance and quality material | Zaneen Exterior E9R128- Frame - Recessed - Wall - 5W (12 LED) - 2700K / 3000K / 4000K - Asymmetric

Downloads

Request Files

Frame by Platek – 8 1/16″ Recessed, Step Light offers high performance and quality material | Zaneen Exterior

Frame by Platek – 8 1/16″ Recessed, Step Light offers high performance and quality material | Zaneen Exterior

Wall
Asymmetric
Square wall or ceiling cut-out

200mm x 45mm
Lens

Asymmectric
Color rendering index

>80 CRI
Color temperature

2700 / 3000 / 4000
Lumen (luminous flux)

145 / 145 / 150
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 2 joules impact (equivalent to 0.5kg mass


Fixture Finishes

BLK - Black WHI - White GRY - Grey COR - Corten ANT - Anthracite BRZ - Bronze
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
