General

Series: Mini Special

Brand: Platek
Platek products

Division: Exterior
Exterior products

Mounting Type: Surface
Surface products

Mounting Location: Wall
Wall products

Subcategory: Wall Effect
Wall Effect products



Physical

Shape: Rectangle

Length (mm): 200

Length (in): 7 78

Height (mm): 100

Depth (mm): 100

Height (in): 3 1516

Depth (in): 3 1516

Light Distribution: Direct / Indirect

Weight (kg): 1.6

Weight (lbs): 3.53

Diffuser: Clear tempered glass / Diffused Sandblasted Glass

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ
see color chart below

Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED

Input Wattage (W): 21

Total Output Wattage (W): 16

Dimming: Non-Dimmable

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - 120Vac

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 700

Upon Request: Remote: 0-10Vdc dimming / Phase dimming / Non-dimming 120/277Vac



LED

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 1770 / 1840

Nominal Lumen (lm): 2080 / 2160

CRI: >80 CRI

Lamp Life (hrs): 60000



Optical

Optic°: 2 Openings



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK05

Upon Request: Higher Maximum Ambient Temperature





Base Model Number: E9W020-

Description

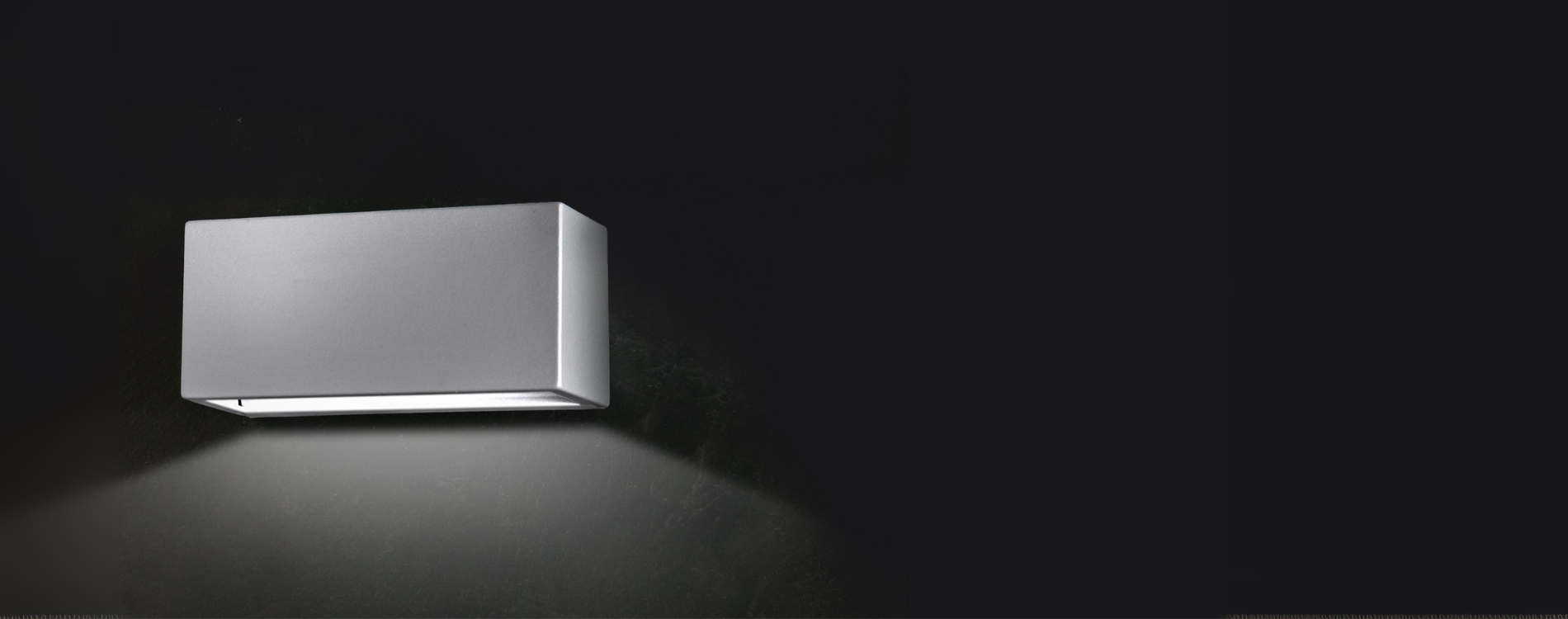

Mini Special is a family of products by minimalist design and pure geometric forms, able to provide grazing light on the walls, ceiling or as projector through mounting bracket. It is available with a single and double opening. The product is installed on wall and ceiling by a hidden fixing system with no visible screws.

Mini Special corresponds to the extended family of:

Manufactured in Italy, by Platek.

Also Available within Series

Mini Special by Platek – 7 7/8″ x 5 1/2″ Surface, Flood offers high performance and quality material | Zaneen Exterior E9F272- Mini Special - Floodlight - 200mm / 7 7/8" x 110mm / 4 5/16" - 10W (1 LED) / 17.5W (4 LED) - 3000K / 4000K - Optics Diffused or Asymmetric
Mini Special by Platek – 7 7/8″ x 3 15/16″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior E9W019- Mini Special - Wall - Surface - 1 Opening - 200mm / 7 7/8" x 100mm / 3 15/16" x 100mm / 3 15/16"- 10W (1 LED) / 19.5W (4 LED) - 3000K / 4000K - Optics Diffused / Transparent / Asymmetric
Mini Special by Platek – 7 7/8″ x 3 15/16″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior E9W020- Mini Special - Wall - Surface - 2 Openings - 200mm / 7 7/8" x 100mm / 3 15/16" x 100mm / 3 15/16" - 21W (2 LED) - 3000K / 4000K - Optics Diffused or Transparent

Downloads

Mini Special by Platek – 7 7/8″ x 3 15/16″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior

Mini Special by Platek – 7 7/8″ x 3 15/16″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior

Wall
Direct/ Indirect
Included or excluded LED driver/transformer/ control gear
Lens

2 Openings
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

1770 / 1840
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 0.7 joules impact (equivalent to 0.25kg mass


Fixture Finishes

BLK - Black WHI - White GRY - Gray COR - Corten ANT - Anthracite BRZ - Bronze
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
