General

Series: Special

Brand: Platek
Platek products

Division: Exterior
Exterior products

Mounting Type: Surface
Surface products

Mounting Location: Wall
Wall products

Subcategory: Wall Effect
Wall Effect products



Physical

Shape: Rectangle

Length (mm): 300

Length (in): 11 1316

Height (mm): 150

Depth (mm): 150

Height (in): 5 78

Depth (in): 5 78

Light Distribution: Direct / Indirect

Screws: No visible screws

Diffuser: Clear tempered glass / Diffused Sandblasted Glass

Fixture Finish: BLK / WHI / GRY / COR / ANT / BRZ
see color chart below

Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED

Input Wattage (W): 37

Total Output Wattage (W): 34

Dimming: Non-Dimmable

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

Upon Request: (Not included - see components [IP65 of higher enclosure to be supplied by others]) Remote: 0-10Vdc dimming / Phase dimming



LED

Color Temperature (°K): 3000 / 4000

Max. Delivered Lumen (lm): 3880 / 4040

Nominal Lumen (lm): 4800 / 4992

CRI: >80 CRI

Lamp Life (hrs): 60000



Optical

Optic°: 2 Openings

Beam Angle: Wide / Diffused



Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK05





Base Model Number: E9W073-

Description

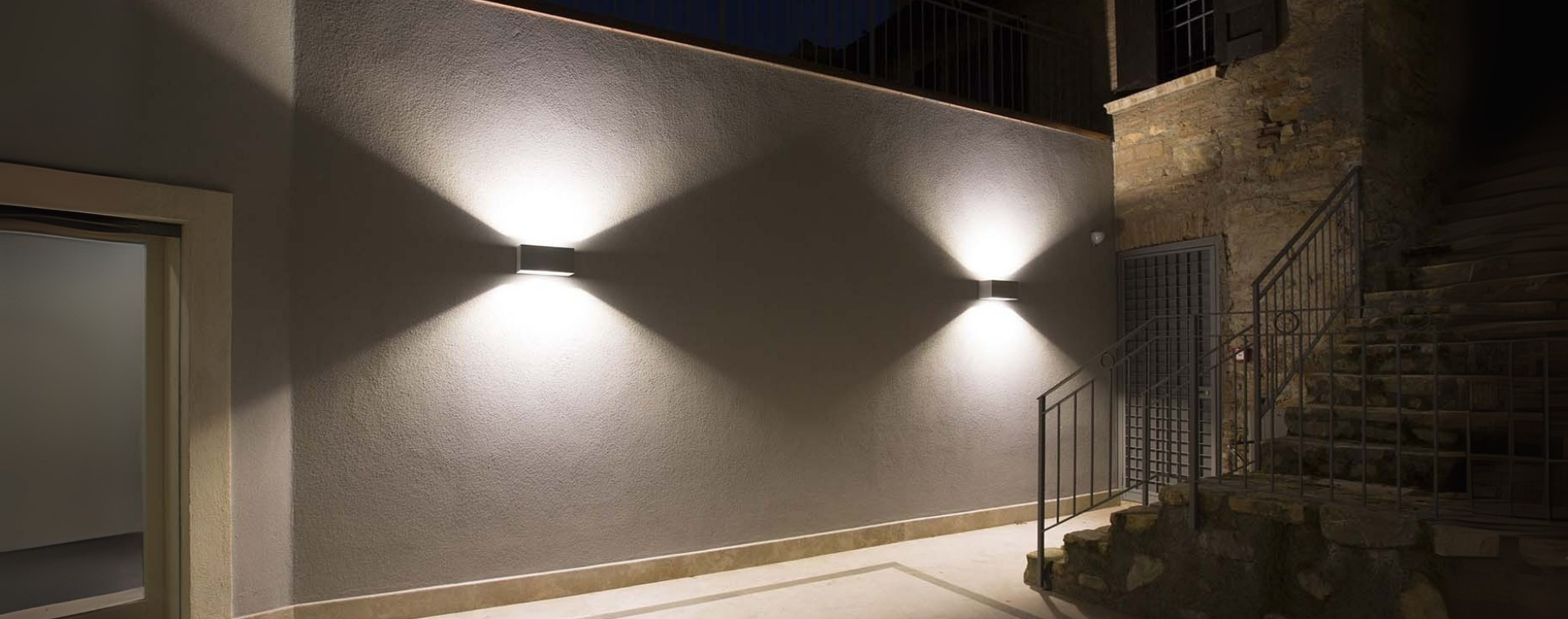

Special is a surface mount LED light fixture in the classic rectangular cuboid shape. There are two lengths available, with various light distribution options. Light output can be up to 1,680 lumens. Constructed of corrosion-resistant, die-cast aluminum alloy, Special is protected with anodizing treatment, epoxy powder base coating and polyester painting in a variety of color finish options, as well as an ingress protection of IP65 and impact resistance of IK05.

Special corresponds to the extended family of:

Manufactured in Italy, by Platek.

Product Components to be ordered separately

Image SKU Description Datasheet
DTM0210500ES ERP - ESS030W-0500-42 - 0-10Vdc & Phase [Leading and Trailing Edge @120Vac only] dimming - 21W - 500mA - 120 / 277Vac - LED power supply -Used with ENCP3 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
ENCP6 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

Special by Platek – 11 13/16″ x 5 7/8″ Surface, Downlight offers high performance and quality material | Zaneen Exterior E9C026- Special - Bulkhead - Surface - Transparent Glass - 300mm / 11 13/16" x 150mm / 5 7/8" - 27W LED - 3000K / 4000K - Optic 46°
Special by Platek – 11 13/16″ x 5 7/8″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior E9W072- Special - Surface - Wall - 1 Opening - 19.2W LED - 3000K / 4000K - Optic Diffused or Transparent
Special by Platek – 11 13/16″ x 5 7/8″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior E9W073- Special - Surface - Wall - 2 Opening - 37W LED - 3000K / 4000K - Optics Diffused or Transparent

Downloads

Special by Platek – 11 13/16″ x 5 7/8″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior

Special by Platek – 11 13/16″ x 5 7/8″ Surface, Wall Effect offers high performance and quality material | Zaneen Exterior

Wall
Direct/ Indirect
Included or excluded LED driver/transformer/ control gear
Lens

2 Openings
Color rendering index

>80 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

3880 / 4040
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 0.7 joules impact (equivalent to 0.25kg mass


Fixture Finishes

BLK - Black WHI - White GRY - Gray COR - Corten ANT - Anthracite BRZ - Bronze
Digital Disclaimer: Not all screens are calibrated the same, and therefore, colors will appear differently between screens.
