General

Reset

Series: Chiodo

Partner: Platek

Division: Exterior

Installation: Surface

Mounting Location: Wall

Light Distribution: Indirect

Physical

Shape: Disc

Diameter (mm): 180

Diameter (in): 7 ¹⁄₁₆

Extension (mm): 90

Extension (in): 3 ⁹⁄₁₆

Weight (kg): 1.16

Weight (lbs): 2.55

Screws: No visible screws

Diffuser: Frosted Methacrylate

Gasket: Gore (R) valve

Fixture Finish: BLK / COR

see color chart below

Fixture Material: Aluminum

Cable Details: 3 x 1mm^2

Upon Request: Finishes - White

Electrical

Lamp Type: LED

Input Wattage (W): 11

Total Output Wattage (W): 9

Dimming: Non-Dimmable / 0-10V Dimming

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 24

LED

Color Temperature (°K): 3000

Max. Delivered Lumen (lm): 340

Nominal Lumen (lm): 710

CRI: >80 CRI

Lamp Life (hrs): 50000

Optical

Optic°: 121

Beam Angle: Diffused

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK05

Upon Request: Higher Maximum Ambient Temperature

Base Model Number: E9W588-

Specify

Base Model Number:
E9W588-

Chiodo - Surface - ⌀180mm - 7 1/16″ - 11W LED - 3000°K - Frosted Methacrylate

Final Option Selection

Finish Options

Undo

When two finishes are shown in a single image:
A refers to the first color and B refers to the second color.

Model Number: E9W588-

Get Spec Sheet

Description

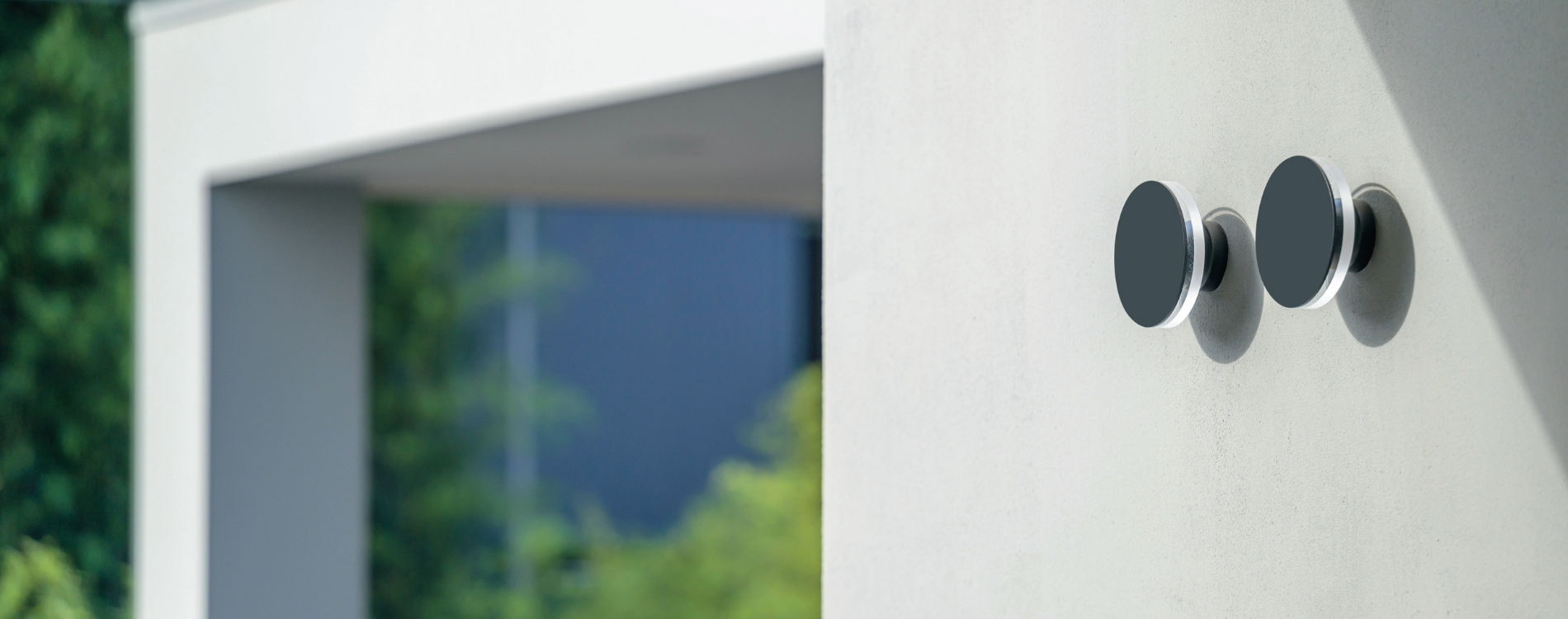

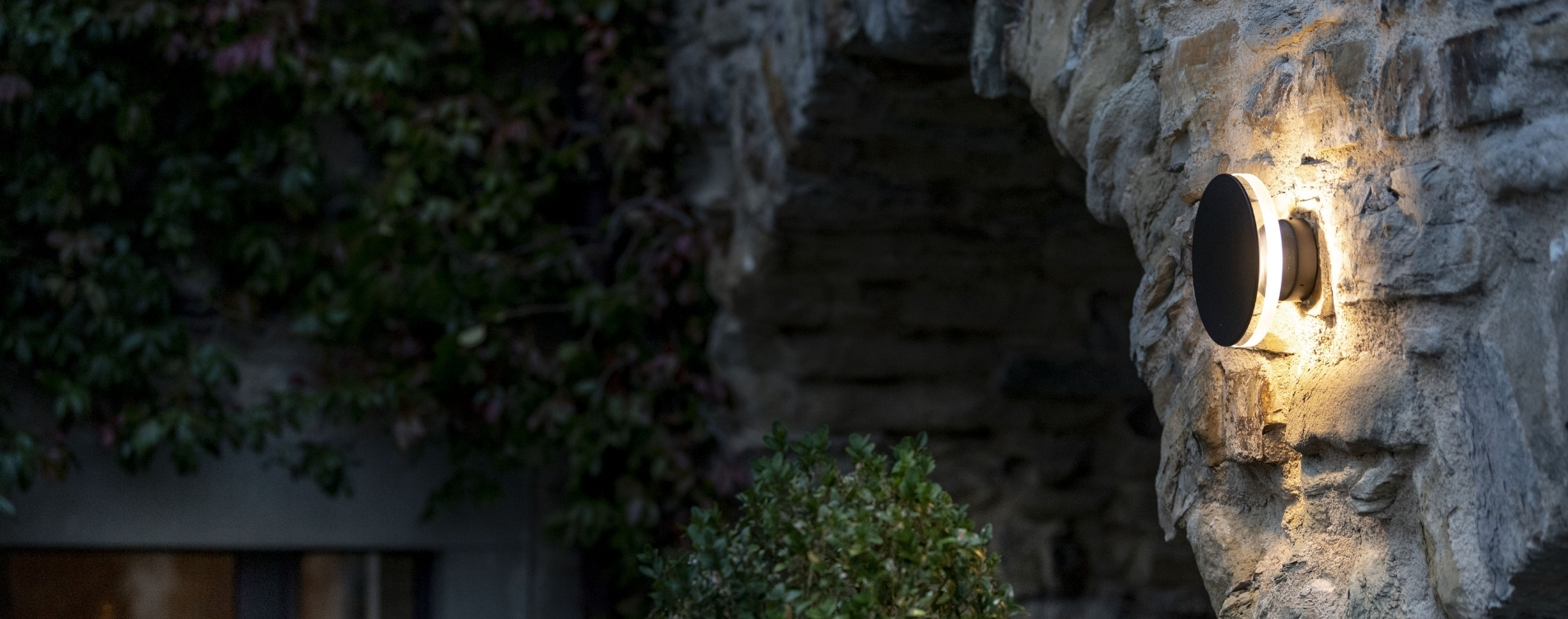

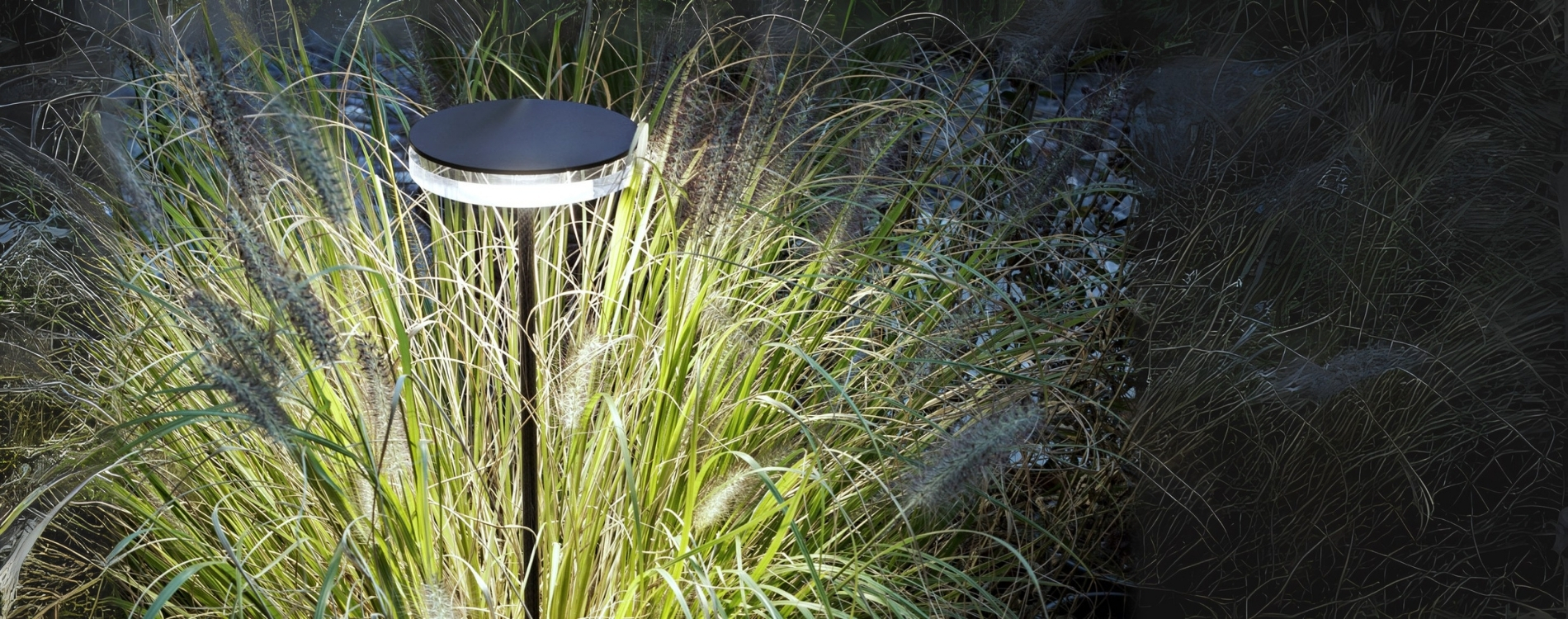

Chiodo's simple design will transform spaces and is designed as a family of poles with three heights, or as a surface wall mount. When hidden among bushes or visible in plain sight, the halo diffuser is a unique feature to the fixture. It can create an intense light particularly suitable for scenic lighting of gardens or large vases with flowers and greenery. By using different heights you can create magical compositions emulating small forests of pure light. Chiodo can be fixed in the ground by a spike, or on the floor through a small base. This bollard and wall-mount landscape lighting fixture is available in different color finish options.

Manufactured in Italy, by Platek.

Also Available within Series

	E9B233-	Chiodo - Bollard 600 with Spike - 12W LED - 3000K - Optic: 93° - Diffused - 120Vac Direct Line - 50/60Hz
	E9B234-	Chiodo - Bollard 1100 with Spike - 12W LED - 3000K - Optic: 93° - Diffused - 120Vac Direct Line - 50/60Hz
	E9B235-	Chiodo - Bollard 1700 with Spike - 12W LED - 3000K - Optic: 93° - Diffused - 120Vac Direct Line - 50/60Hz
	E9W588-	Chiodo - Wall - 12W LED - 3000K - Optic 121° - 120Vac Direct Line - 50/60Hz
