Compacto by Letroh | Zaneen Architectural
Suspension
Compacto - Suspension

Downloads Finishes Inspiration

General

Reset
Series: Compacto
Partner: Letroh
Letroh products
Division: Architectural
Architectural products
Installation: Suspension
Suspension products
Product Type: Pendant
Pendant products
Mounting Location: Ceiling
Ceiling products
Light Distribution: Direct
Direct products



Physical

Shape: Cylinder
Diameter (mm): 45
Diameter (in): 1 3⁄4
Height (mm): 71
Height (in): 2 13⁄16
Max. Overall Height (mm): 2071
Max. Overall Height (in): 81 9⁄16
Weight (kg): 0.26
Diffuser: PMMA - Opal
Fixture Finish: WHI / BLK
see color chart below
Fixture Material: Aluminum
Cable Details: 2000mm/78 3/4" Transparent Cab



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 9
Dimming: Tri-Mode (Non-Dimming and Phase Dimming (120Vac only) and 0-10V Dimming)
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120 - 277
Constant Current (MA): 250



LED

Color Temperature (°K): 2700 / 3000
Max. Delivered Lumen (lm): 708 / 750
CRI: >97 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Compacto Model Number: A7100003-

Specify

Series Description

Compacto is a series of surface ceiling and suspension fixtures characterized by their ultra-compact dimensions, as the name suggests. This versatile range of spotlights offers a variety of configuration options, including a recessed light source, a dark light source, diffusers, and more. Constructed with a painted aluminum body and heat sink, Compacto combines minimalistic design with contemporary aesthetics, ensuring seamless integration into a variety of application settings.

Manufactured in Italy, by Letroh.

Also Available within Series

Compacto by Letroh – 1 3/4″ x 81 7/8″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A7100001- Compacto - Suspension - Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 770lm, 250mA, To be completed with Lens Optic: 20°, 40°, 60° to be ordered separately
Compacto by Letroh – 1 3/4″ x 2 13/16″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural A7100003- Compacto - Suspension - Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 750lm, 250mA, Opal Diffuser
Compacto by Letroh – 1 3/4″ x 4 3/16″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A7200017- Compacto - Surface - Ceiling Semi-Recessed - Adjustable Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 770lm, 250mA, Adjustable, To be completed with Lens Optic: 20°, 40°, 60° to be ordered separately
Compacto by Letroh – 1 3/4″ x 4 1/4″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A7200018- Compacto - Surface - Ceiling Semi-Recessed - Adjustable Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 740lm, 250mA, Adjustable, Lens Optic: 20° and Honeycomb Lens included.
Compacto by Letroh – 1 3/4″ x 4 5/16″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A7200019- Compacto - Surface - Ceiling - Adjustable Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 770lm, 250mA, Adjustable, To be completed with Lens Optic: 20°, 40°, 60° to be ordered separately
Compacto by Letroh – 1 3/4″ x 4 5/16″ Surface, Spots offers LED lighting solutions | Zaneen Architectural A7200020- Compacto - Surface - Ceiling - Adjustable Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 740lm, 250mA, Adjustable, Lens Optic: 20° and Honeycomb Lens included.
Compacto by Letroh – 1 3/4″ x 3 1/8″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A7200021- Compacto - Surface - Ceiling - Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 770lm, 250mA, To be completed with Lens Optic: 20°, 40°, 60° to be ordered separately
Compacto by Letroh – 1 3/4″ x 3 3/8″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A7200022- Compacto - Surface - Ceiling - Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 740lm, 250mA, Lens Optic: 20° and Honeycomb Lens included.
Compacto by Letroh – 1 3/4″ x 2 13/16″ Surface, Ceiling Surface offers LED lighting solutions | Zaneen Architectural A7200023- Compacto - Surface - Ceiling - Spot - 1 x 9W LED, 2700K/3000K, CRI: 97, max 750lm, 250mA, Opal Diffuser

Downloads

Request Files

Compacto by Letroh – 1 3/4″ x 2 13/16″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural

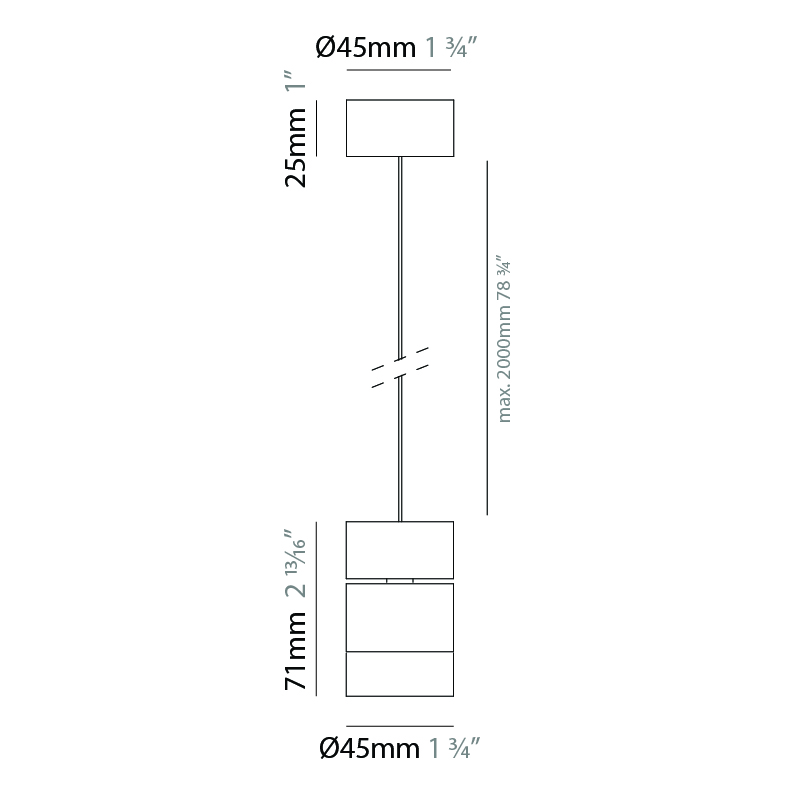

Compacto by Letroh – 1 3/4″ x 2 13/16″ Suspension, Pendant offers LED lighting solutions | Zaneen Architectural / Line art

Ceiling
Direct
Length of suspension cable
Dimmable
Color rendering index

>97 CRI
Color temperature

2700 / 3000
Lumen (luminous flux)

708 / 750
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White BLK - Black
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
