Frisbee - Retrofit Globe Bollard by Side | Zaneen Exterior
Surface
Frisbee - Surface

Downloads Features Finishes Inspiration

General

Reset
Series: Frisbee
Partner: Side
Side products
Division: Exterior
Exterior products
Installation: Surface
Surface products
Product Type: Wall Surface
Wall Surface products
Mounting Location: Wall
Wall products
Light Distribution: Indirect
Indirect products



Physical

Shape: Disc
Diameter (mm): 243
Diameter (in): 9 9⁄16
Height (mm): 243
Depth (mm): 67
Height (in): 9 9⁄16
Depth (in): 2 5⁄8
Weight (kg): 2
Weight (lbs): 4.41
Fixture Finish: WHI / BLK / GRY / BRN
see color chart below
Fixture Material: Aluminum Die Cast



Electrical

Lamp Type: LED (Zhaga Standard)
Input Wattage (W): 16
Dimming: Non-Dimmable
Driver Included: No
Driver Location: Remote
Driver Type: Constant Current - Universal
Driver Class: Class 2
Input Voltage (V): 120
Constant Current (MA): 500
Upon Request: Phase Dimming / 0-10V Dimming



LED

Color Temperature (°K): 3000 / 4000
Max. Delivered Lumen (lm): 850
Nominal Lumen (lm): 1400
CRI: >90 CRI
Efficiency (%): 0.607
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP65
IK Rating: IK10
Bug Rating: B1 U1 G0
Upon Request: Dark Sky Certification





Frisbee Model Number: E10W1084- New

Specify

Series Description

Frisbee is a versatile exterior luminaire designed to deliver precise, controlled illumination with a strong presence. Available as a bollard or surface wall fixture, Frisbee provides consistent, glare-controlled LED performance ideal for pathways, façades, and transition zones where visual comfort and clarity are essential. Its engineered optic ensures uniform light distribution while minimizing spill, making it effective in both functional and accent applications.

Built for long-term outdoor performance, Frisbee combines durable construction with energy-efficient technology and a compact, refined profile. The shared design language across mounting options allows for cohesive installations throughout a project, offering designers flexibility without compromising performance or visual consistency.

Manufactured in Italy, by Side.

Product Components to be ordered separately

Image SKU Description Datasheet
Frisbee by Side – 2 3/8″ x 23 5/8″ , offers high performance and quality material | Zaneen Exterior E10A0078- Frisbee - Pole 600 - 600mm / 23 5/8" -
Frisbee by Side – 2 3/8″ x 35 7/16″ , offers high performance and quality material | Zaneen Exterior E10A0079- Frisbee Pole 900 - 900mm / 35 1/2"

Product Accessories

Image SKU Description Datasheet

Also Available within Series New Product

Frisbee by Side – 9 9/16″ x 2 5/8″ Post, Bollard offers high performance and quality material | Zaneen Exterior E10B0069- Frisbee - Post Light - 243mm / 9 9/16" - 16.4W LED - 3000K / 4000K - 500mA
Frisbee by Side – 9 9/16″ x 9 9/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior E10W1084- Frisbee Surface Wall - 243mm / 9 9/16" - 16W LED - 3000K / 4000K - 850 lm, 500mA, CRI:90
New

Downloads

Request Files

Frisbee by Side – 9 9/16″ x 9 9/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior

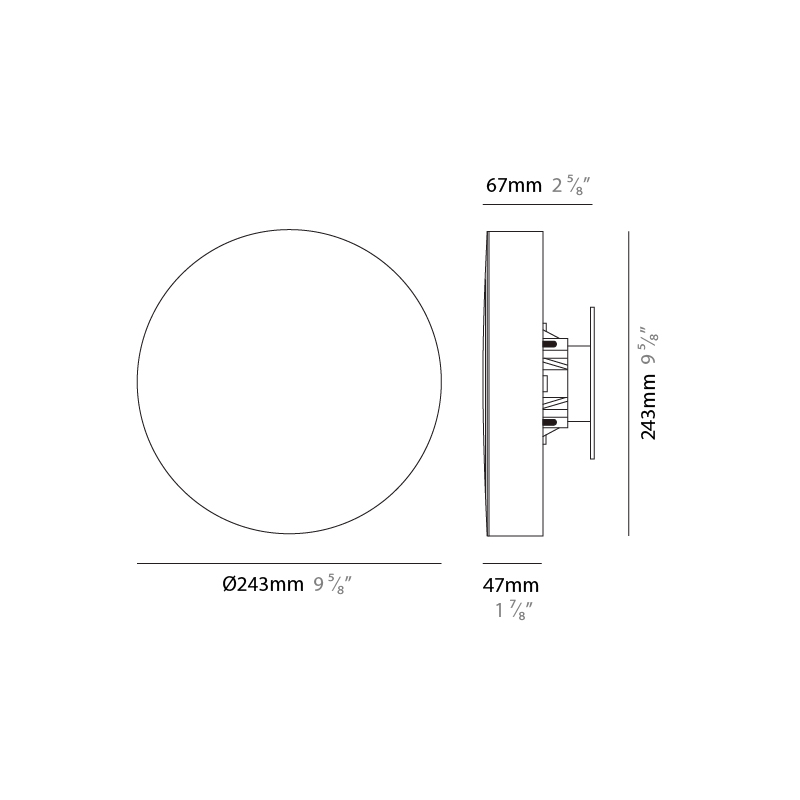

Frisbee by Side – 9 9/16″ x 9 9/16″ Surface, Wall Surface offers high performance and quality material | Zaneen Exterior / Line art

Wall

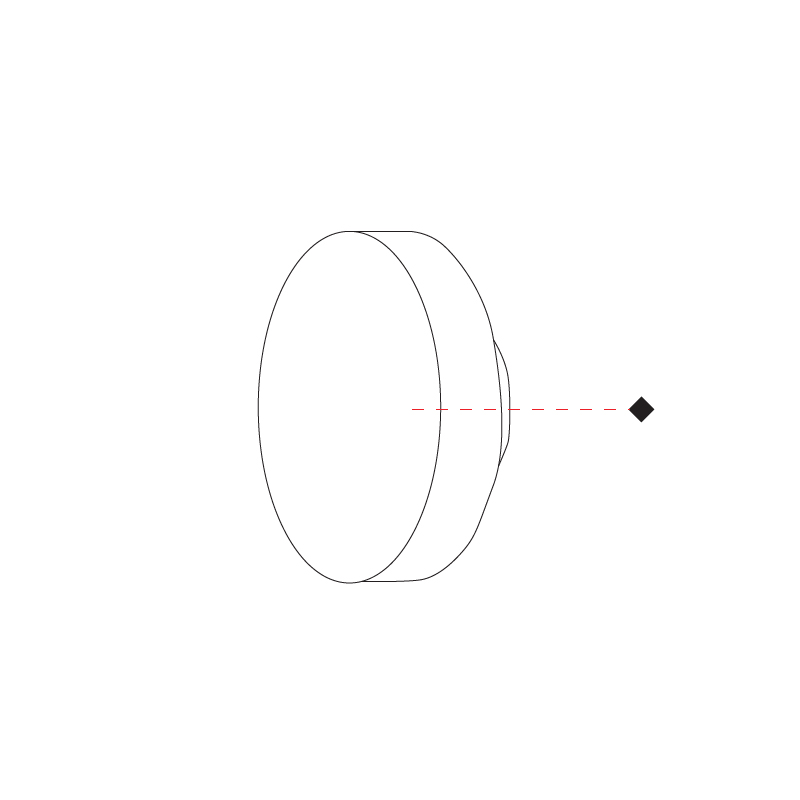

Indirect
Color rendering index

>90 CRI
Color temperature

3000 / 4000
Lumen (luminous flux)

850
Certified for North American Standards
Protected against ingress of dust; protected against jets of water
Protected against 20 joules impact (equivalent to 5.0kg mass dropped from 400mm above the surface)


Fixture Finishes

WHI - White BLK - Black GRY - Gray BRN - Brown
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.

Features
