Lineari 65

CUT STRAIGHT

Get Inspired

Recessed

Downloads Finishes Inspiration

General

Reset

Series: Lineari 65

Partner: Zaneen

Division: Exterior

Installation: Recessed

Product Type: Wall Grazer

Mounting Location: In-Ground

Light Distribution: Uplight

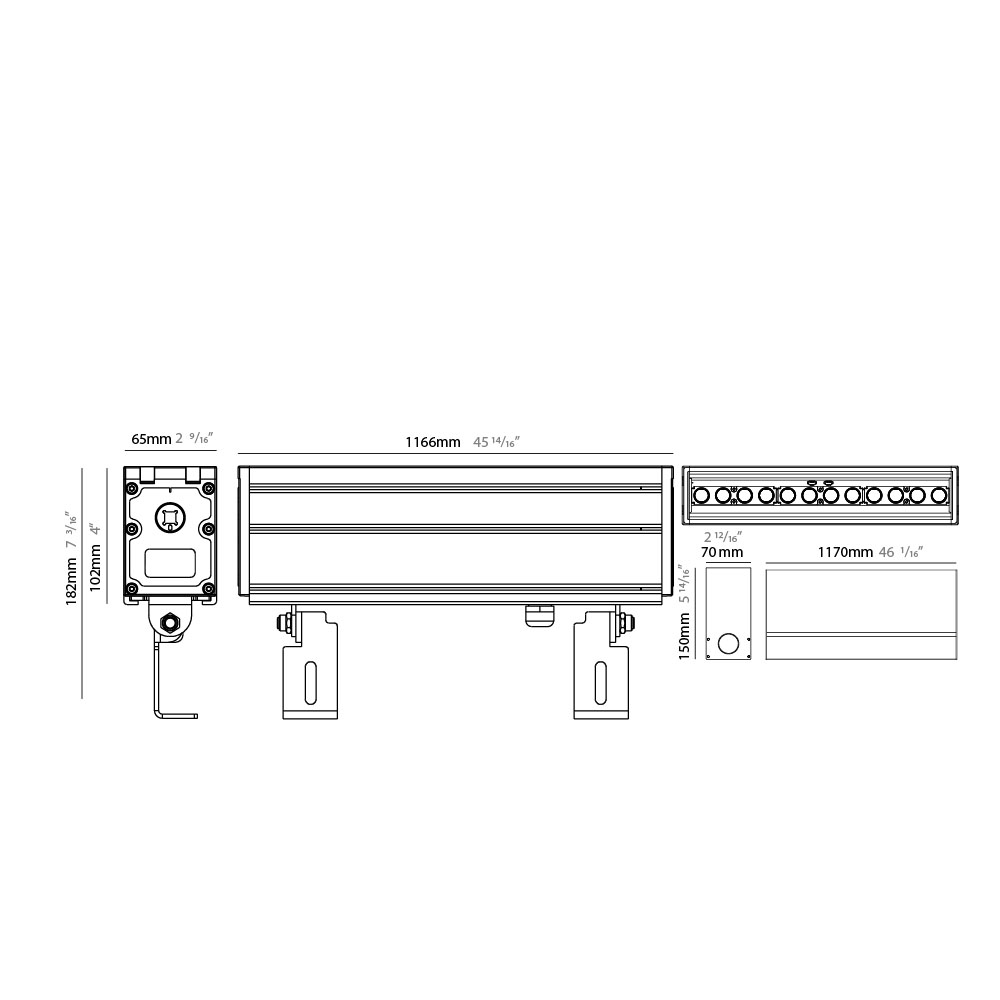

Physical

Shape: Rectangle

Length (mm): 1166

Length (in): 45 ⁷⁄₈

Width (mm): 65

Width (in): 2 ⁹⁄₁₆

Height (mm): 102

Height (in): 4

Weight (kg): 8

Weight (lbs): 17.64

Load Resistance (kg): 2500

Load Resistance (lbs): 5511

Diffuser: Extra clear tempered 6mm

Fixture Finish: BLK

see color chart below

Fixture Material: Extruded Aluminum

Cable Details: IP67 30cm Cable with Easy Lock system

Electrical

Lamp Type: LED

Input Wattage (W): 84

Total Output Wattage (W): 73.7

Dimming: 0-10V Dimming

Driver Included: Yes

Driver Location: Integrated

Driver Type: Constant Current - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Constant Current (MA): 500

LED

Color Temperature (°K): 2700 / 3000 / 4000

Nominal Lumen (lm): 7840

CRI: >82 CRI

Lamp Life (hrs): 100000

Optical

Optic°: 10 / 28 / 40 / 12x32

Adjustability: Tilt ±20°

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP67

IK Rating: IK09

Lineari 65 Model Number: E12I0003-

Specify

Base Model Number:
E12I0003-

Lineari 65 - Recessed - 84W LED - 2700 / 3000 / 4000°K - Extra clear tempered 6mm

Final Option Selection

Color Temperature

Lens Options

Reset

Undo

Reset

Undo

Model Number: E12I0003- -

Get Spec Sheet

Key Features

Recessed in‑ground / surface linear LED wallwash for modern exterior accent and facade lighting.
Advanced optics (10°, 28°, 40°, 12°×32°) with ±20° tilt for precise beam shaping without opening the fixture.
Suitable for high‑traffic or exposed outdoor zones with IP67 and IK09 rating (drive over).

Series Description

Lineari 65 is crafted from extruded high-quality anticorodal hard-anodized aluminum, designed for both in-ground and surface-mounted outdoor applications. With a drive-over rating of 2500KG (5,511 lbs), this robust LED linear flood light is built to withstand heavy use. Available with different optic choices, including wall washing and wall grazing, Lineari 65 allows for precise light control with its tiltable internal optical system, adjustable +/- 20° using an external knob. This adjustment can be made without opening the fixture, preserving its IP67 seal and minimizing light pollution. Offering multiple color temperature options, including RGBW and Tunable White, Lineari 65 is equipped with a DALI dimmable power supply, with DMX available on request. Installation is flexible, with options for surface mounting on brackets or in-ground with a housing box, and features an IP68 cable connector system for added protection.

Manufactured in Toronto, by Zaneen.

Product Components to be ordered separately

Image	SKU	Description	Datasheet
	E12A0007	Slash - Housing Box for 1166mm
	E12A0008	Slash - Adjustable bracket Slash (couple)

Product Accessories

Image	SKU	Description	Datasheet
	E12A0003	Slash - Anti - Glare Louver - 1166mm / 45 7/8"
	E12A0009	Slash / Ranger 30 - Leader cable 5000mm
	E12A0010	Slash / Ranger 30 - Y connection cable 800mm
	E12A0011	Slash / Ranger 30 - Extension cable 1000mm

Also Available within Series

	E12I0000-	Lineari 65 - Drive Over - In-Ground / Surface - 305mm / 12" - 20.89W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
	E12I0001-	Lineari 65 - Driver Over - In-Ground / Surface - 592mm / 25 3/16" - 40.6W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
	E12I0002-	Lineari 65 - Drive Over - In-Ground / Surface - 879mm / 34 5/8" - 63W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
	E12I0003-	Lineari 65 - Drive Over - In-Ground / Surface - 1166mm / 45 7/8" - 84W LED - 2700K / 3000K / 4000K - Optics 10° / 28° / 40° / 12° x 32° - Black Anodized - 0-10Vdc Dimming - Binning free 2 step MacAdam's - Working temperature (-)20°C to 50°C - Photo biological risk RG0 / RG1 - Max. temperature (at Ta 25°C) 65°C
