Raggio | Zaneen Design
Suspension
Raggio - Suspension

Downloads Finishes Inspiration

General

Reset
Series: Raggio
Partner: Icone
Icone products
Division: Design
Design products
Installation: Suspension
Suspension products
Product Type: Chandelier
Chandelier products
Mounting Location: Ceiling
Ceiling products



Physical

Shape: Abstract
Diameter (mm): 950
Diameter (in): 37 3⁄8
Diffuser: PMMA - Opal
Fixture Finish: WHI / SMS
see color chart below
Fixture Material: Glass / Aluminum



Electrical

Lamp Type: LED
Input Wattage (W): 28.8
Total Output Wattage (W): 24.5
Driver Included: No
Driver Location: Remote
Driver Type: Constant Voltage - Universal
Driver Class: Class 2
Housing: ENCP1 ENCP8
Input Voltage (V): 120 - 277
Output Voltage (V): 24



LED

Color Temperature (°K): 2700 / 3000
Nominal Lumen (lm): 3504
CRI: >90 CRI
Lamp Life (hrs): 50000



Optical



Ratings and Certifications

Certified By: Certified for North American Standards
IP rating: IP20





Raggio Model Number: D41076-

Specify

Key Features
  • Unique sculptural design.
  • Soft omnidirectional glow offering smooth and uniform illumination.

Series Description

Raggio is a suspension light that highlights creativity through simplicity and innovation. Its slender silhouette and lightweight design contradicts its complex inner workings, offering a unique lighting experience unlike any other. Echoing the silhouette of iconic Dutch chandeliers from past decades, Raggio surprises with its modern twist and hidden complexities. Crafted entirely from aluminum with frosted glass diffusers, its ultra-thin arms double as electrical conductors, eliminating visible wires for a seamless aesthetic and uniform 360° light distribution. When illuminated, Raggio transforms spaces with a mesmerizing play of light. Its presence creates a halo effect, where only the illuminated ends are visible, floating effortlessly in darkness. This magical ambiance draws focus to the luminous points while the structure itself dissolves into the surrounding space.

Manufactured in Italy, by Icone.

Product Components to be ordered separately

Image SKU Description Datasheet
DND0400024EV ERP - VLM40W-24 - Non-dimming - 40W - 24Vdc - 120 / 277Vac - LED power supply -Used with ENCP12 -Available with IP68-Outdoor Rated -ENCP20, ENCP22
DVO0400024MB MeanWell - HLG-40H-24B - 1-10Vdc / Resistance / 10V PWM Dimming - 23.98-40W - 24Vdc - 120-277Vac - LED power supply -Used with ENCP8 -Available with IP68 – Outdoor Rated – Enclosure TBD
ENCP1 Empty Metal Enclosure for Driver - IP20 - Indoor Rated
ENCP8 Empty Metal Enclosure for Driver - IP20 - Indoor Rated

Also Available within Series

Raggio by Icone – 53 1/8″ Suspension, Chandelier offers quality European interior lighting design | Zaneen Design D41074- Raggio - Suspension, 1350mm, 2 Tier, 57.7WLED, 2700K/3000K, 7000lm, CRI:90
Raggio by Icone – 53 1/8″ Suspension, Chandelier offers quality European interior lighting design | Zaneen Design D41075- Raggio - Suspension, 1350mm/53 1/8", 28.8WLED, 2700K/3000K, 3504lm, CRI:90
Raggio by Icone – 37 3/8″ Suspension, Chandelier offers quality European interior lighting design | Zaneen Design D41076- Raggio - Suspension, 950mm/37 3/8", 28.8WLED, 2700K/3000K, 3504lm, CRI:90

Downloads

Request Files

Raggio by Icone – 37 3/8″ Suspension, Chandelier offers quality European interior lighting design | Zaneen Design

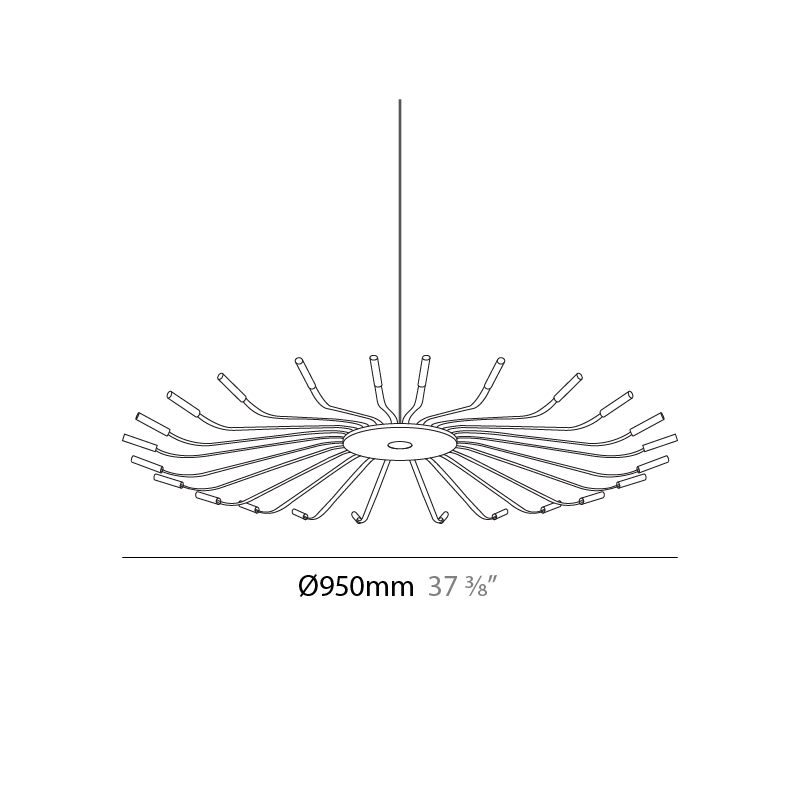

Raggio by Icone – 37 3/8″ Suspension, Chandelier offers quality European interior lighting design | Zaneen Design / Line art

Ceiling
Color rendering index

>90 CRI
Color temperature

2700 / 3000
Blown glass using traditional methods by master glass blower
Certified for North American Standards
Protected against ingress of solid bodies greater than 12.5mm (finger)


Fixture Finishes

WHI - White SMS - Smoke Steel
Note: the color samples are digitally reproduced and may not accurately depict the actual colors.
