Shanghai

A TIMELESS GAME

Get Inspired

Shanghai

A TIMELESS GAME

Get Inspired

Shanghai

A TIMELESS GAME

Get Inspired

Post

Downloads Finishes Inspiration Video

General

Reset

Series: Shanghai

Partner: Platek

Division: Exterior

Installation: Post

Product Type: Bollard - Garden

Mounting Location: Above Ground

Light Distribution: Direct

Physical

Shape: Abstract

Diameter (mm): 25

Diameter (in): 1

Height (mm): 800, 1200, 1500

Height (in): 31 ¹⁄₂, 47 ¹⁄₄, 59 ¹⁄₁₆

Extension (mm): 350

Extension (in): 13 ³⁄₄

Screws: No visible screws

Fixture Finish: ANT / BLK / BRZ / COR / FGR / GRY / RSB / WHI

see color chart below

Fixture Material: Aluminum

Electrical

Lamp Type: LED

Input Wattage (W): 7.3

Total Output Wattage (W): 6.4

Dimming: Non-Dimming / Phase Dimming / 0-10V Dimming / DALI Dimming

Driver Included: No

Driver Location: Remote

Driver Type: Constant Voltage - Universal

Driver Class: Class 2

Input Voltage (V): 120 - 277

Output Voltage (V): 24

Upon Request: SC power - DPH0300024ST (Phase Dimming)

LED

Color Temperature (°K): 2700 / 3000

Max. Delivered Lumen (lm): 530

Nominal Lumen (lm): 700

CRI: >90 CRI

Lamp Life (hrs): 60000

Optical

Optic°: 120

Ratings and Certifications

Certified By: Certified for North American Standards

IP rating: IP65

IK Rating: IK05

Shanghai 3 matching products

	E9B243-	Shanghai Bollard - H.1,200mm/47 1/4", LED 6.6W, 2700K/ 3000K, 530lm, cir>80, IP65, 28° -
	E9B244-	Bollard - H.1,500mm/59 1/16", LED 6.6W, 2700K/ 3000K, 530lm, cir>80, IP65, 28° - (Recessed Box Required)
	E9B274-	Shanghai Bollard - H.800mm/31 1/2", LED 6.6W, 2700K/ 3000K, 530lm, cir>80, IP65, 28° - (Recessed Box Required)

Series Description

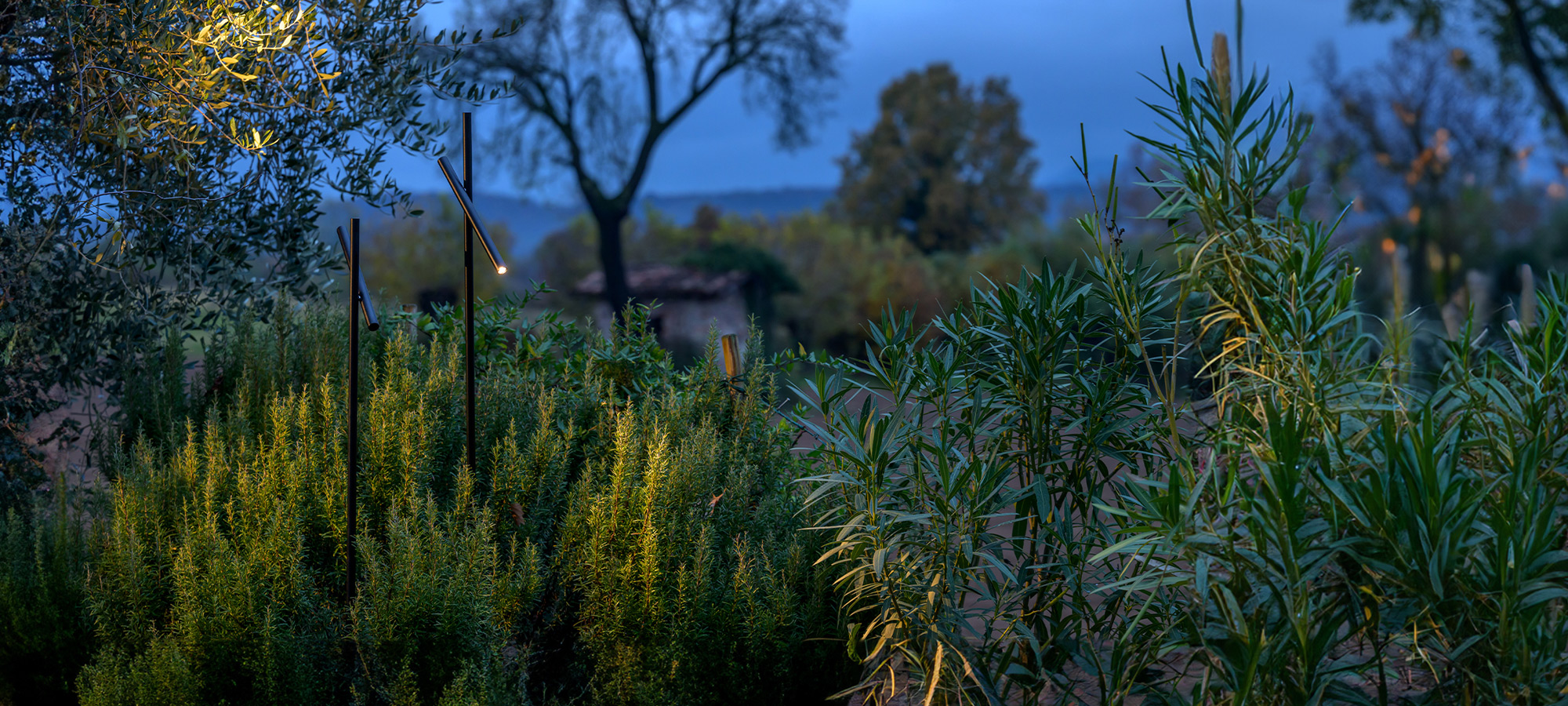

Shanghai is a bollard that features a stunning fusion of design and functionality, inspired by the artful play of lines and the engaging dynamics of the timeless game of pick-up sticks. The Shanghai collection captures the essence of contemporary aesthetics through a series of support rods delicately holding slender light fixtures. The light fixtures are ingeniously adjustable up to 180°, allowing you to create personalized lighting scenarios and adapt to the ever-changing ambience of your outdoor space. The Shanghai metal lamps are available in three different heights, offering a range of possibilities to cater to various preferences and spatial requirements.

Manufactured in Italy, by Platek.
